Union Switch and Signal Company Relays

photo courtesy of Zachary Gillihan Model/Style:L-10
Description:D.C. Relay
Type:
Size:1
Voltage:10 DC
Resistance or Cycles:240 Ohms
Other:Slow Release Relay

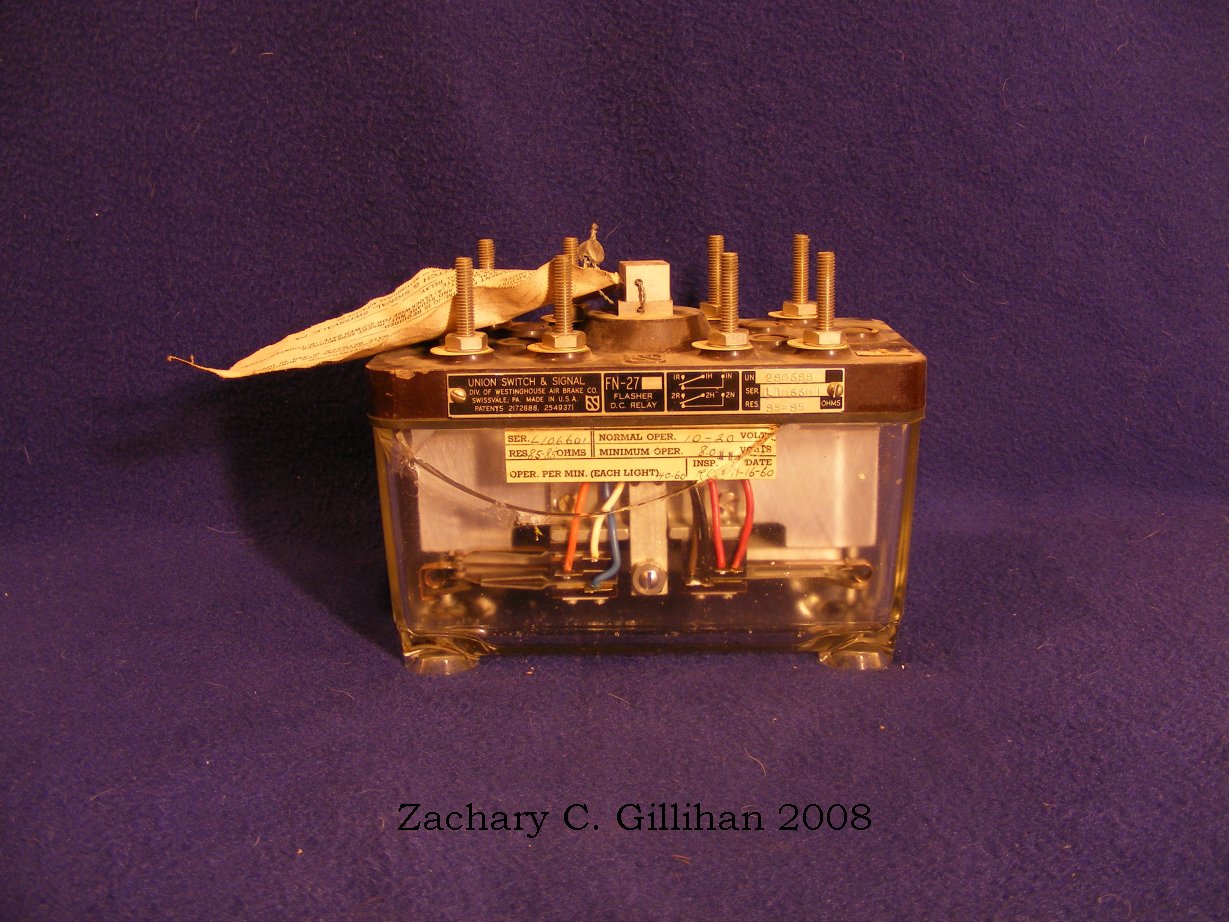

 photo courtesy of Zachary Gillihan Model/Style:FN-27
Description:D.C. Flasher Relay
Type:
Size:2
Voltage:10-20 DC
Resistance or Cycles:85-85 Ohms
Other:Wayside Flasher Relay
photo courtesy of Zachary Gillihan Model/Style:ANL-2
Description:
Type:
Size:2
Voltage:110 AC
Resistance or Cycles:60 Cycles
Other:Lightout Relay, Power Transfer Relay, or Change-over Relay
 photo courtesy of Zachary Gillihan Model/Style:SLV13
Description:Vane Line Relay
Type:
Size:4
Voltage:110 AC
Resistance or Cycles:60 Cycles
Other:
photo courtesy of Zachary Gillihan Model/Style:Or-11
Description:Overload Relay
Type:
Size:2
Voltage:10 DC
Resistance or Cycles:
Other:Protection for D.C. Switch Machines
 photo courtesy of Zachary Gillihan Model/Style:DM
Description:Code Transmitter Relay
Type:
Size:
Voltage:8-12 DC
Resistance or Cycles:
Other:180 Code
photo courtesy of Zachary Gillihan Model/Style:OR-11
Description:Overload Relay
Type:
Size:2
Voltage:0.90 DC
Resistance or Cycles:
Other:Protection for D.C. Switch Machines
 photo courtesy of Zachary Gillihan Model/Style:DT-10
Description:Time Element Relay
Type:
Size:
Voltage:10 DC
Resistance or Cycles:
Other:0.5-6 Min

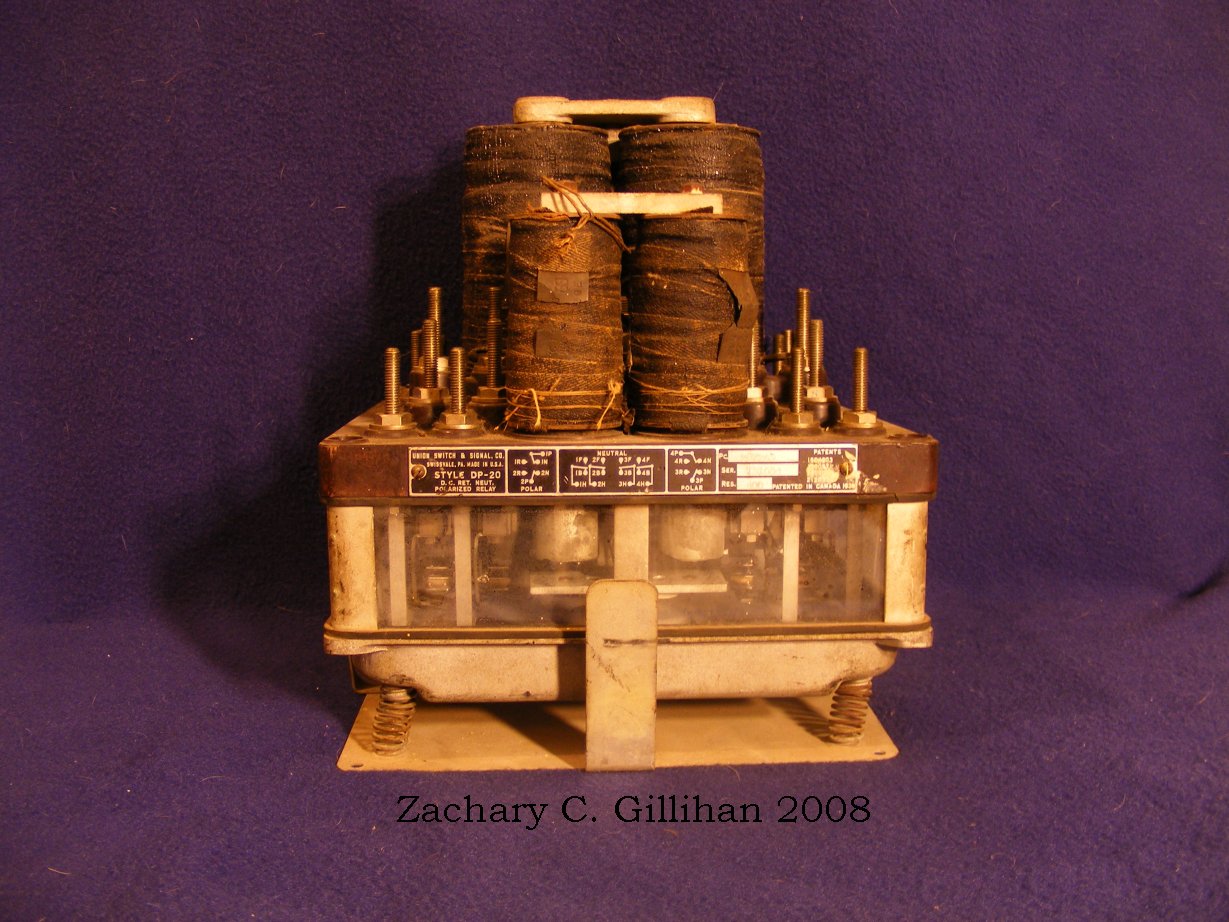

photo courtesy of Zachary Gillihan Model/Style:DP-20
Description:D.C. Ret Neut Polarized Relay
Type:
Size:
Voltage:10 DC
Resistance or Cycles:400 Ohms
Other:Repeater Relay
 photo courtesy of Zachary Gillihan Model/Style:15
Description:Vane Relay
Type:
Size:4
Voltage:110 AC
Resistance or Cycles:60 Cycles
Other:
photo courtesy of Zachary Gillihan Model/Style:TV-30
Description:Vane Relay
Type:
Size:
Voltage:110 AC
Resistance or Cycles:100 Cycles
Other:
 photo courtesy of Zachary Gillihan Model/Style:DN-22 P
Description:Power Transfer Relay
Type:
Size:2
Voltage:10 AC *
Resistance or Cycles:125-125 Ohms
Other:*-Indicates rectifer installed.

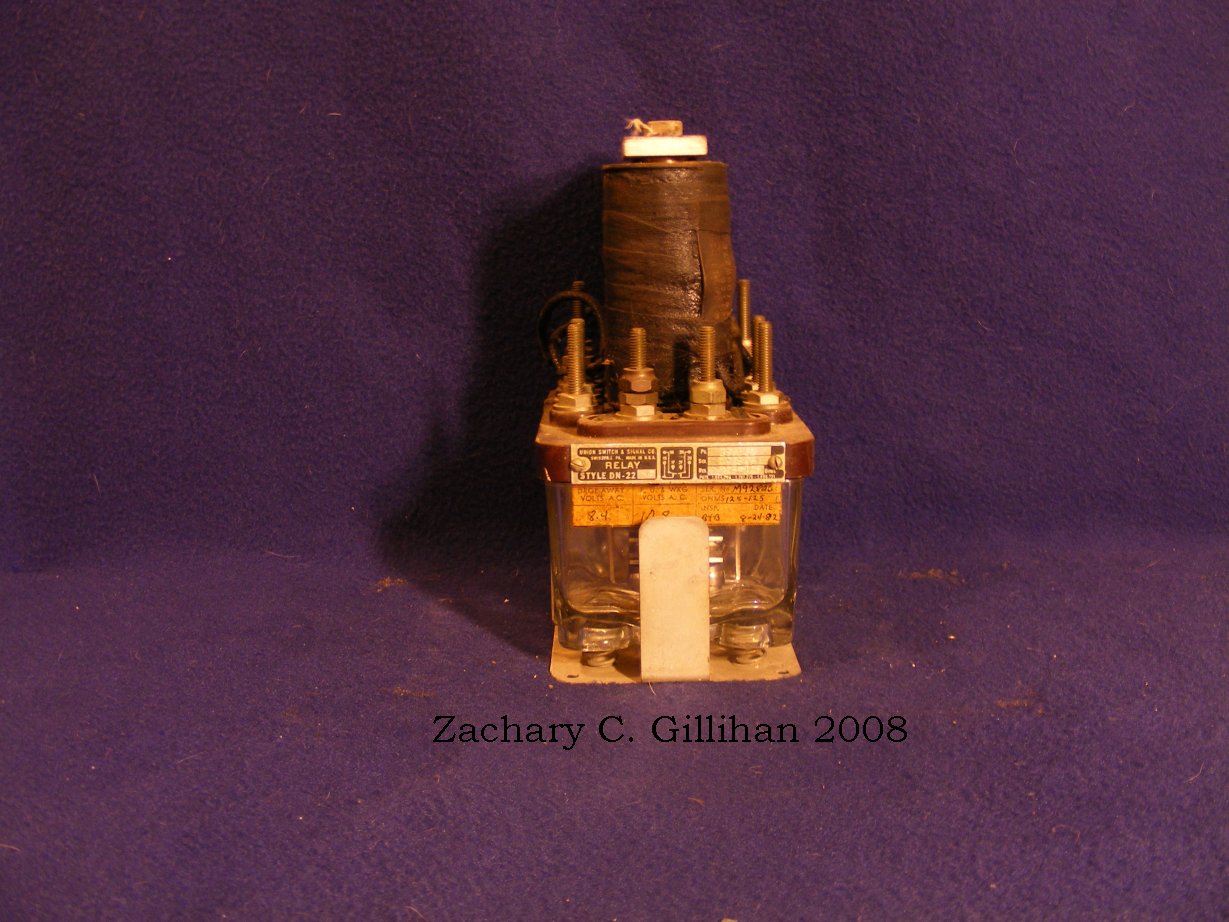

photo courtesy of Zachary Gillihan Model/Style:DN-22 P
Description:D.C. Neutral Relay
Type:
Size:2
Voltage:10 DC
Resistance or Cycles:125-125 Ohms
Other:
 photo courtesy of Zachary Gillihan Model/Style:DN-22 BH
Description:D.C. Biased Neutral High Relay
Type:
Size:2
Voltage:10 DC
Resistance or Cycles:0.5 Ohms
Other:
photo courtesy of Zachary Gillihan Model/Style:DNL-4
Description:
Type:
Size:2
Voltage:10 DC
Resistance or Cycles:78 Ohms
Other:Approach Light Relay

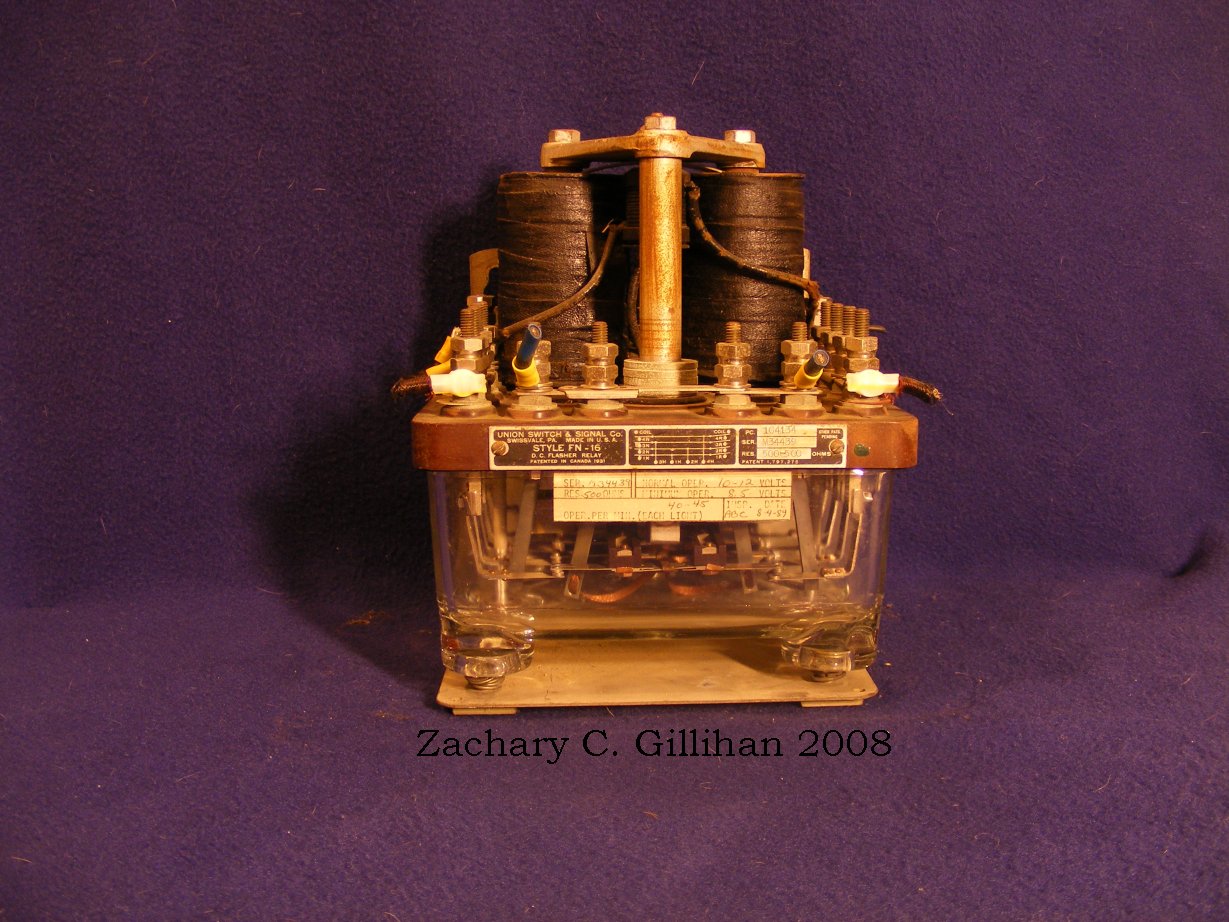

 photo courtesy of Zachary Gillihan Model/Style:FN-16
Description:Flasher Relay
Type:
Size:4
Voltage:10-12 DC
Resistance or Cycles:500-500 Ohms
Other:Highway Crossing Flasher
photo courtesy of Zachary Gillihan Model/Style:13
Description:Neutral Relay
Type:
Size:4
Voltage:10 DC
Resistance or Cycles:670 Ohms
Other:
 photo courtesy of Zachary Gillihan Model/Style:13
Description:Neutral Relay
Type:
Size:4
Voltage:10 DC
Resistance or Cycles:500 Ohms
Other:
photo courtesy of Zachary Gillihan Model/Style:DP-25
Description:Polarized D.C. Relay
Type:
Size:
Voltage:10 DC
Resistance or Cycles:450 Ohms
Other:

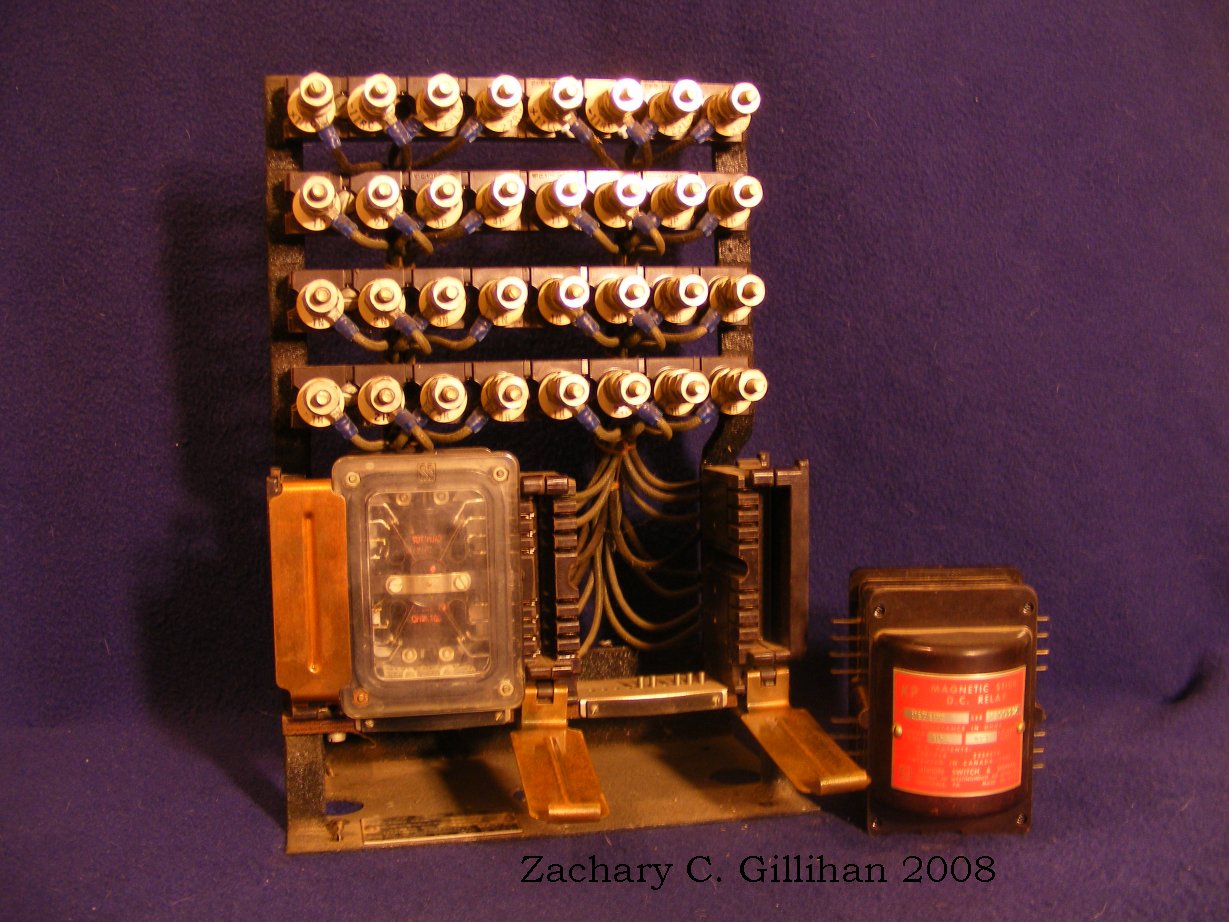

 photo courtesy of Zachary Gillihan Model/Style:KP
Description:Dual KP Relay Rack
Type:
Size:
Voltage:10 DC
Resistance or Cycles:105 Ohms per Coil
Other:CTC
photo courtesy of Zachary Gillihan Model/Style:502 Field Storage Unit
Description:Field Storage Unit "Pup"
Type:502 A
Size:
Voltage:
Resistance or Cycles:
Other:For 502A CTC Operations.
 photo courtesy of Zachary Gillihan Model/Style:Centrifugal Frequency
Type:2 Element
Size:6
Voltage:Local 110V, Track .23V
Resistance or Cycles:60 Cycles
Other: Broken
photo courtesy of Zachary Gillihan Model/Style:DM
Description:Code Transmitter
Type:
Size:
Voltage:8-12 DC
Resistance or Cycles:
Other:75 Code
 photo courtesy of Zachary Gillihan Model/Style:P-4
Description:
Type:
Size:2
Voltage:10 DC
Resistance or Cycles:0.3 Ohms
Other:Detachable Top Plate Attached
photo courtesy of Zachary Gillihan Model/Style:506 Field Line Coding Storage Unit
Description:506 A Storage Unit
Type:L
Size:
Voltage:
Resistance or Cycles:
Other:Front
 photo courtesy of Zachary Gillihan Model/Style:506 Field Line Coding Storage Unit
Description:506 A Storage Unit
Type:L
Size:2
Voltage:
Resistance or Cycles:
Other:Side

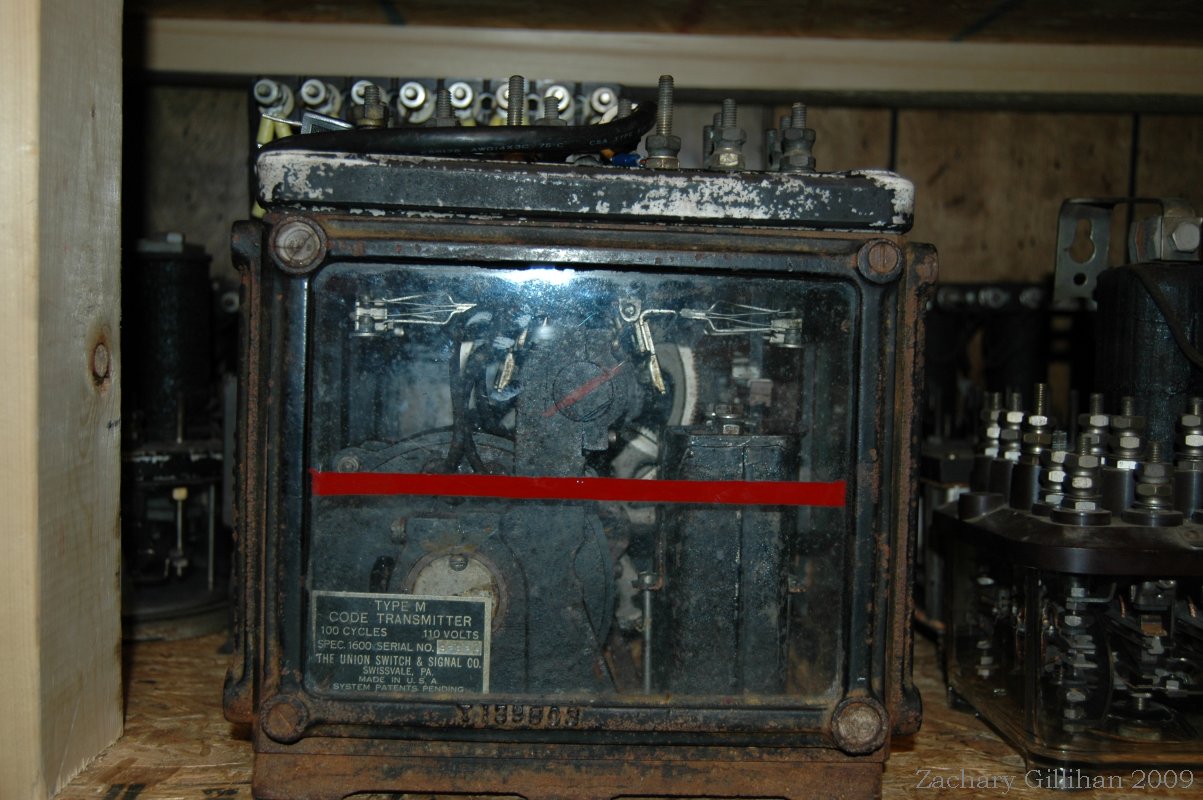

photo courtesy of Zachary Gillihan Model/Style:M
Description:Code Transmitter
Type:M
Size:
Voltage:110VAC
Resistance or Cycles:100 Cyc
Other:Special Relay
Cam 1- 75 Code
Cam 2- 120 Code
Cam 3- 180 Code 		photo courtesy of Zachary Gillihan Model/Style:Centrifugal Frequency
Type:2 Element
Size:6
Voltage:Local 110V, Track .23V
Resistance or Cycles:60 Cycles
Other: Works
