L&N
~
Rules
Of The
Operating
Department
~
Effective July 1, 1966


photo courtesy of Zachary Gillihan Book Cover

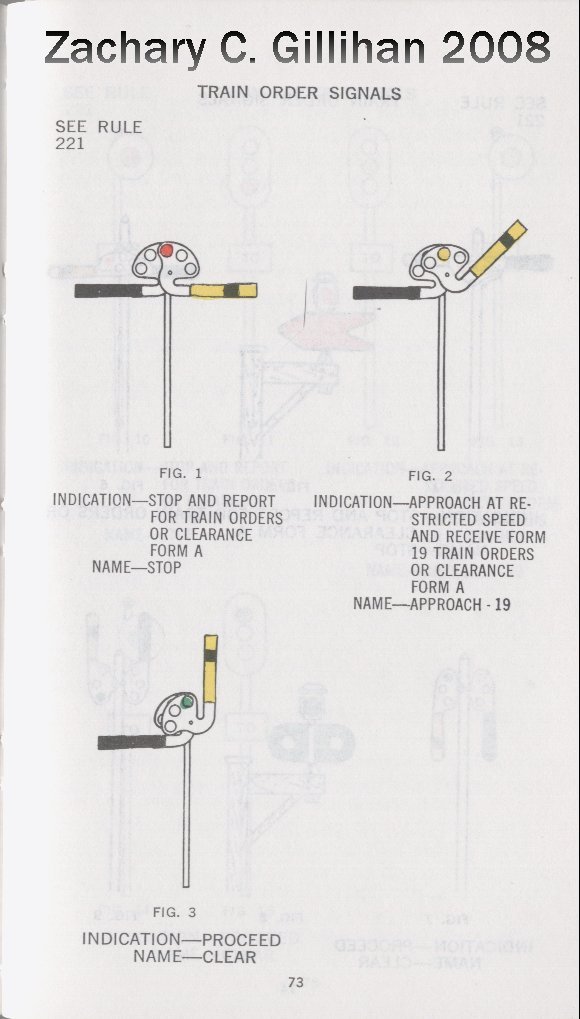

photo courtesy of Zachary Gillihan Page 73
Train Order Signals

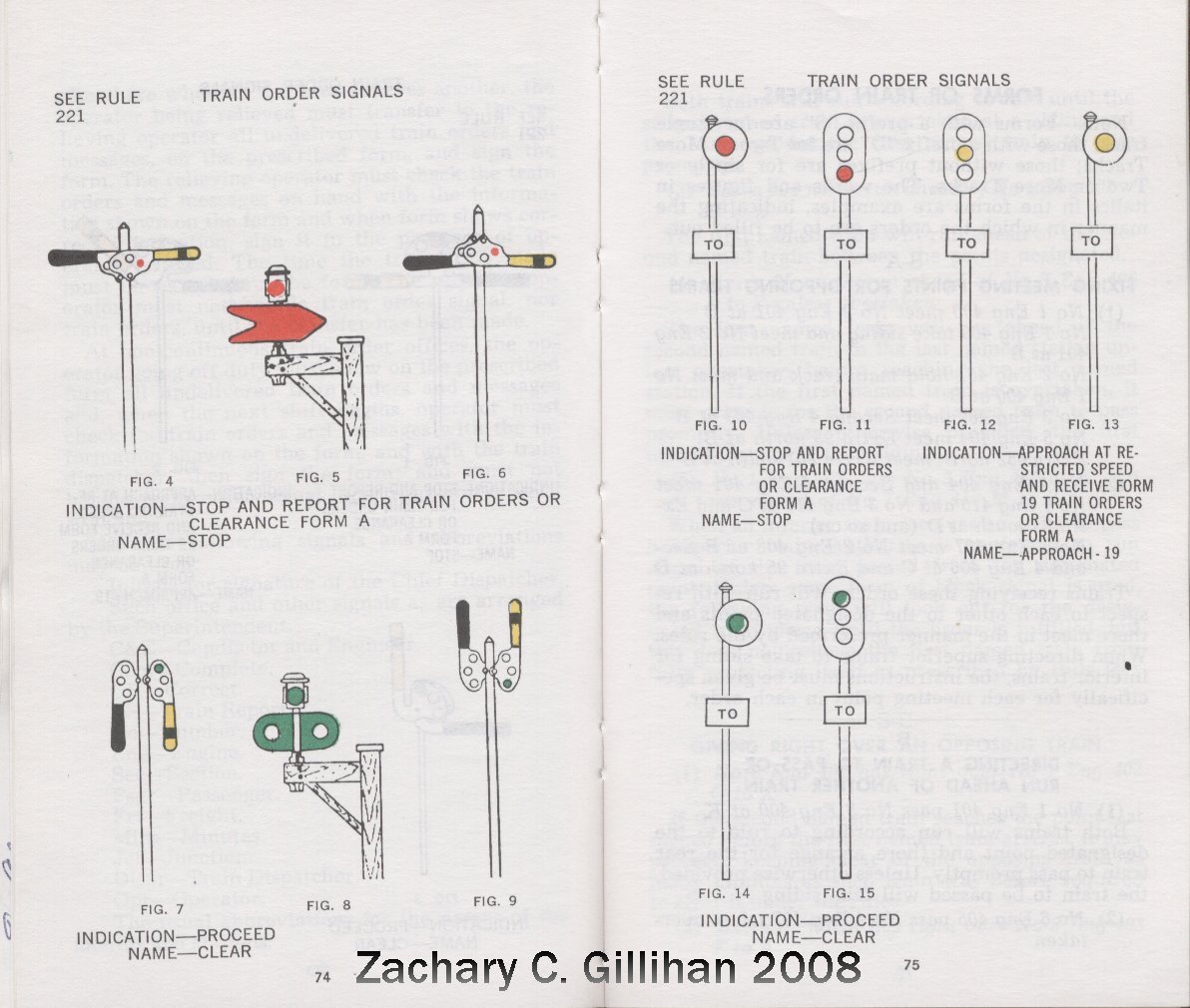

photo courtesy of Zachary Gillihan Page 74
Train Order Signals
Page 75
Train Order Signals

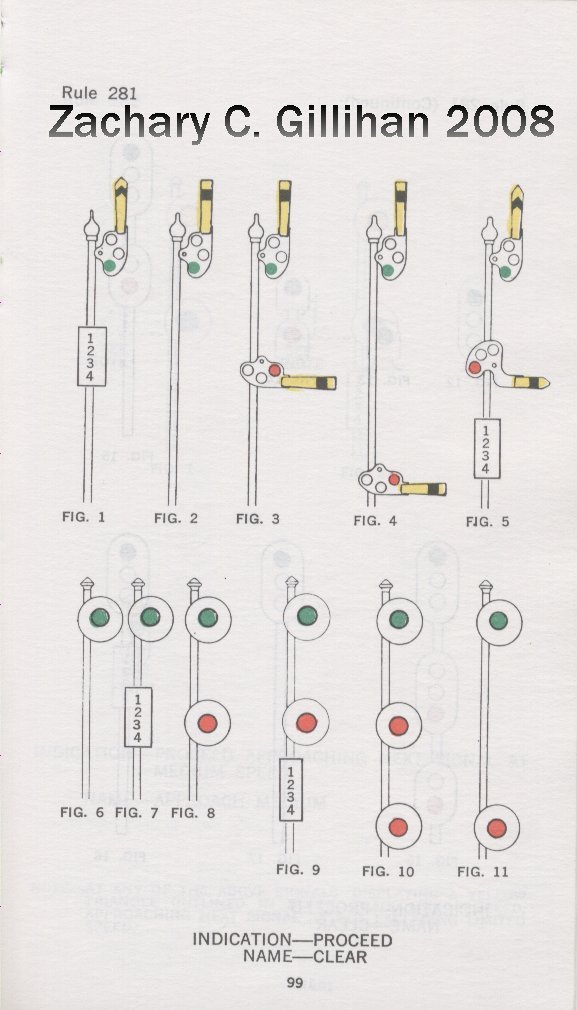

photo courtesy of Zachary Gillihan Page 99
Rule 281, Indication-Clear / Name-Clear

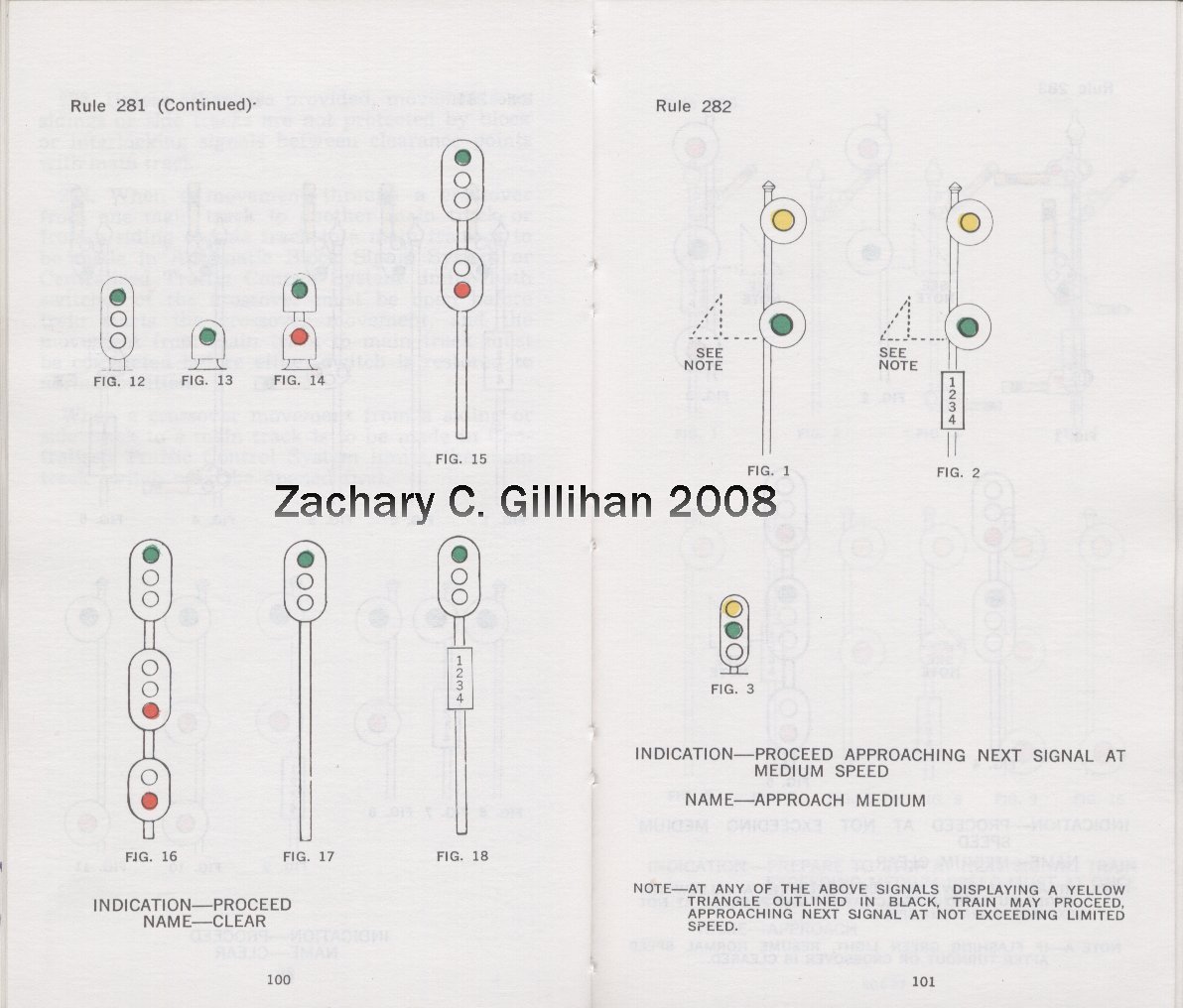

photo courtesy of Zachary Gillihan Page 100
Rule 281, Indication-Clear / Name-Clear
Page 101
Rule 282, Indication-Proceed Approaching Next Signal at Med Speed / Name-Approach Medium

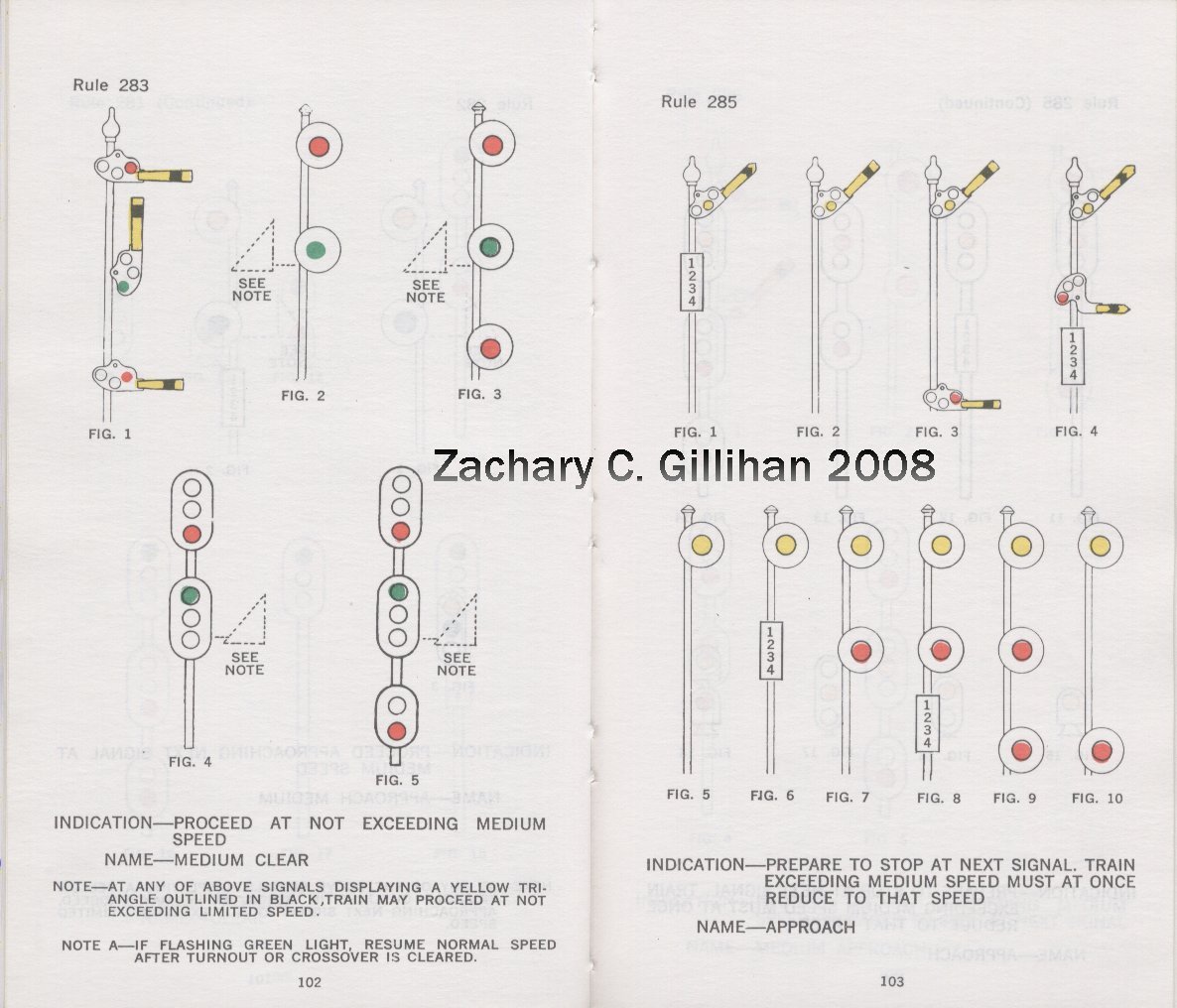

photo courtesy of Zachary Gillihan Page 102
Rule 283, Indication-Proceed at Not Exceeding Med Speed / Name-Medium Clear
Page 103
Rule 285, Indication-Prepare to Stop at Next Signal. / Name-Approach

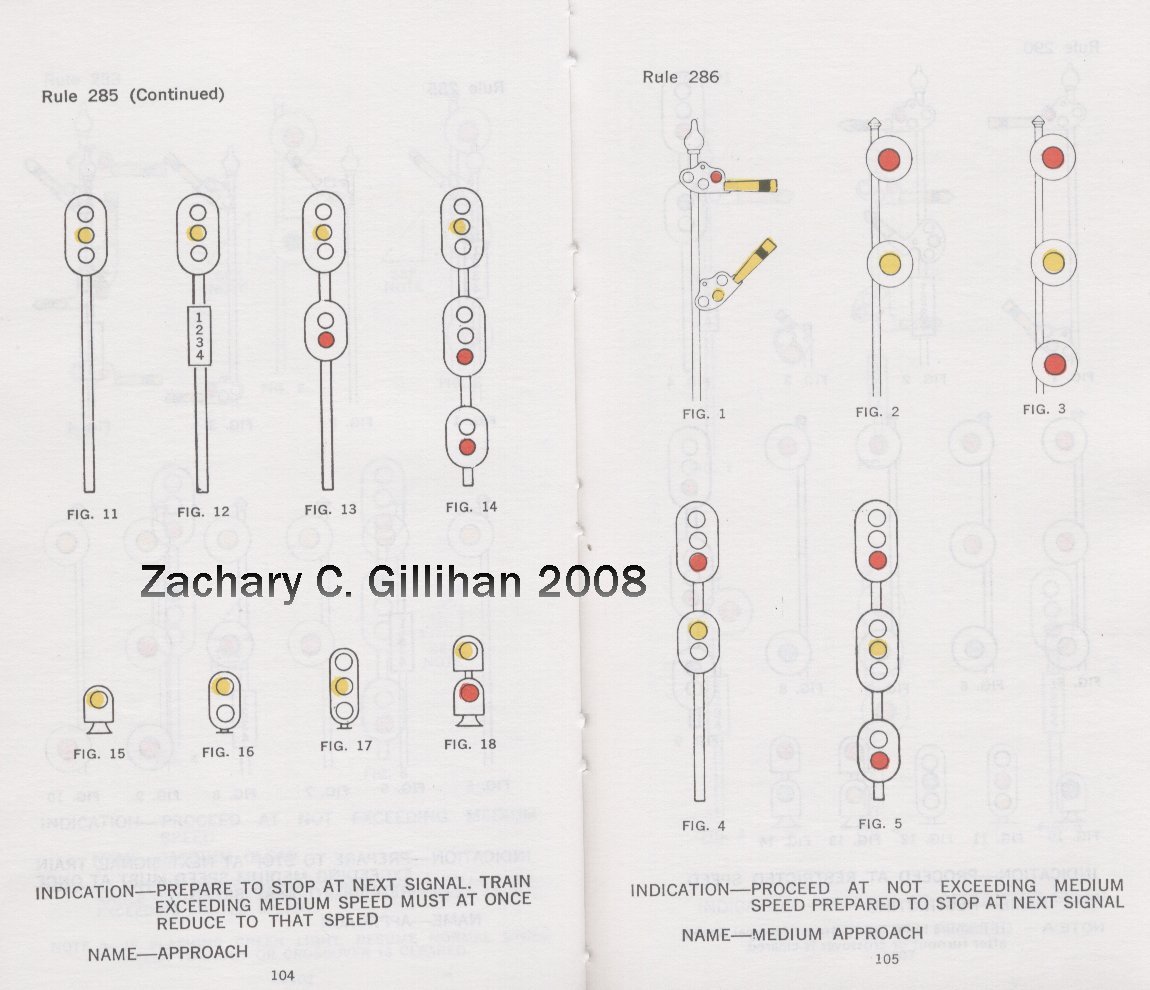

photo courtesy of Zachary Gillihan Page 104
Rule 285, Indication-Prepare to Stop at Next Signal. / Name-Approach
Page 105
Rule 286, Indication-Proceed at Not Exceeding Med Speed Prepared to Stop at Next Signal / Name-Medium Approach

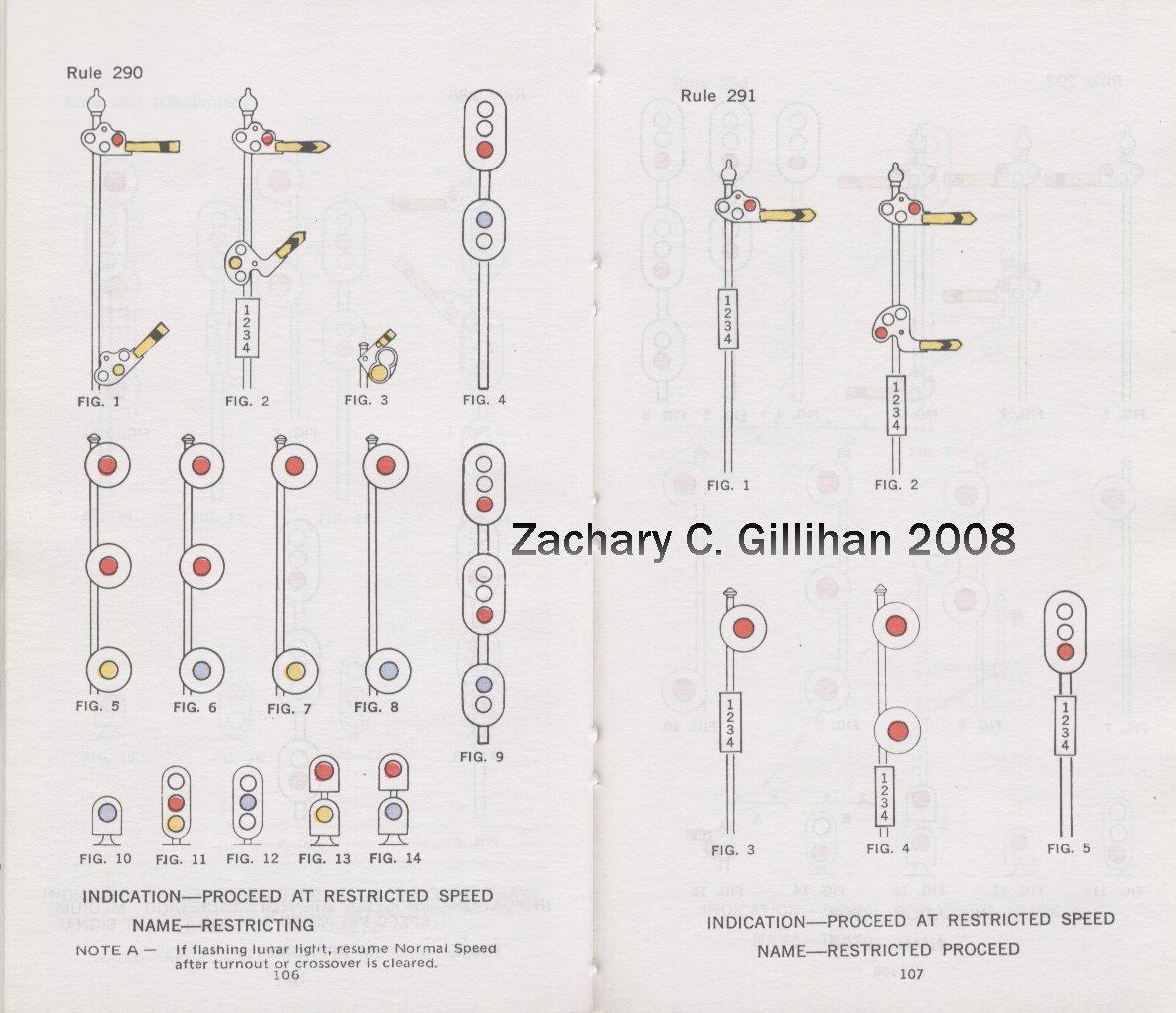

photo courtesy of Zachary Gillihan Page 106
Rule 290, Indication-Proceed at Restricted Speed. / Name-Restricting
Page 107
Rule 291, Indication-Proceed at Restricted Speed. / Name-Restricted Proceed

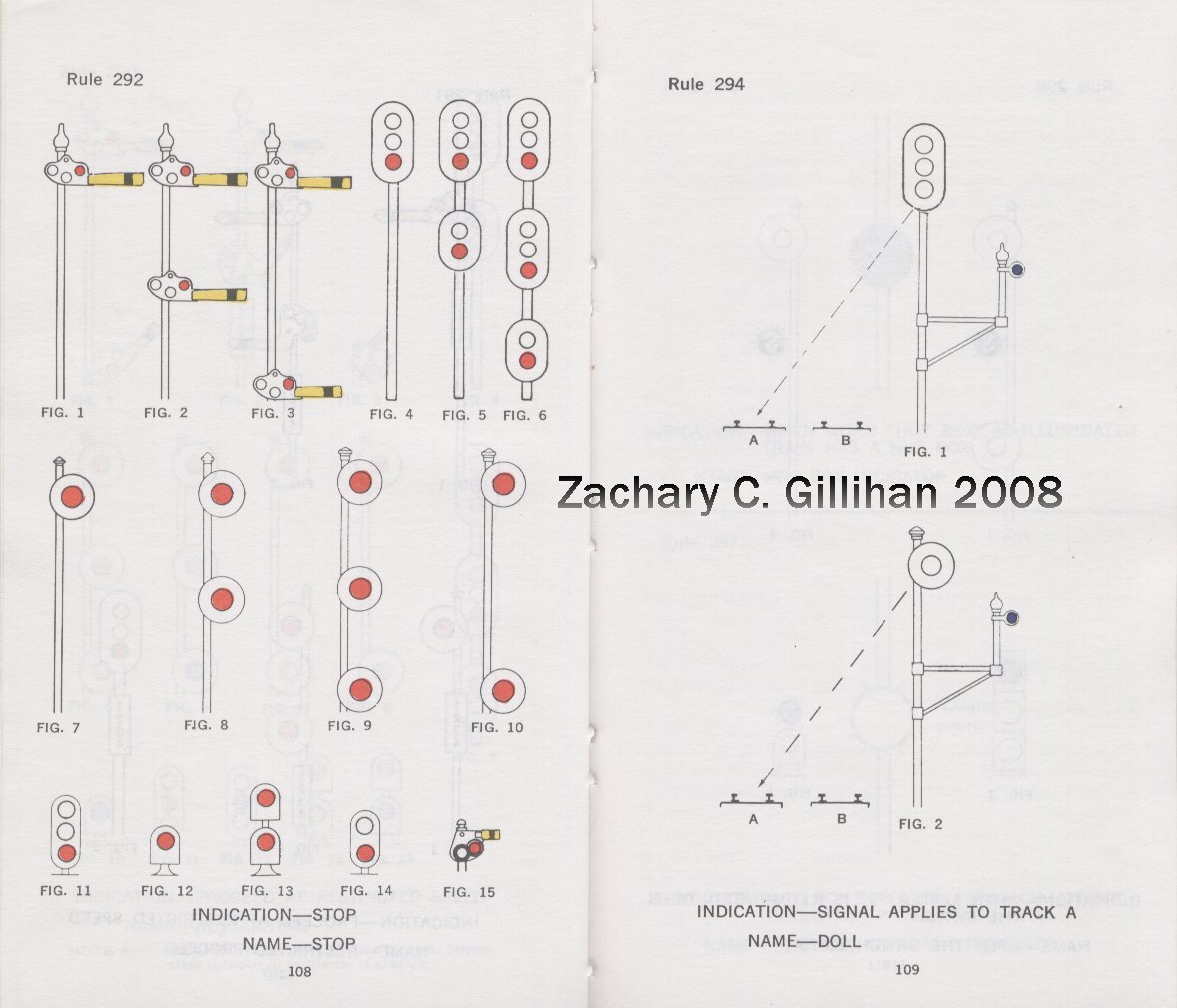

photo courtesy of Zachary Gillihan Page 108
Rule 292, Indication-Stop. / Name-Stop
Page 109
Rule 294, Indication-Signal Applies to Track A. / Name-Doll

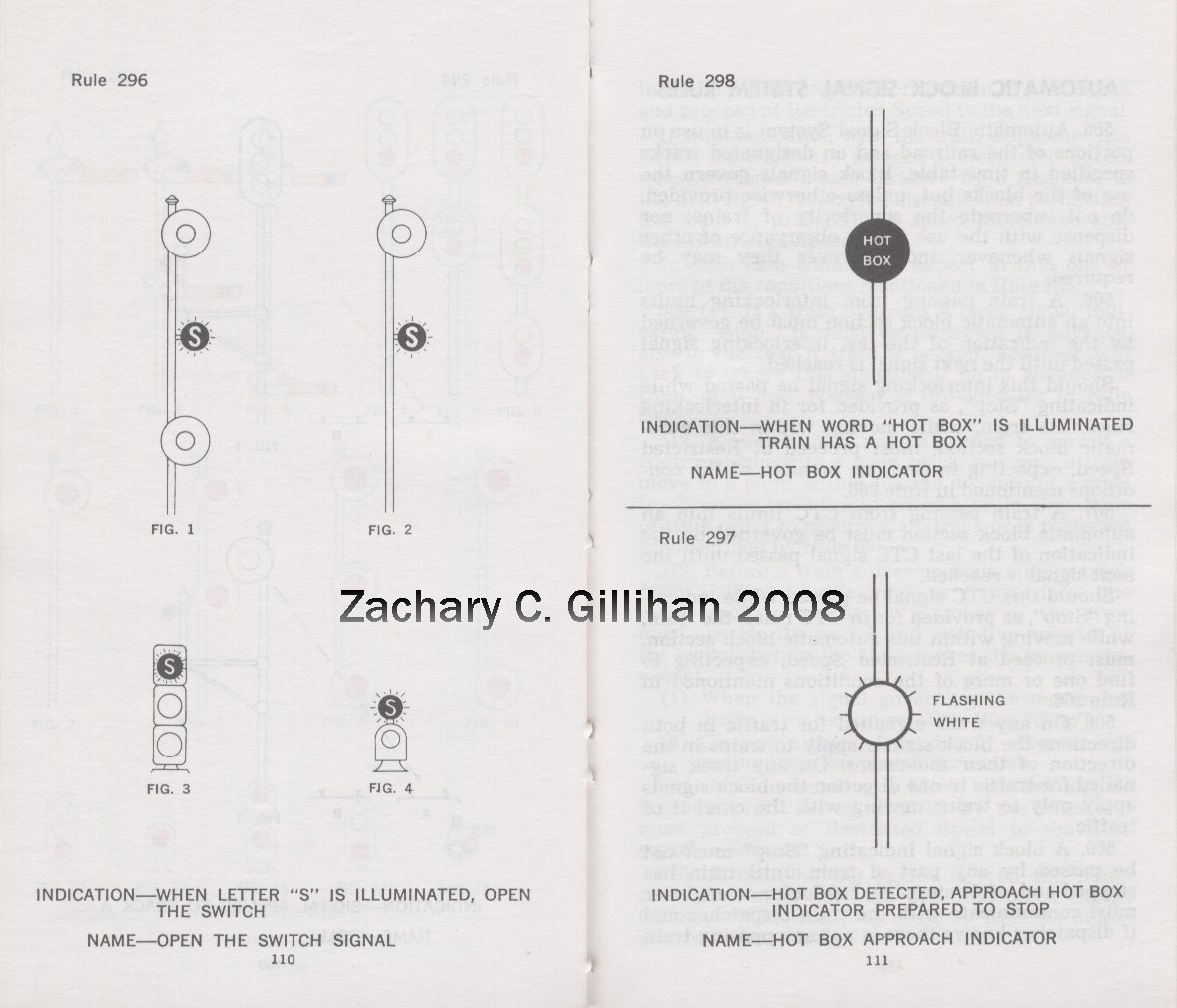

photo courtesy of Zachary Gillihan Page 110
Rule 296, Indication-when Letter"S" is Illuminated, Open the Switch. / Name-Open the Switch Signal
Page 111
Rule 298, Indication-Hot Box Detected, Approach Hot Box Indicator Prepared to Stop. / Name-Hot Box Approach Indicator
