General Railway Signal Company Relays

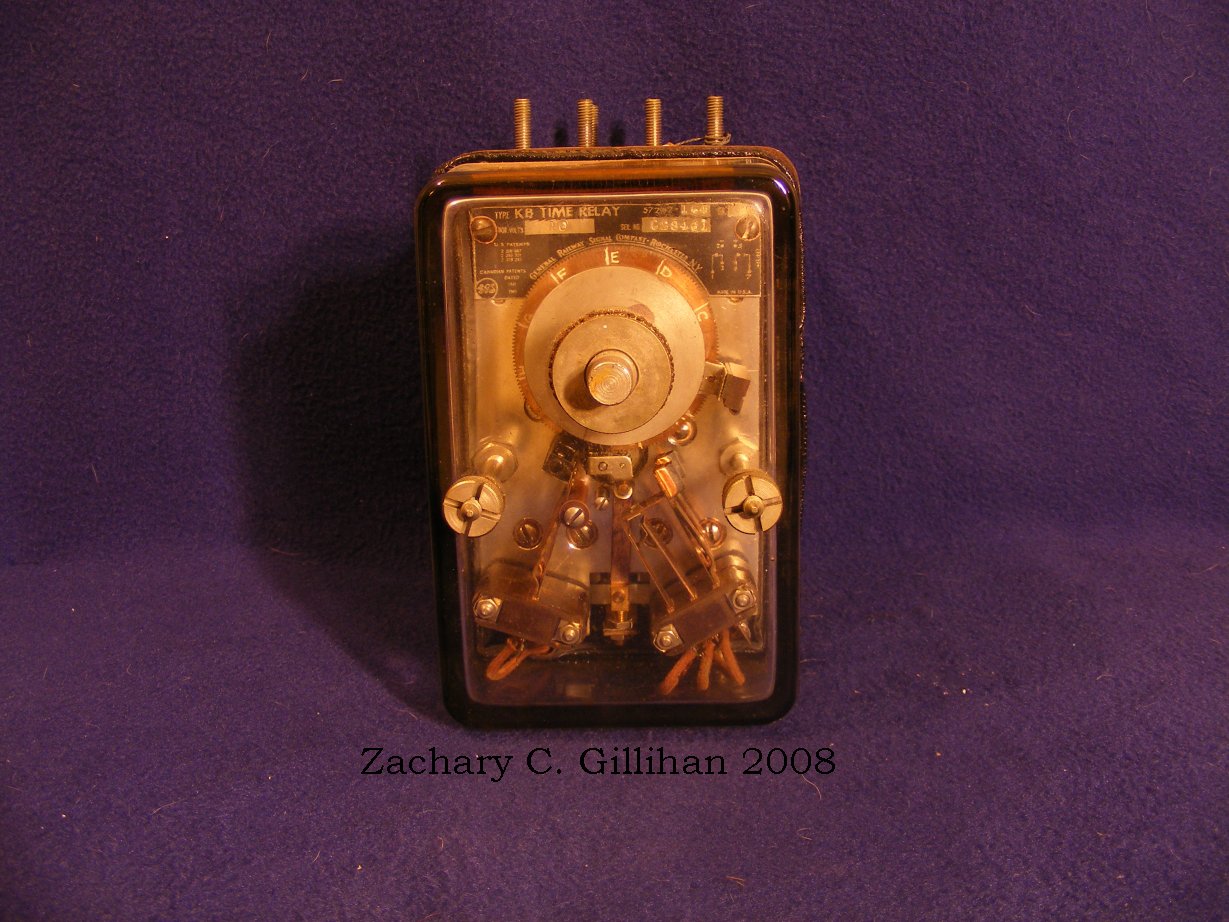

photo courtesy of Zachary Gillihan Model/Style:
Description:Time Relay
Type:KB
Size:2
Voltage:10 DC
Resistance or Cycles:
Other:1-8 Mins

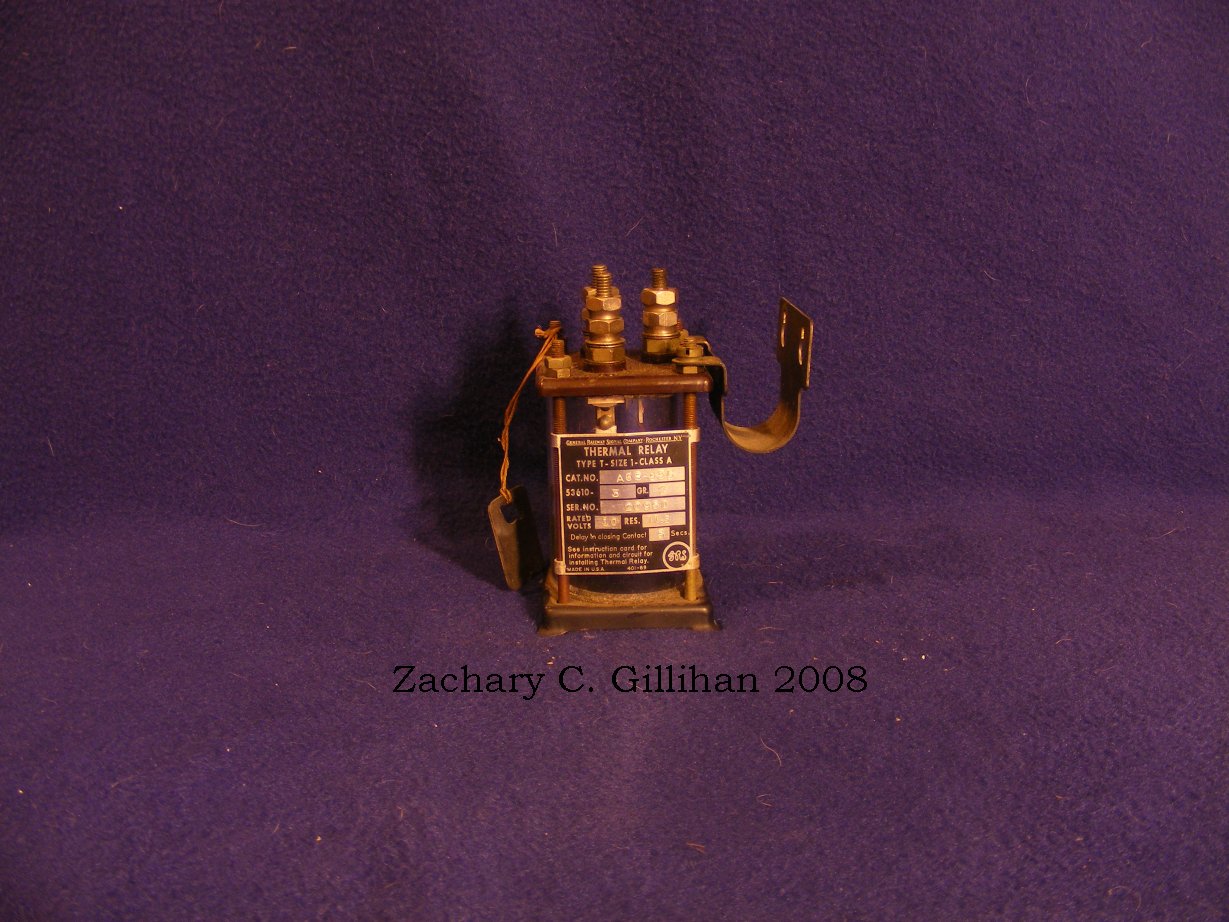

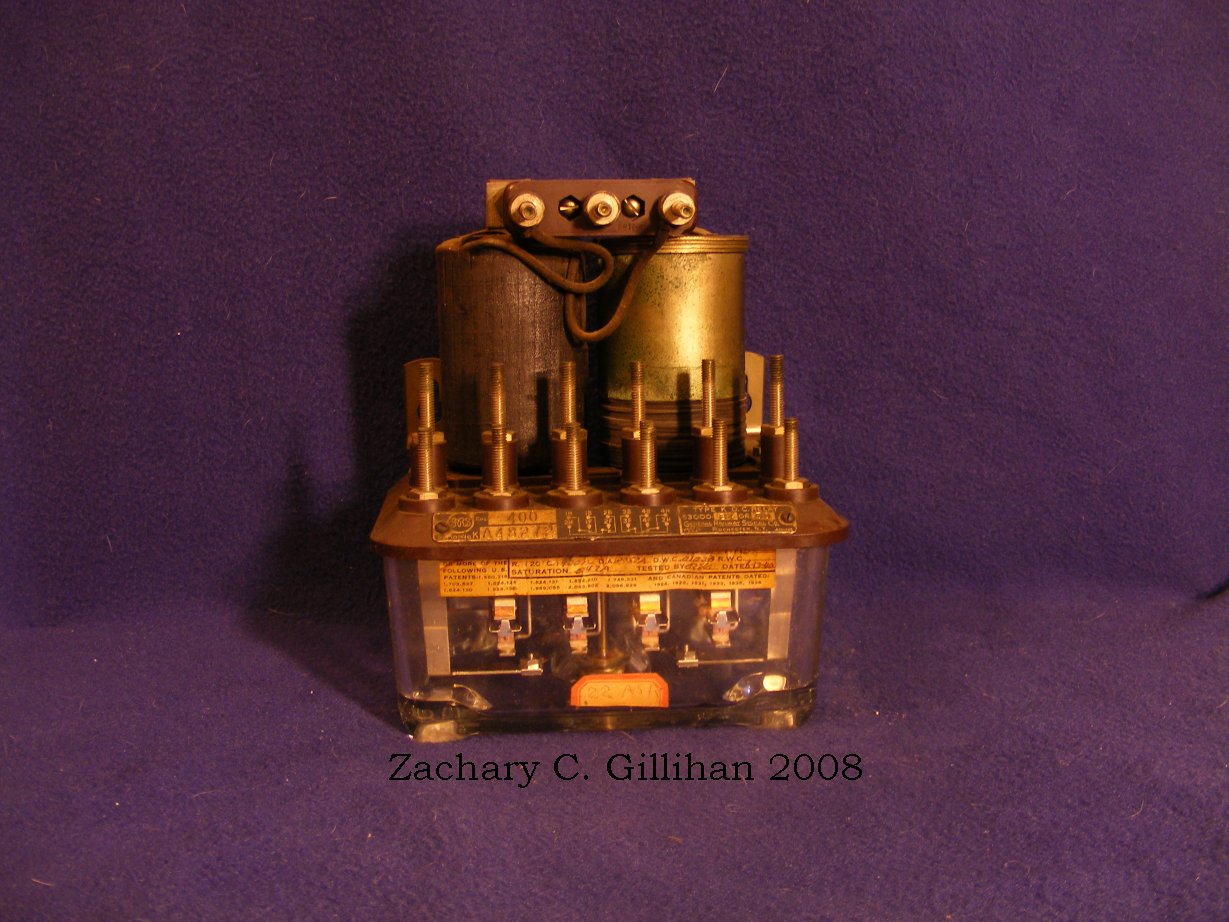

 photo courtesy of Zachary Gillihan Model/Style:
Description:Thermal Relay
Type:T
Size:1
Voltage:10 DC
Resistance or Cycles:11.3 Ohms
Other:5 Seconds

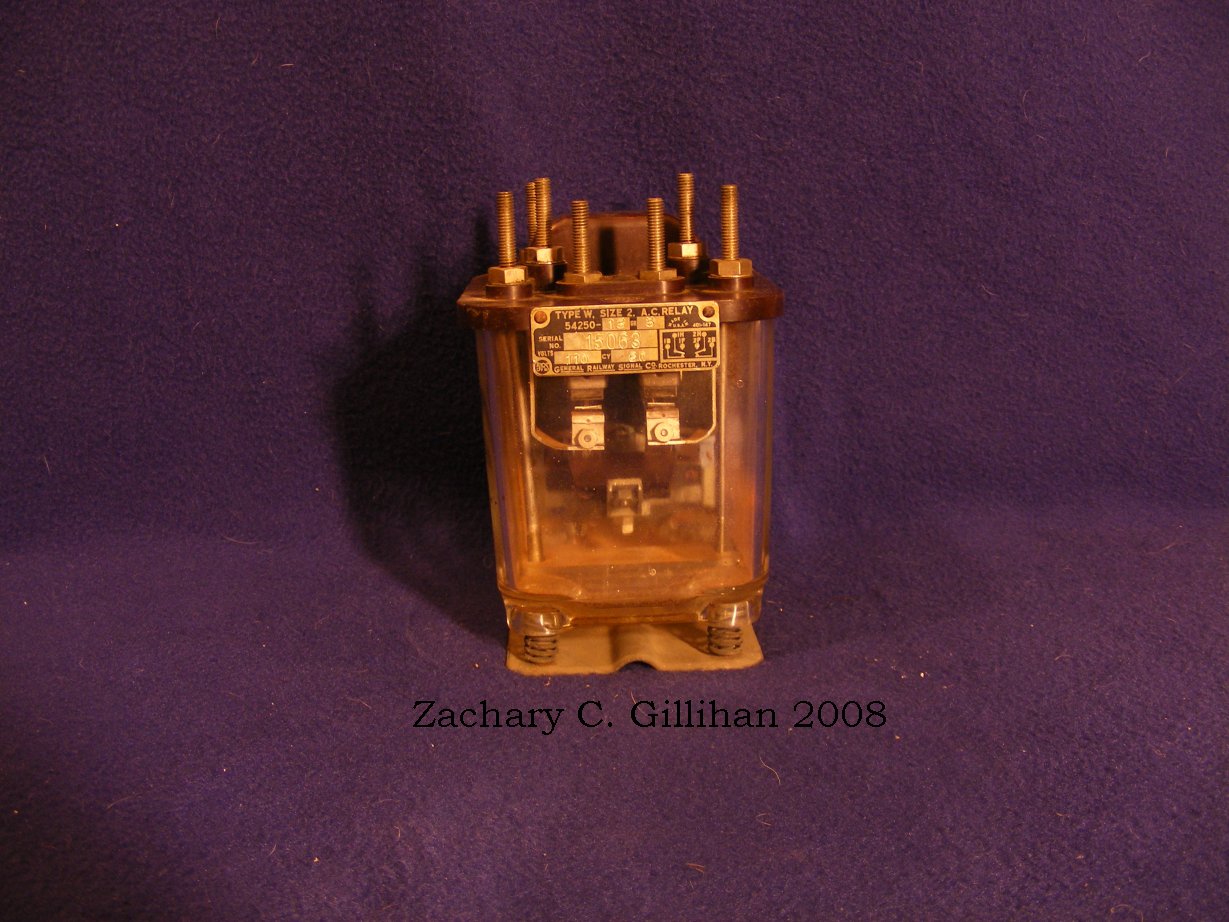

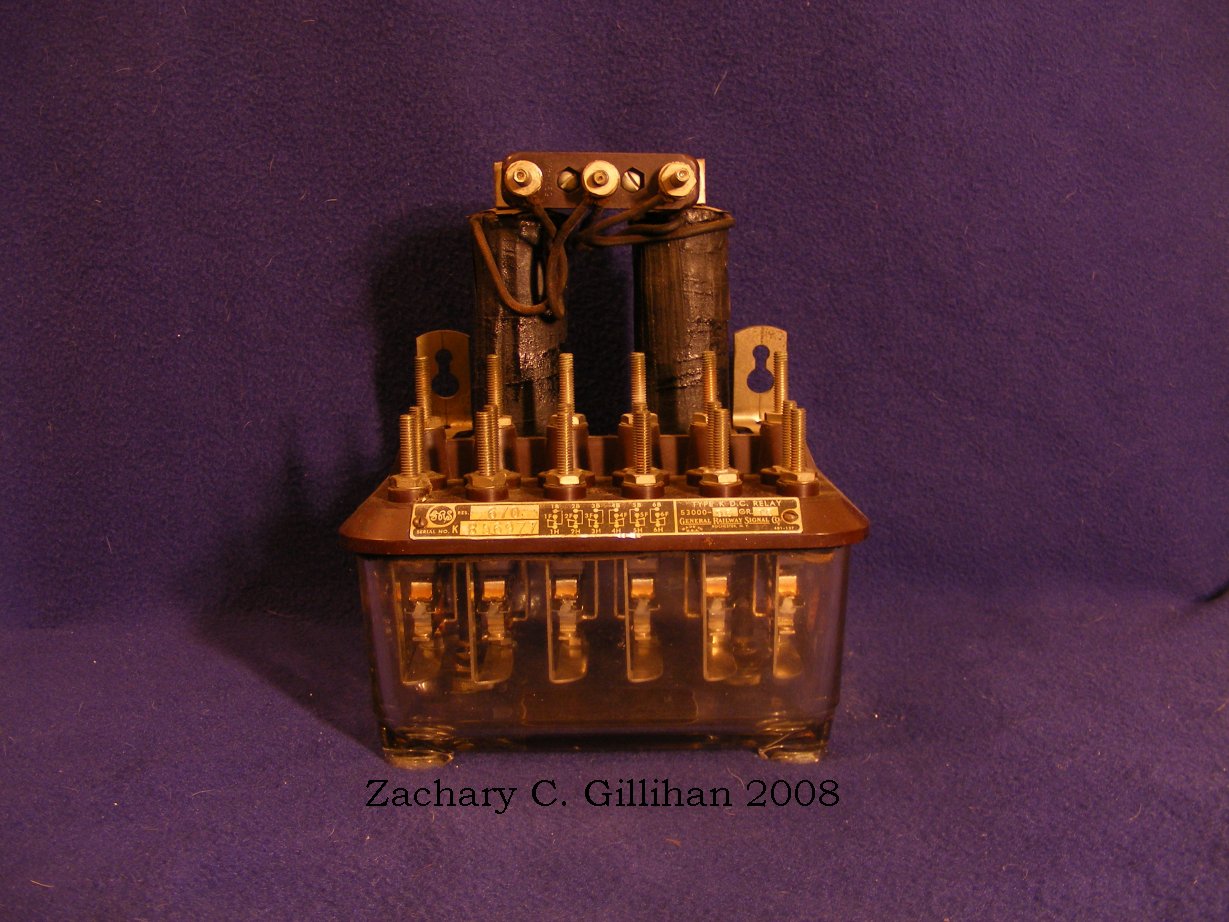

photo courtesy of Zachary Gillihan Model/Style:
Description:A.C. Relay
Type:W
Size:2
Voltage:110 AC
Resistance or Cycles:60 Cycles
Other:Power Transfer Relay

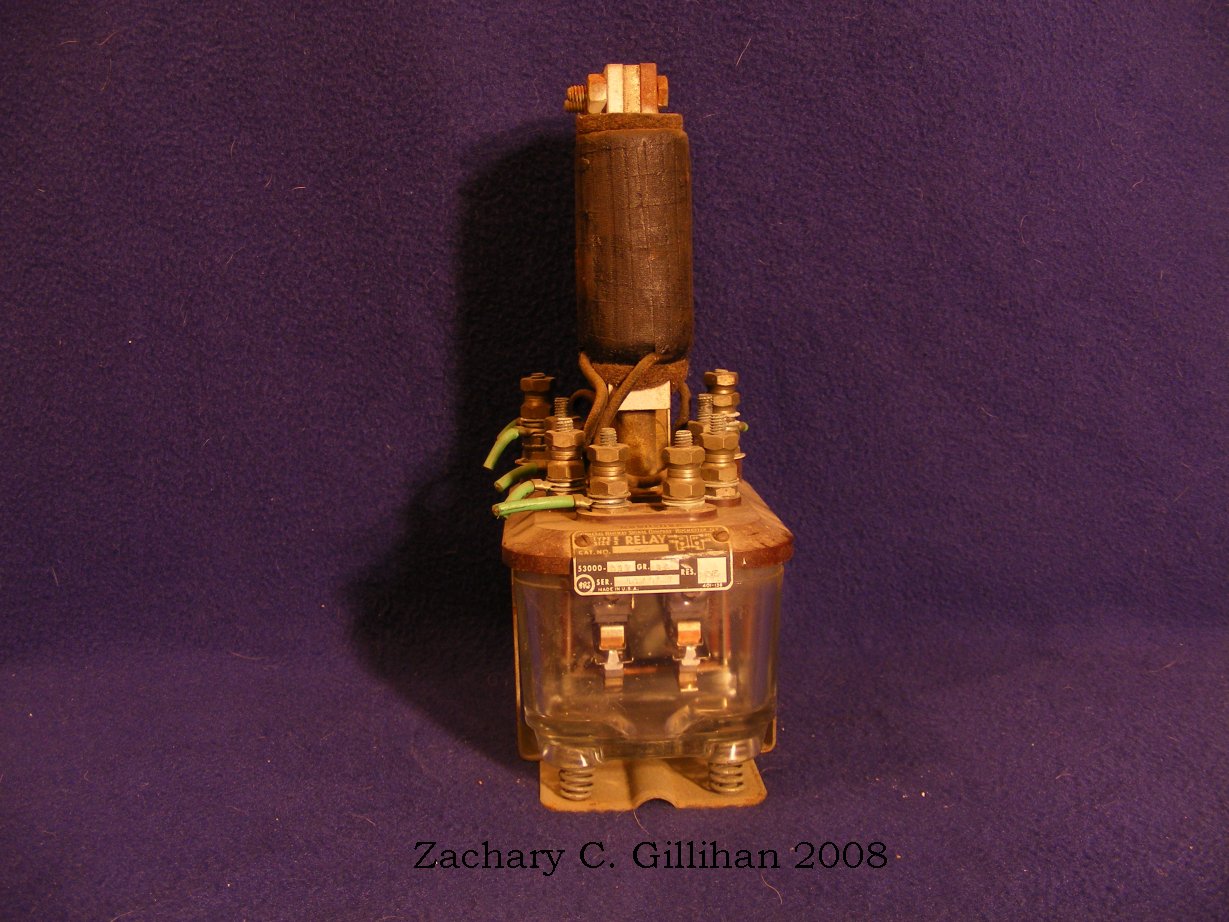

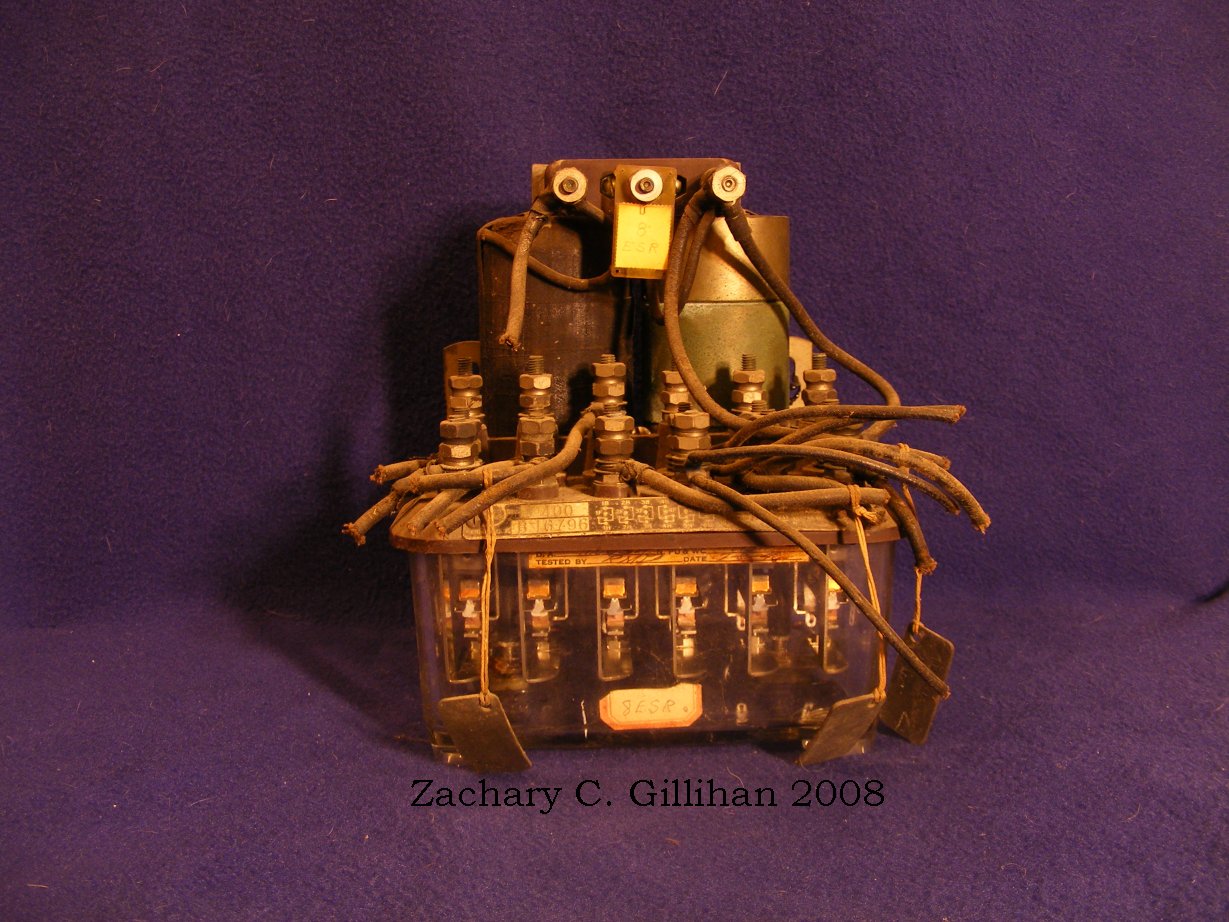

 photo courtesy of Zachary Gillihan Model/Style:
Description:Biased-Neutral Relay
Type:K
Size:2
Voltage:10 DC
Resistance or Cycles:300 Ohms
Other:

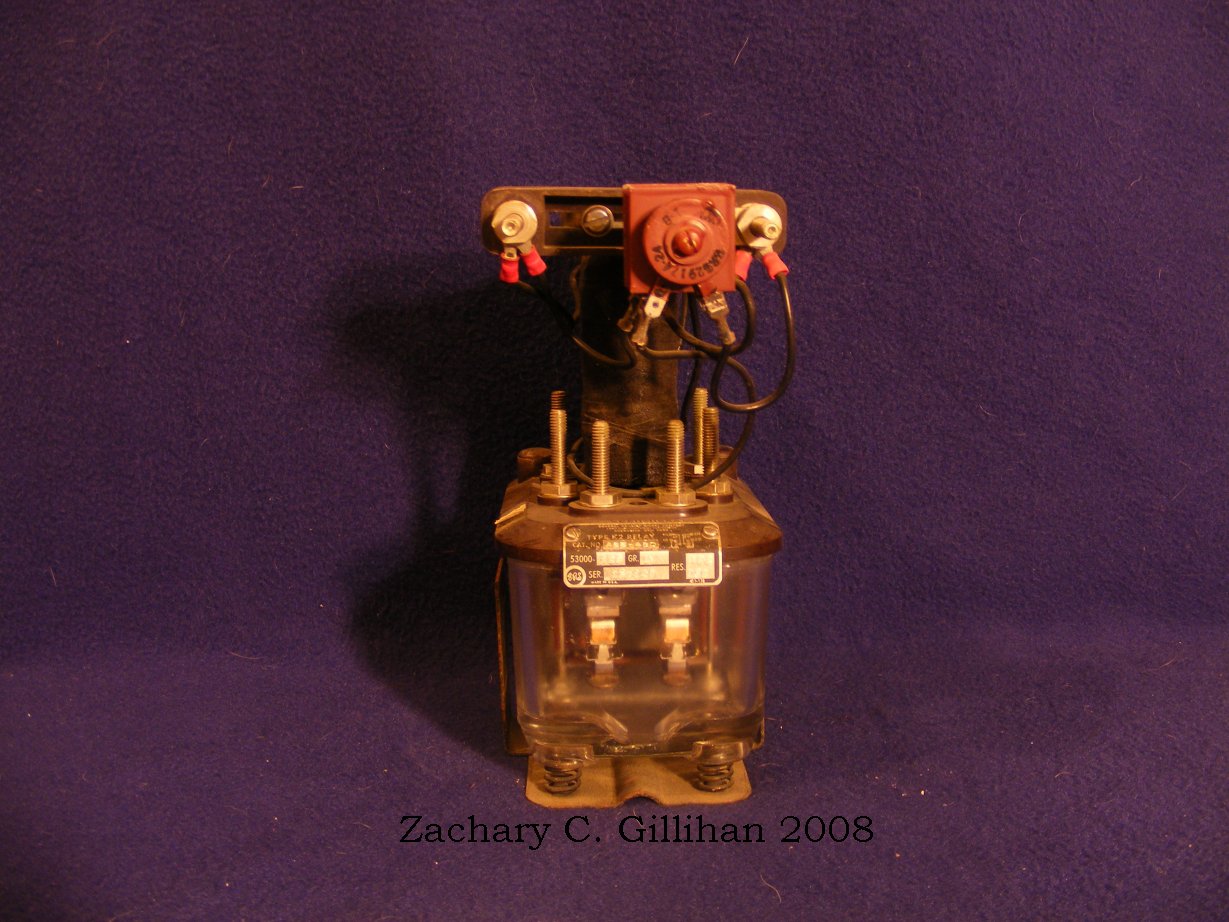

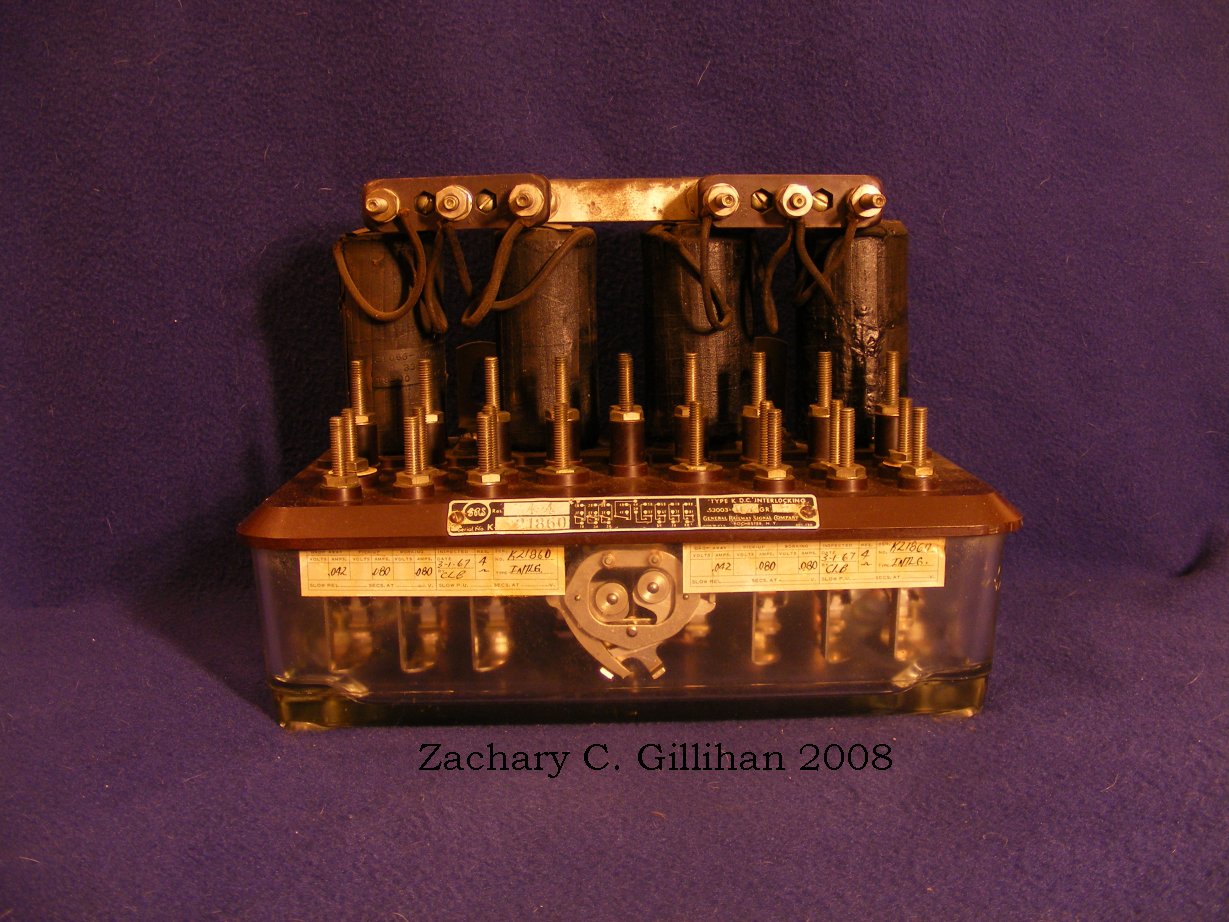

photo courtesy of Zachary Gillihan Model/Style:
Description:Power Transfer Relay
Type:K
Size:2
Voltage:10 AC *
Resistance or Cycles:135-135 Ohms
Other:*-Indicates rectifer installed.

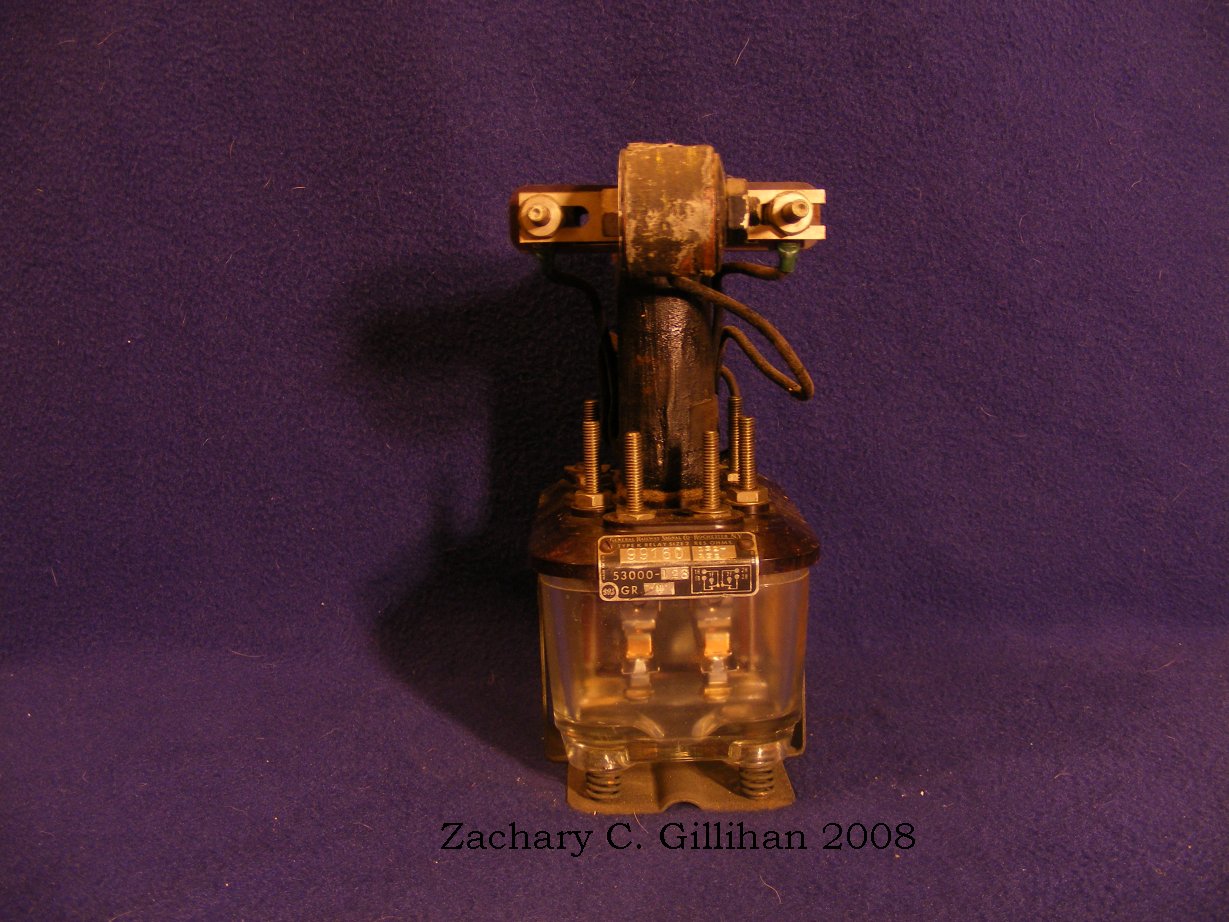

 photo courtesy of Zachary Gillihan Model/Style:
Description:Power Transfer Relay
Type:K
Size:2
Voltage:10 AC *
Resistance or Cycles:
Other:*-Indicates rectifer installed.
photo courtesy of Zachary Gillihan Model/Style:
Description:Neutral Relay
Type:K
Size:4
Voltage:10 DC
Resistance or Cycles:670 Ohms
Other:Qty. 19
 photo courtesy of Zachary Gillihan Model/Style:
Description:Neutral Relay
Type:K
Size:6
Voltage:10 DC
Resistance or Cycles:670 Ohms
Other:Qty. 7
photo courtesy of Zachary Gillihan Model/Style:
Description:Neutral Relay
Type:K
Size:4
Voltage:10 DC
Resistance or Cycles:500 Ohms
Other:
 photo courtesy of Zachary Gillihan Model/Style:
Description:Slow Release Relay
Type:K
Size:4
Voltage:10 DC
Resistance or Cycles:400 Ohms
Other:Qty. 4
photo courtesy of Zachary Gillihan Model/Style:
Description:Slow Release Relay
Type:K
Size:6
Voltage:10 DC
Resistance or Cycles:400 Ohms
Other:Qty. 4

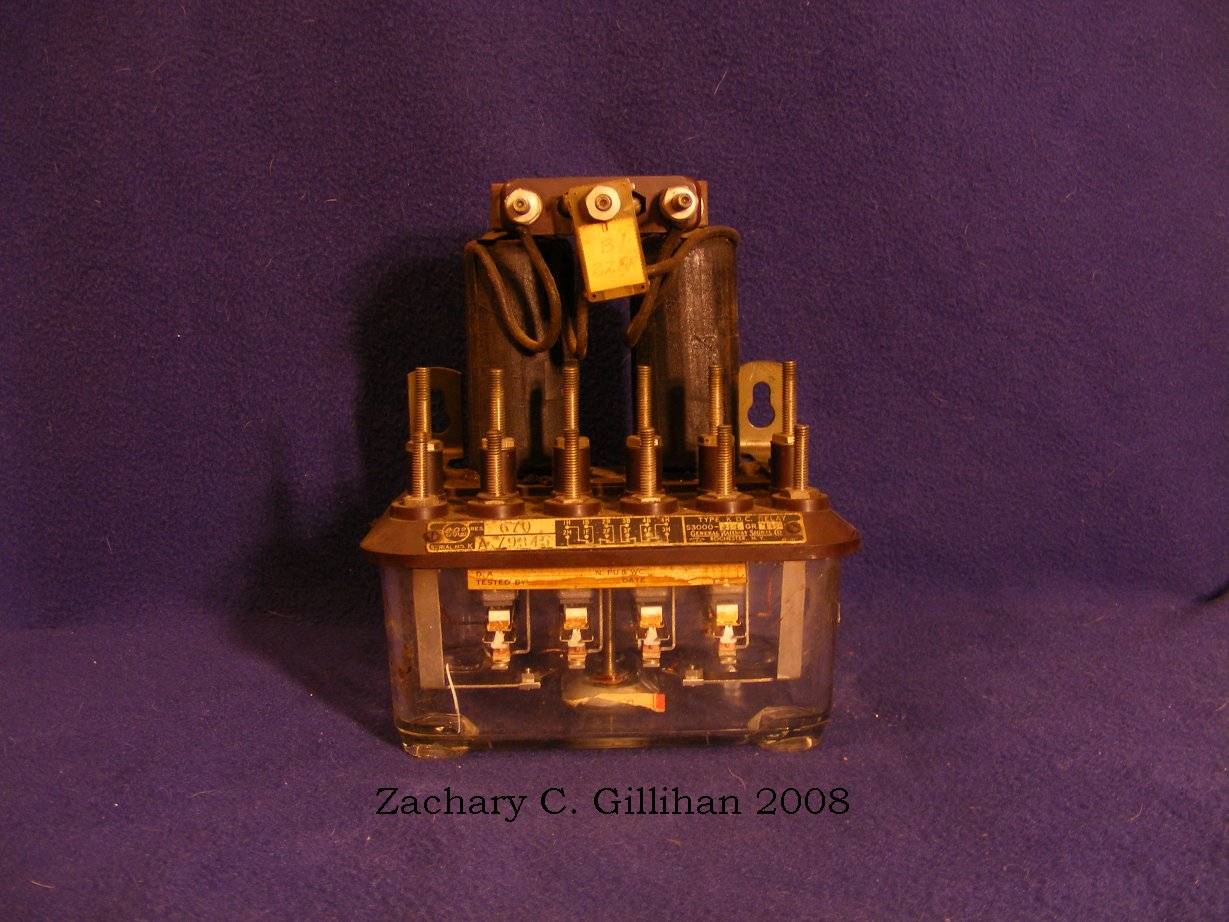

 photo courtesy of Zachary Gillihan Model/Style:
Description:D.C. Flasher Relay
Type:K
Size:4
Voltage:10 DC
Resistance or Cycles:260-260 Ohms
Other:Highway Crossing Flahser

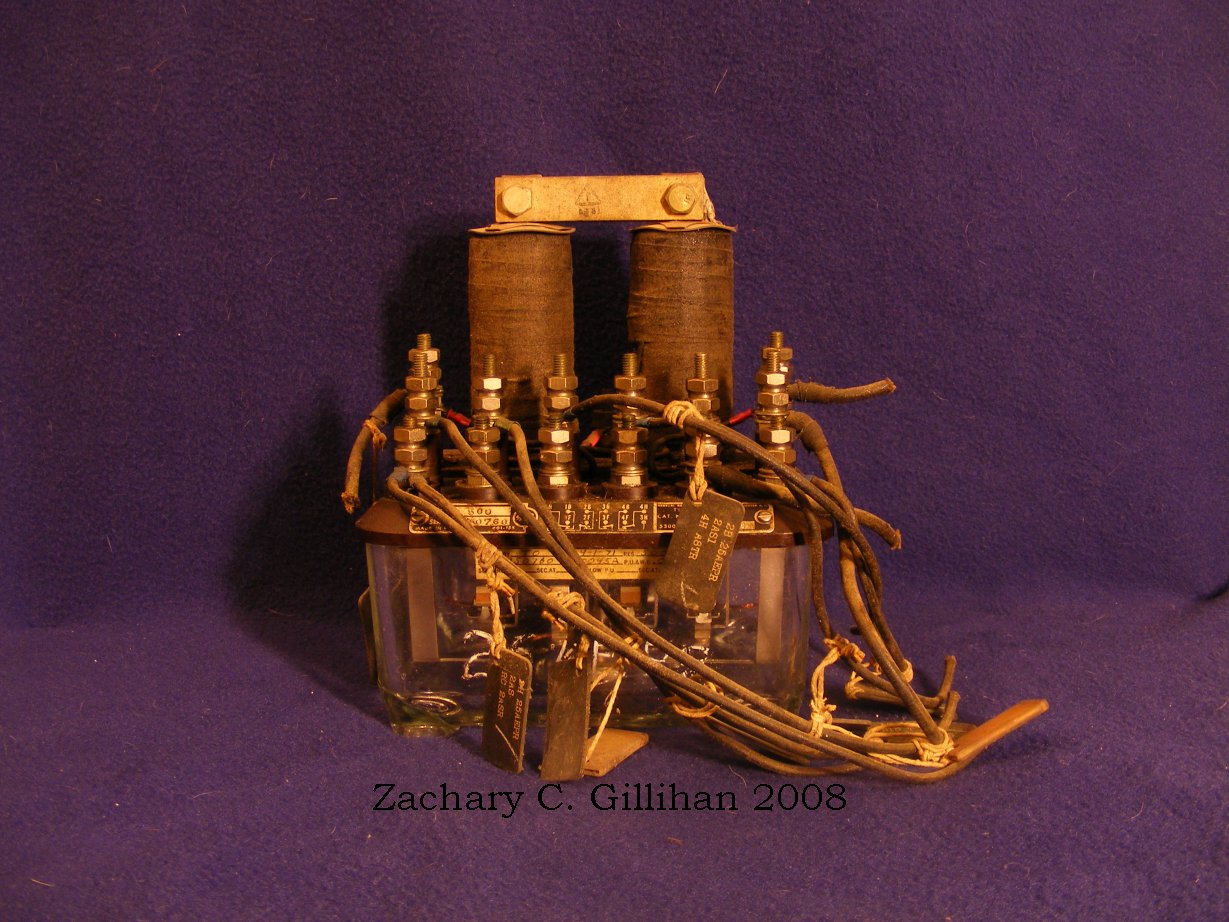

photo courtesy of Zachary Gillihan Model/Style:
Description:Interlocking Relay
Type:K
Size:8
Voltage:10 DC
Resistance or Cycles:Was 4-4 now 670-670 Ohms
Other:Highway Crossing Protection System
