Project #0752 is restoring a Dispachers panel that was located in a tower near the Fern Rock Transportation Center. It was removed a few years ago and I bought it from someone who had it stored at a museum. My dad and I drove to Marion Ohio to get this panel and a GRS NX panel. All the contacts on this panel are extremly corroded and either need to be cleaned or replaced. I had several spare lamp units and replaced the ones that have broken. To clean the contacts I have been boiling Simple Green and wather. It has worked quite well! I will restore this panel to the same as to how it was when it was removed from serivce.

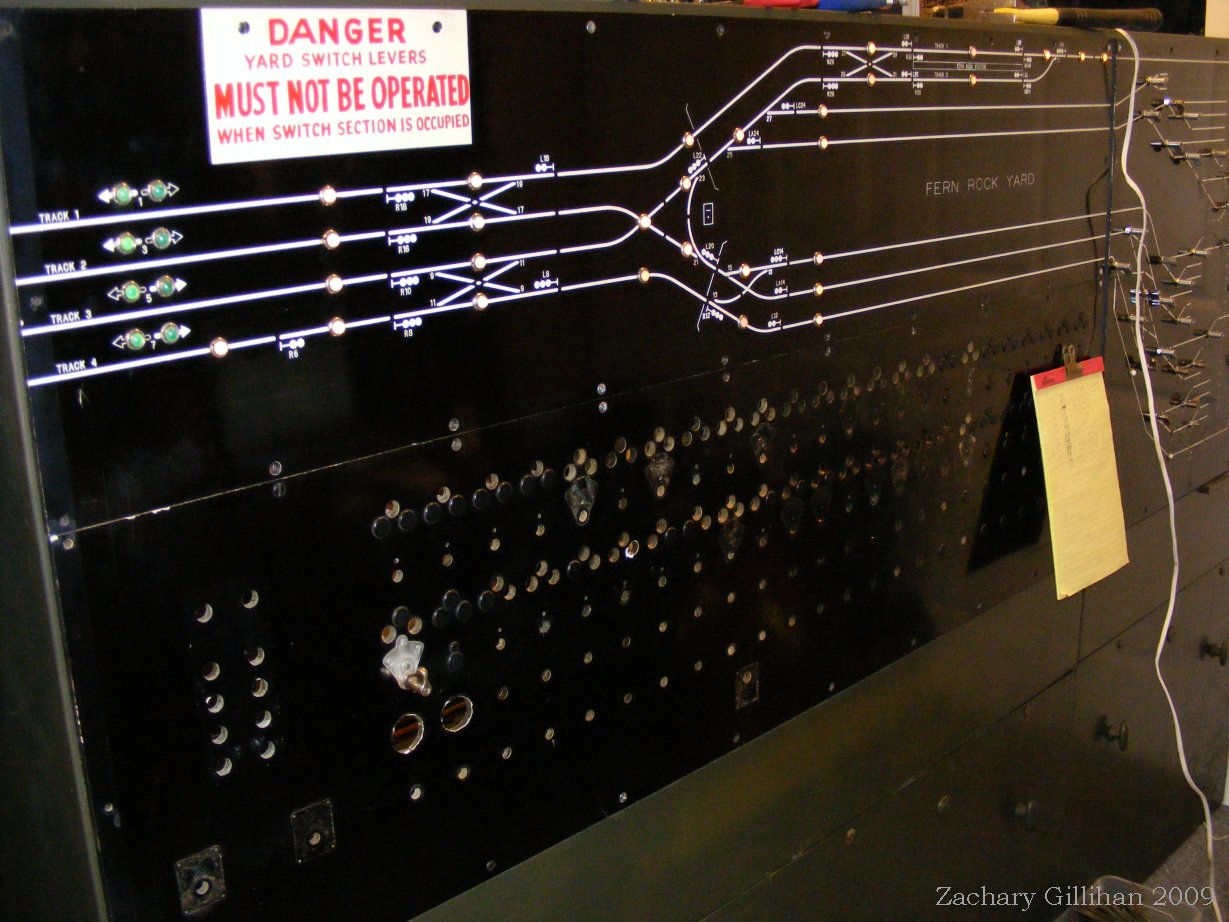

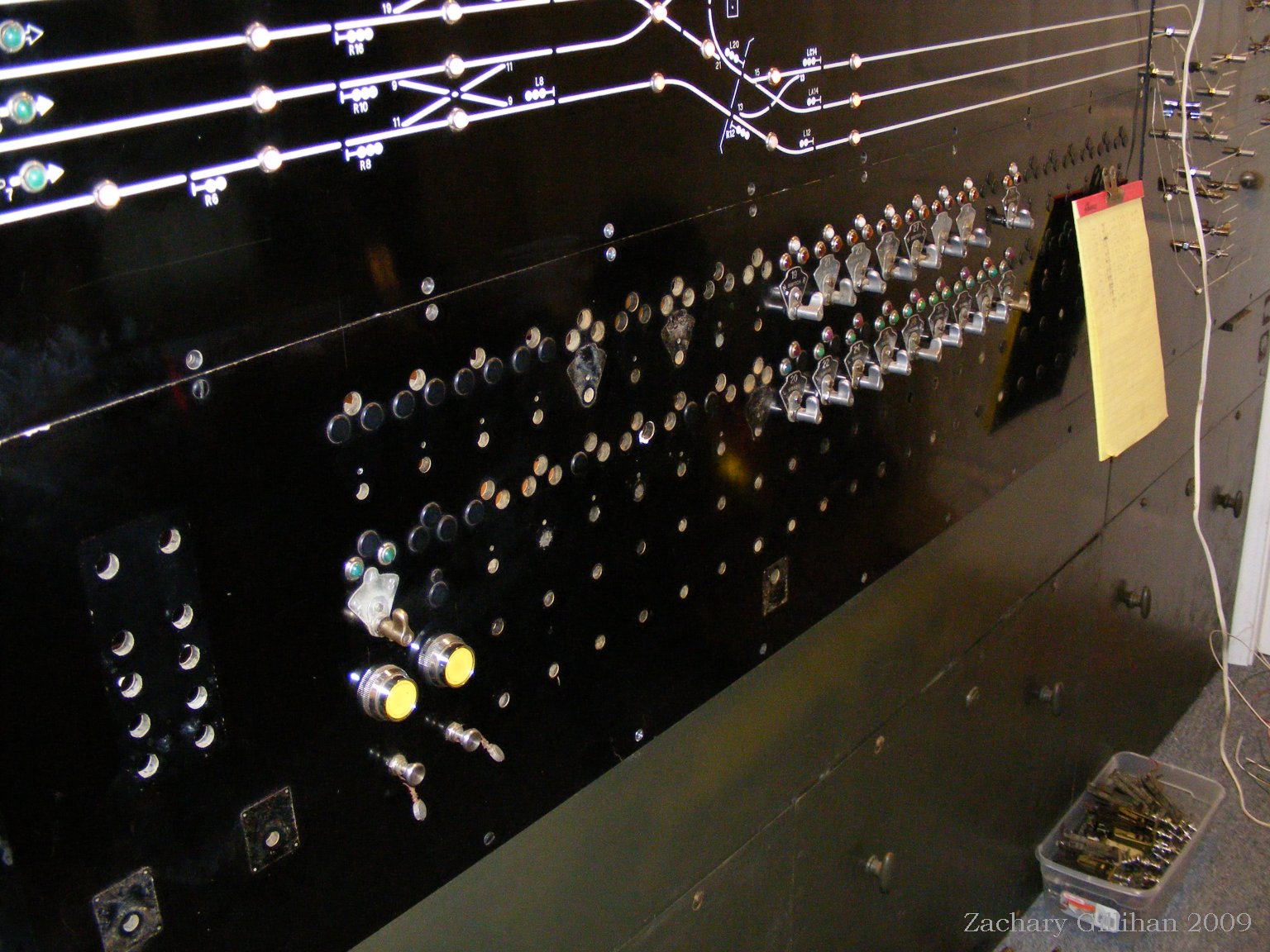

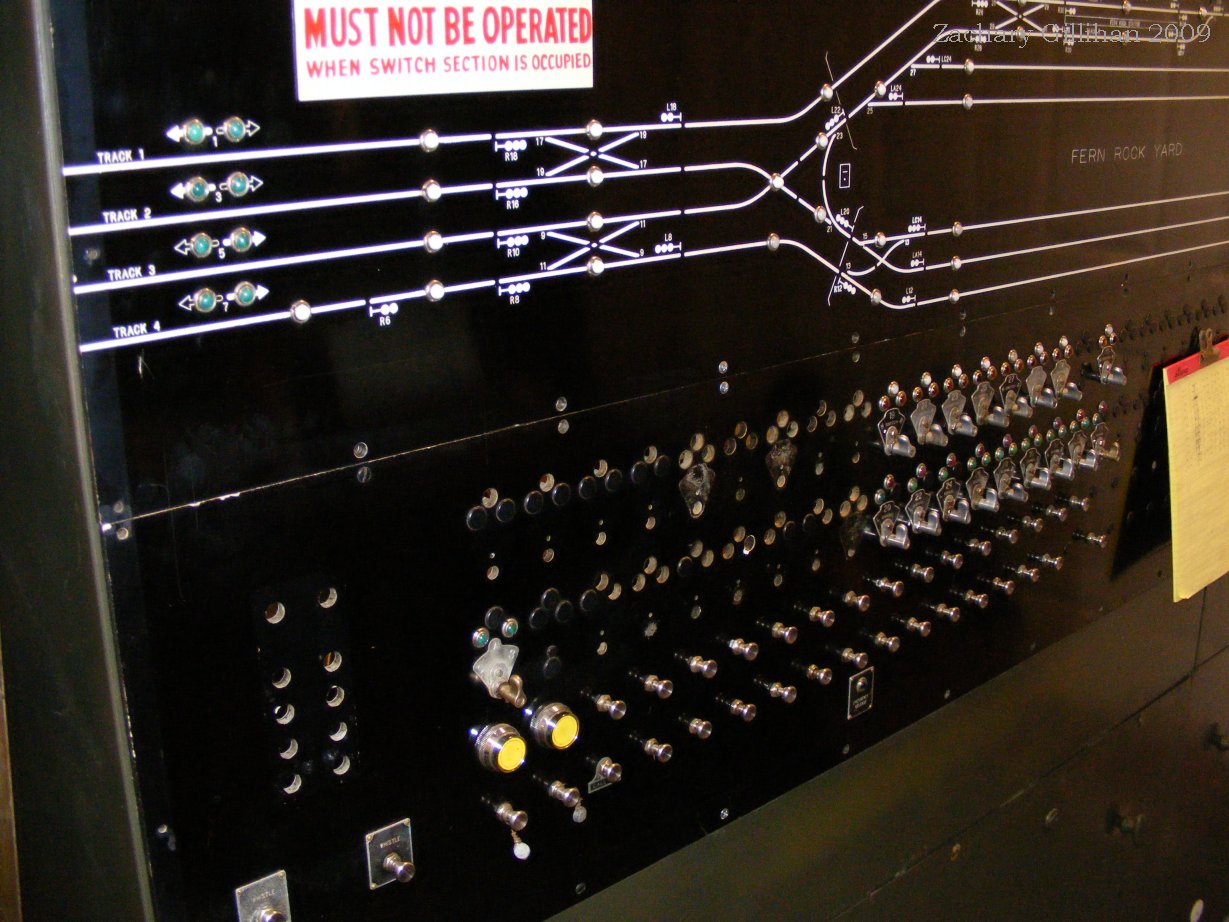

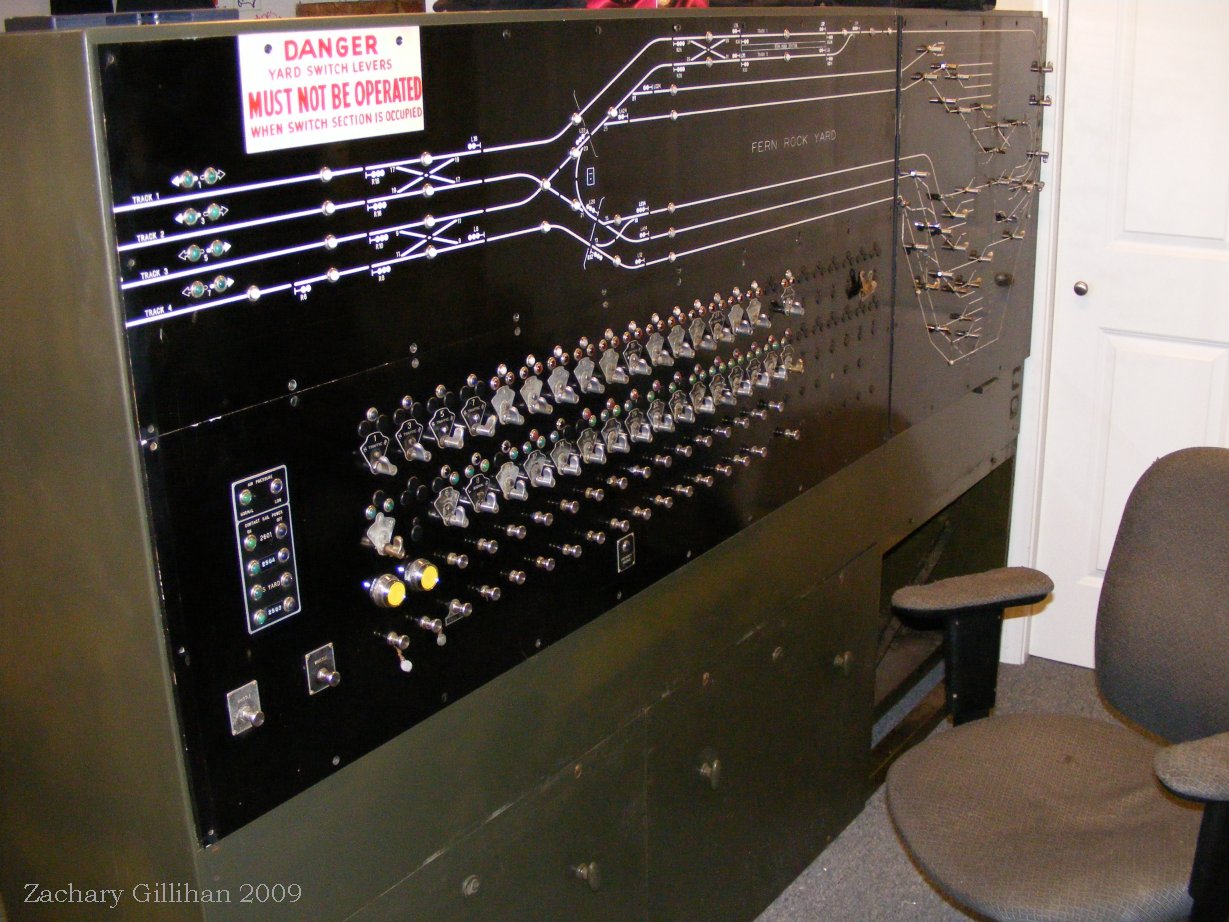

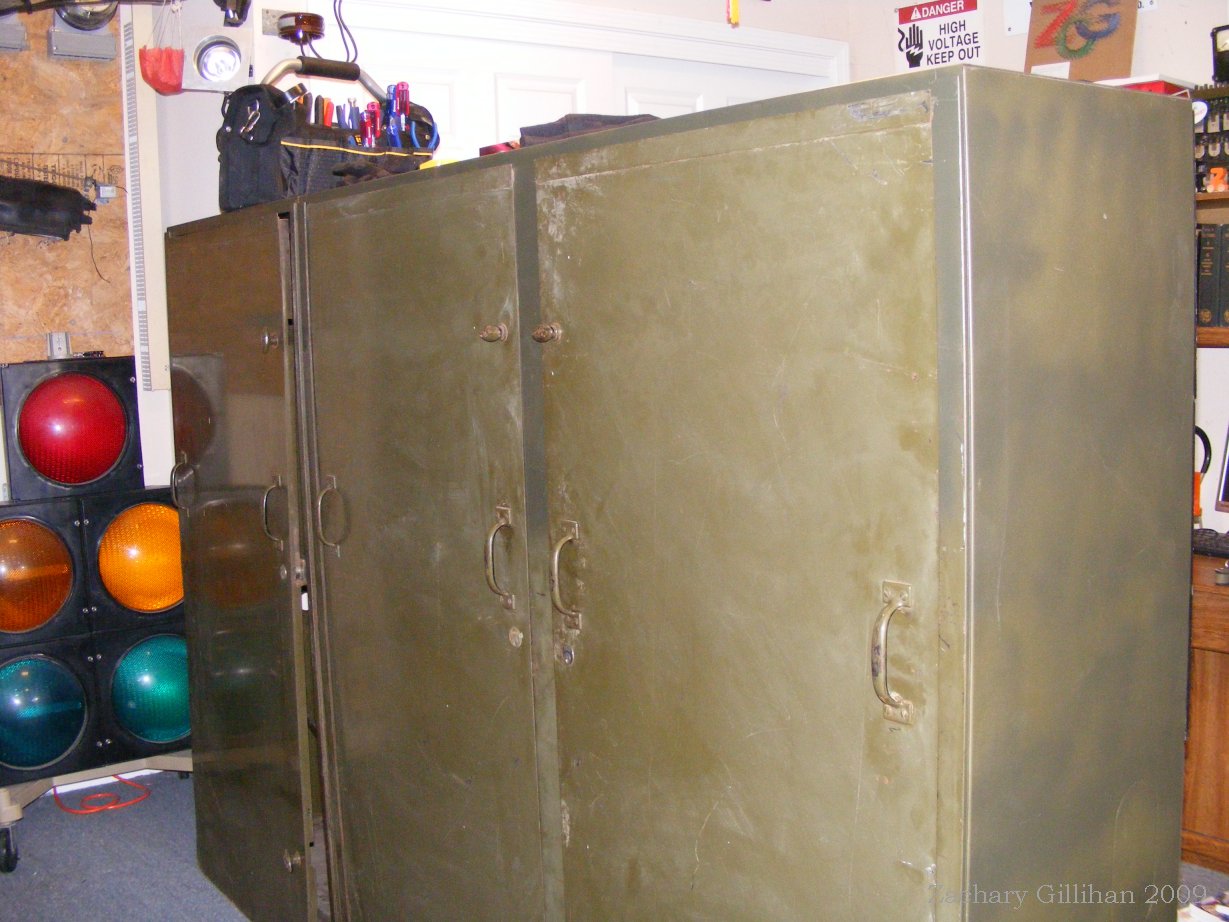

Panel as I got
it.

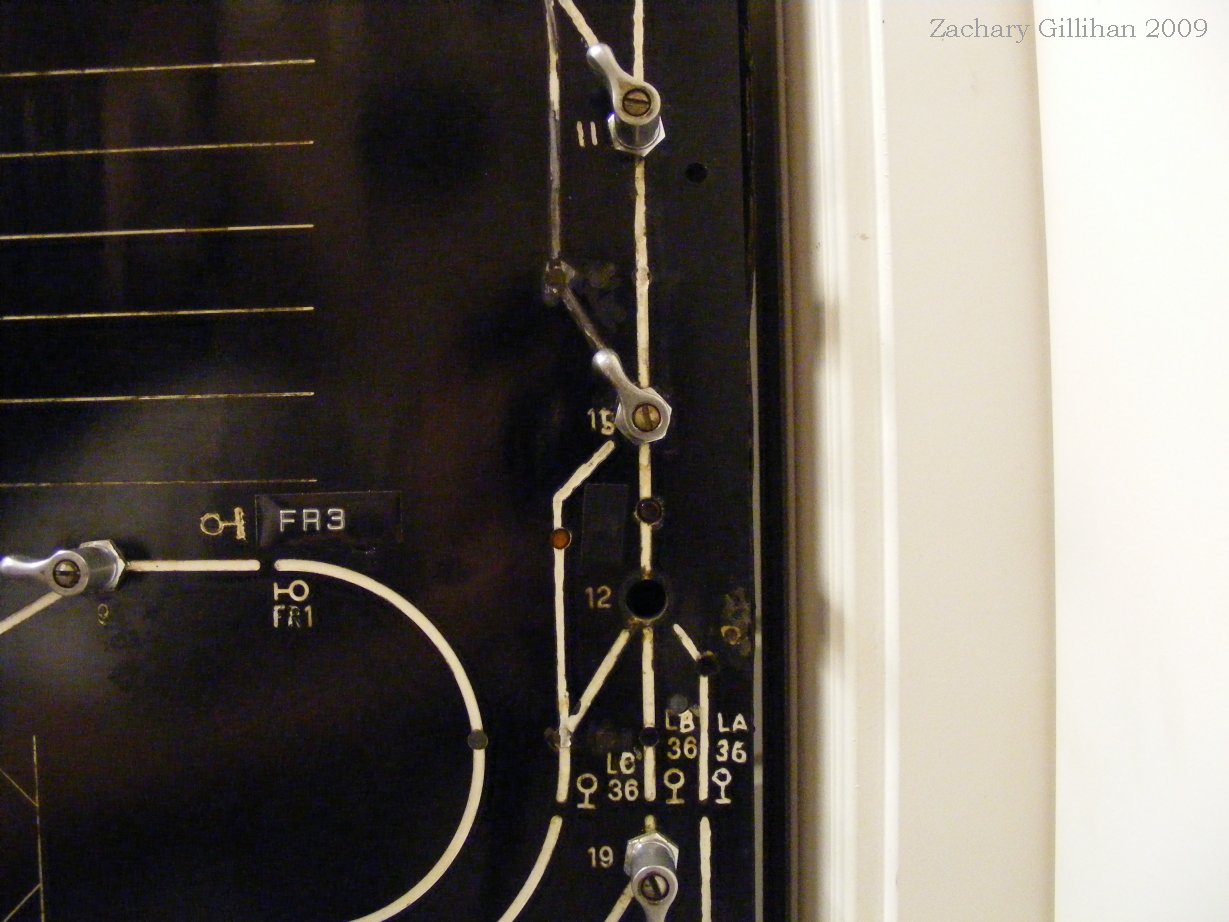

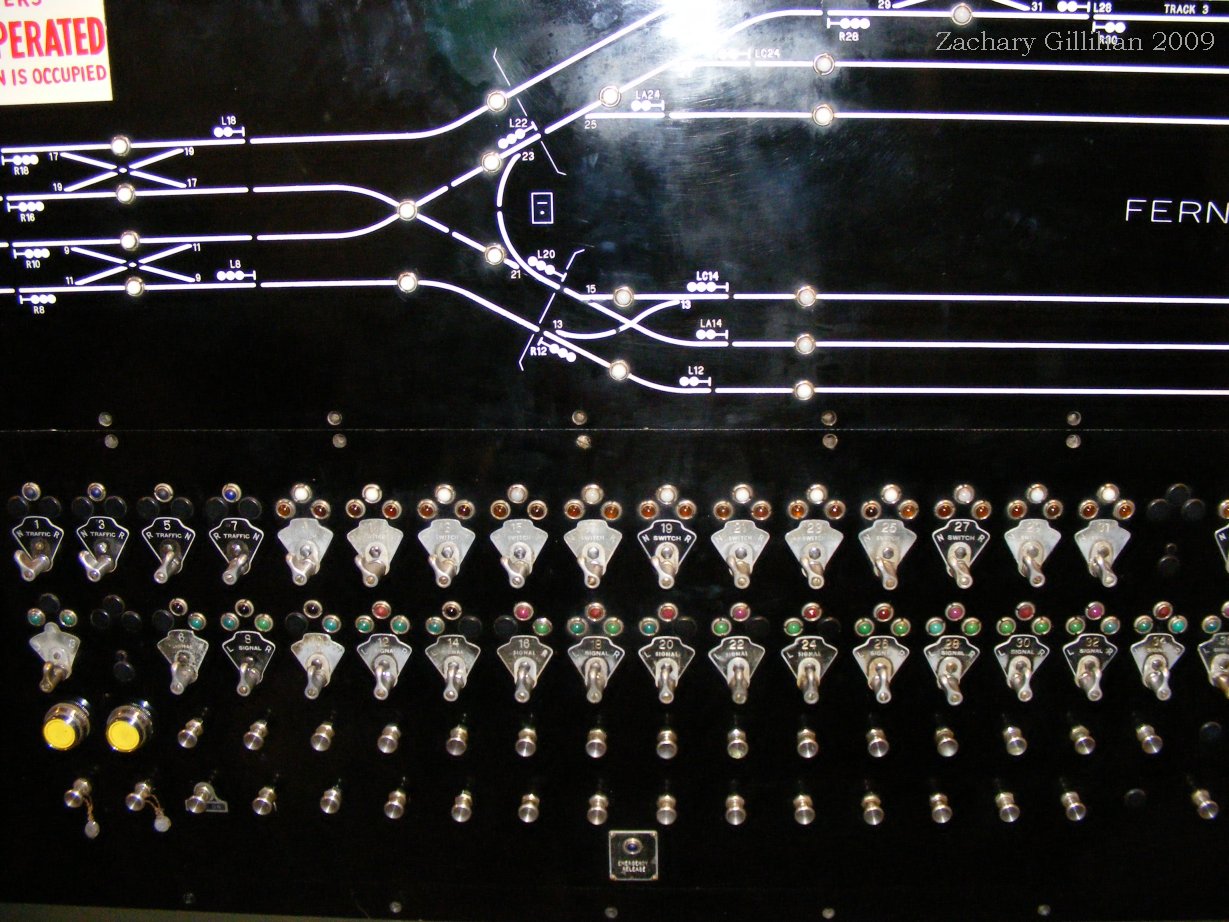

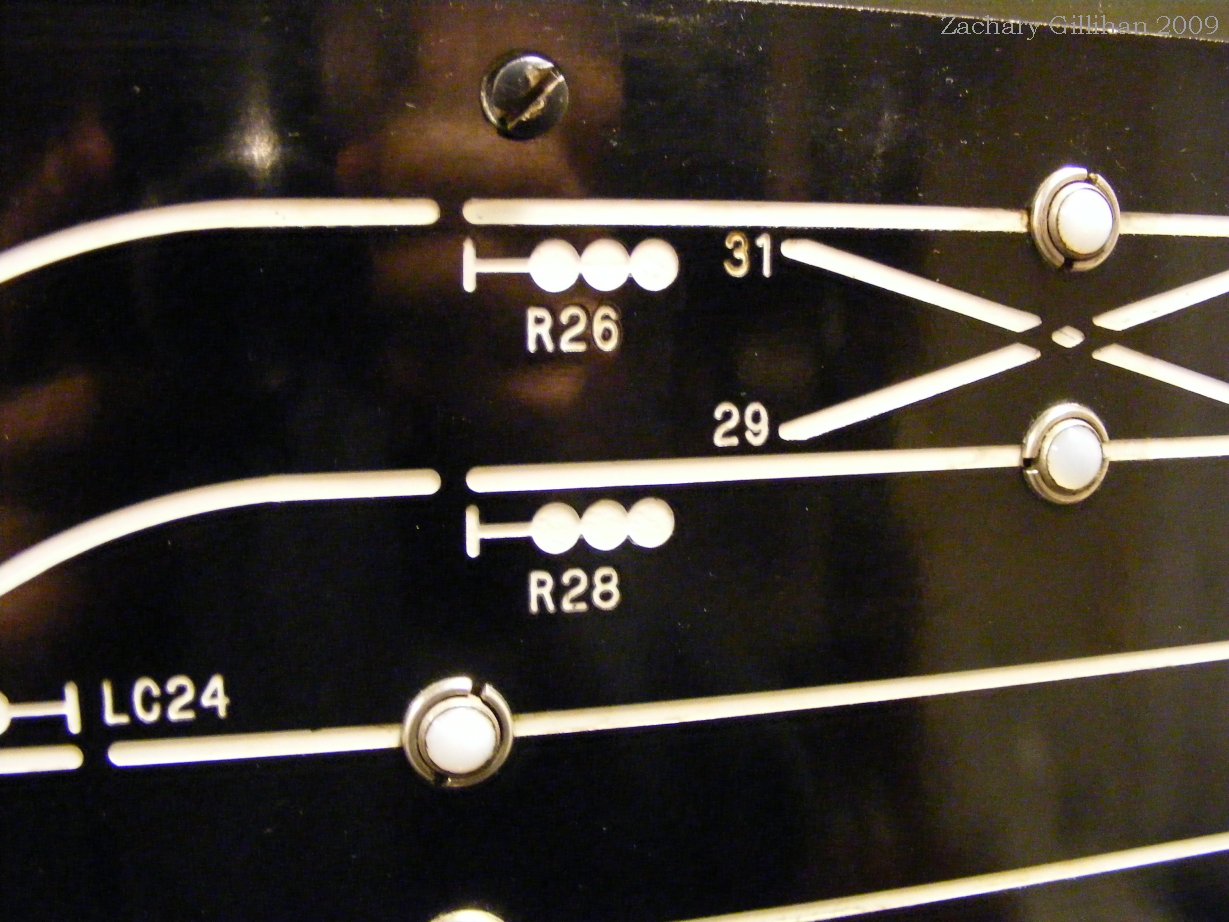

Engraved layout.

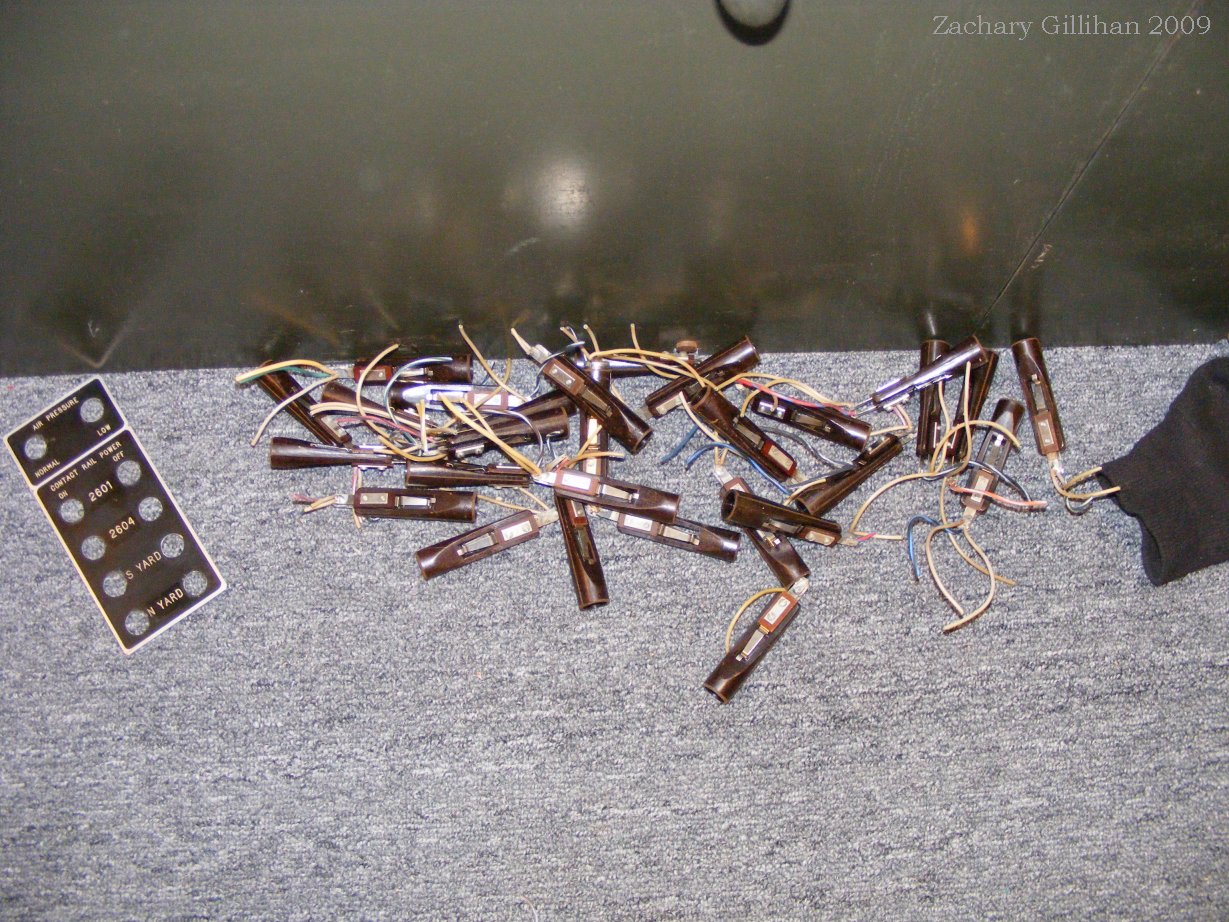

Yard lamp sockets.
Lights wired up.

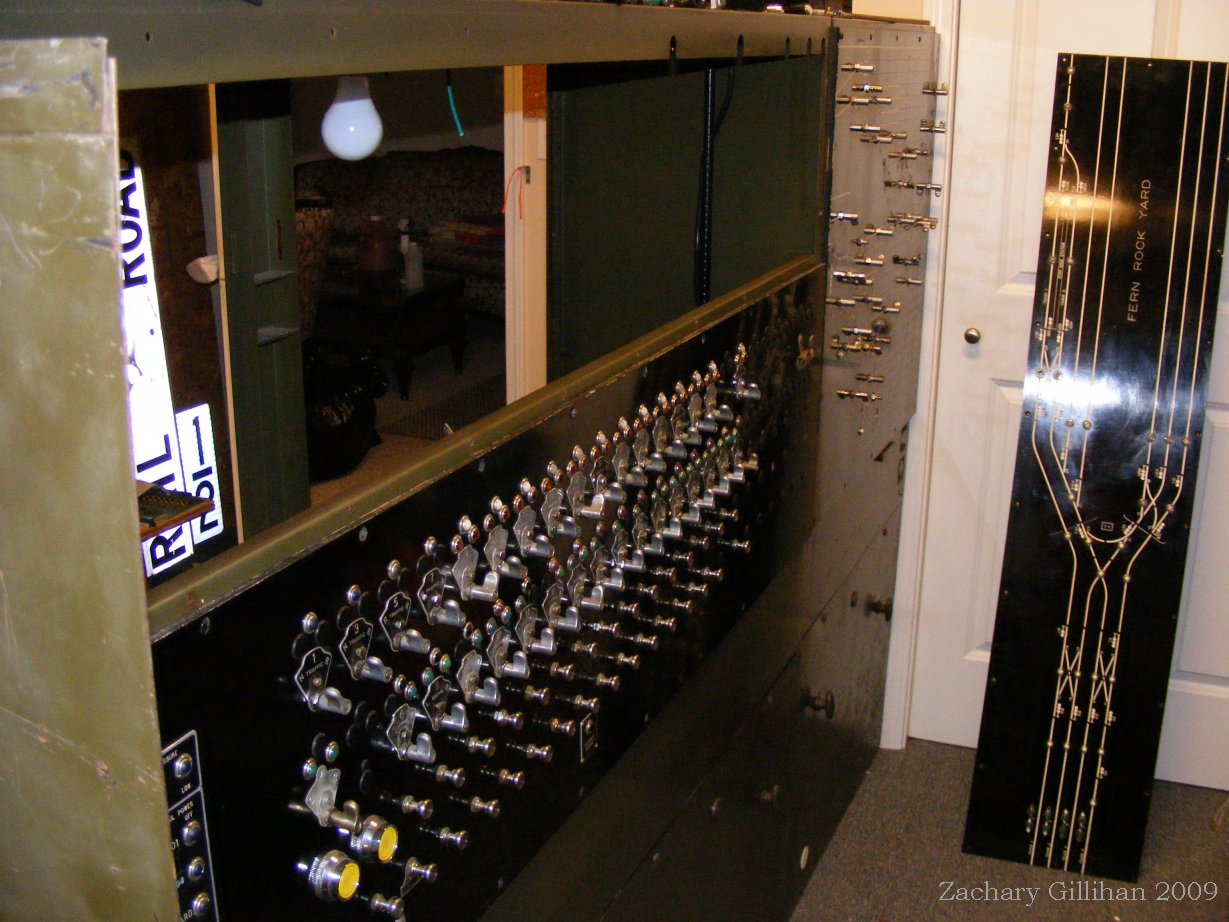

Model board removed.
Broken lamp sockets.

New lamps installed.
Track lamps removed.

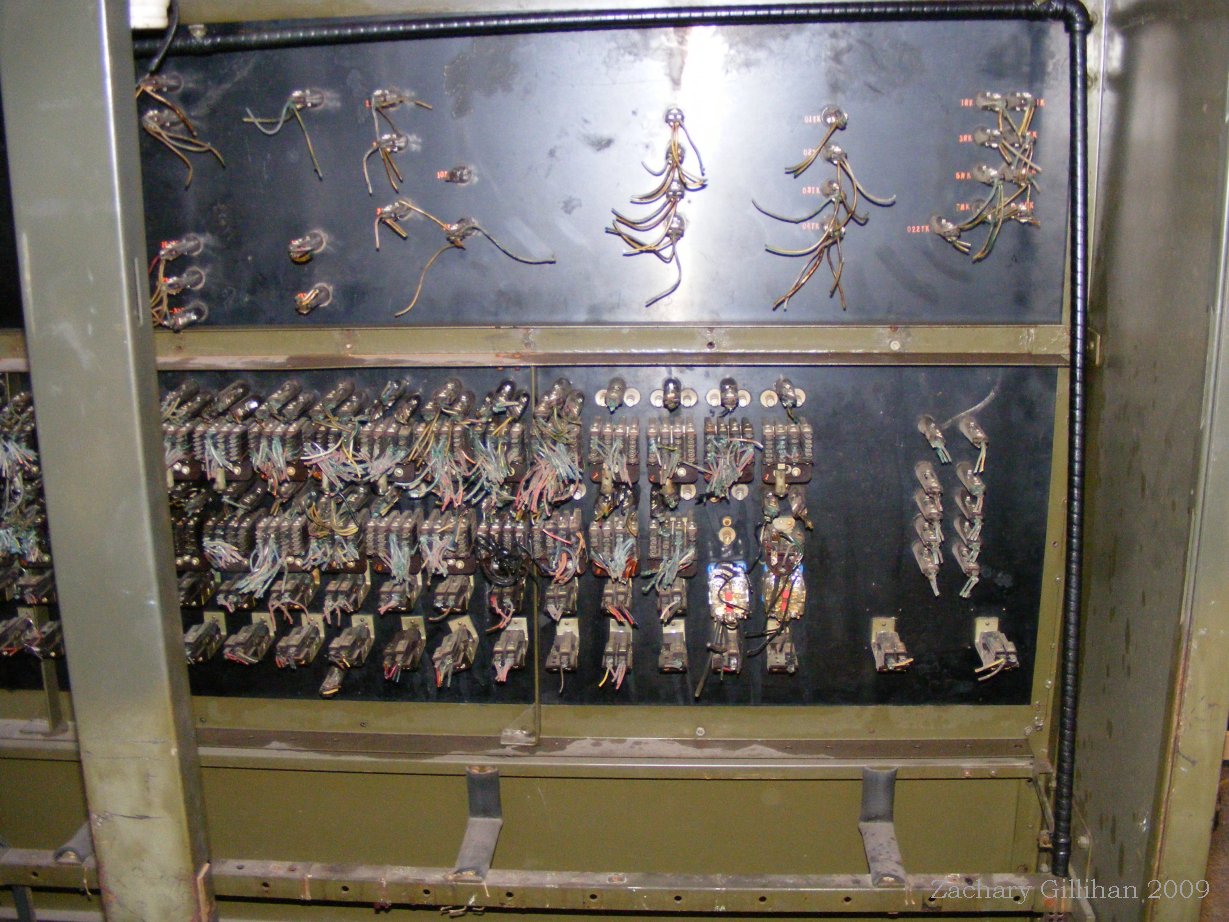

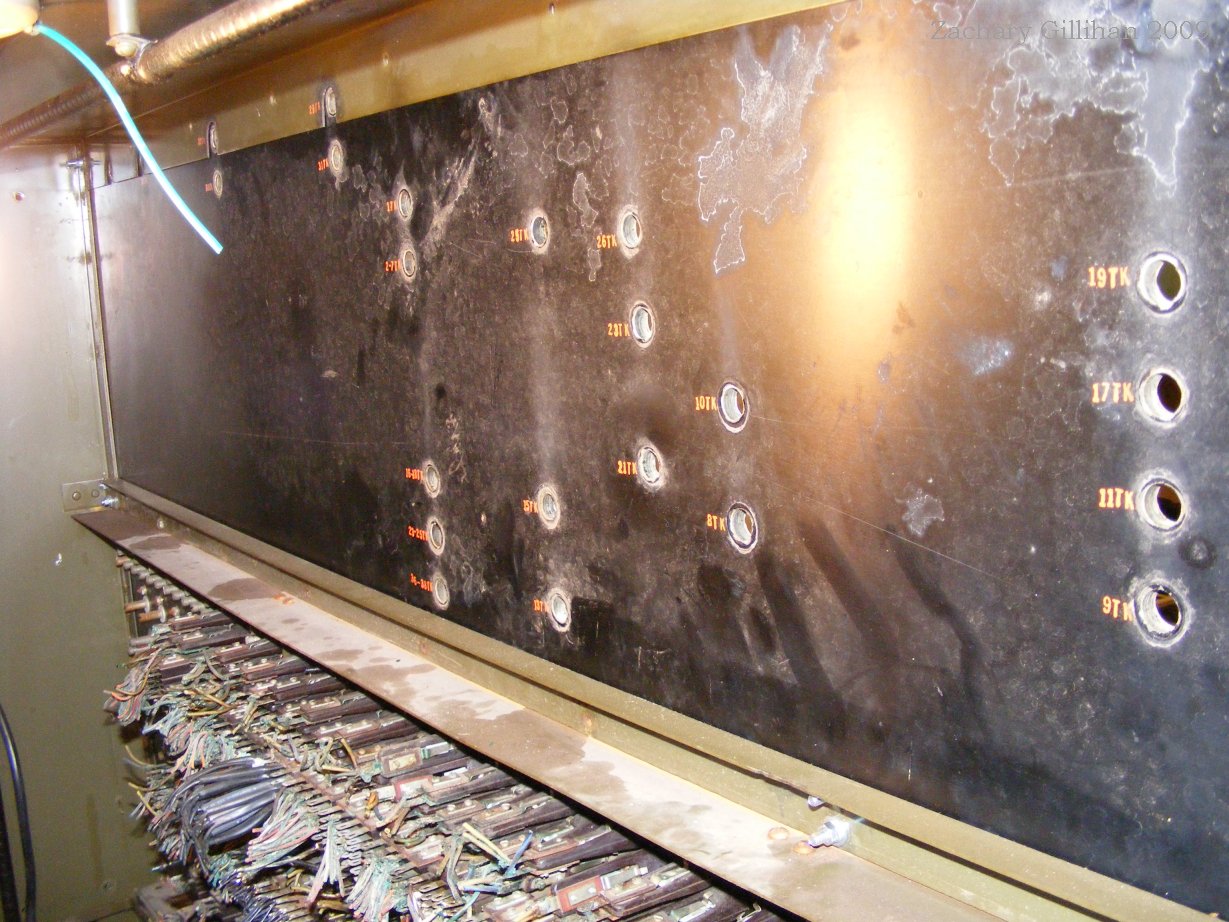

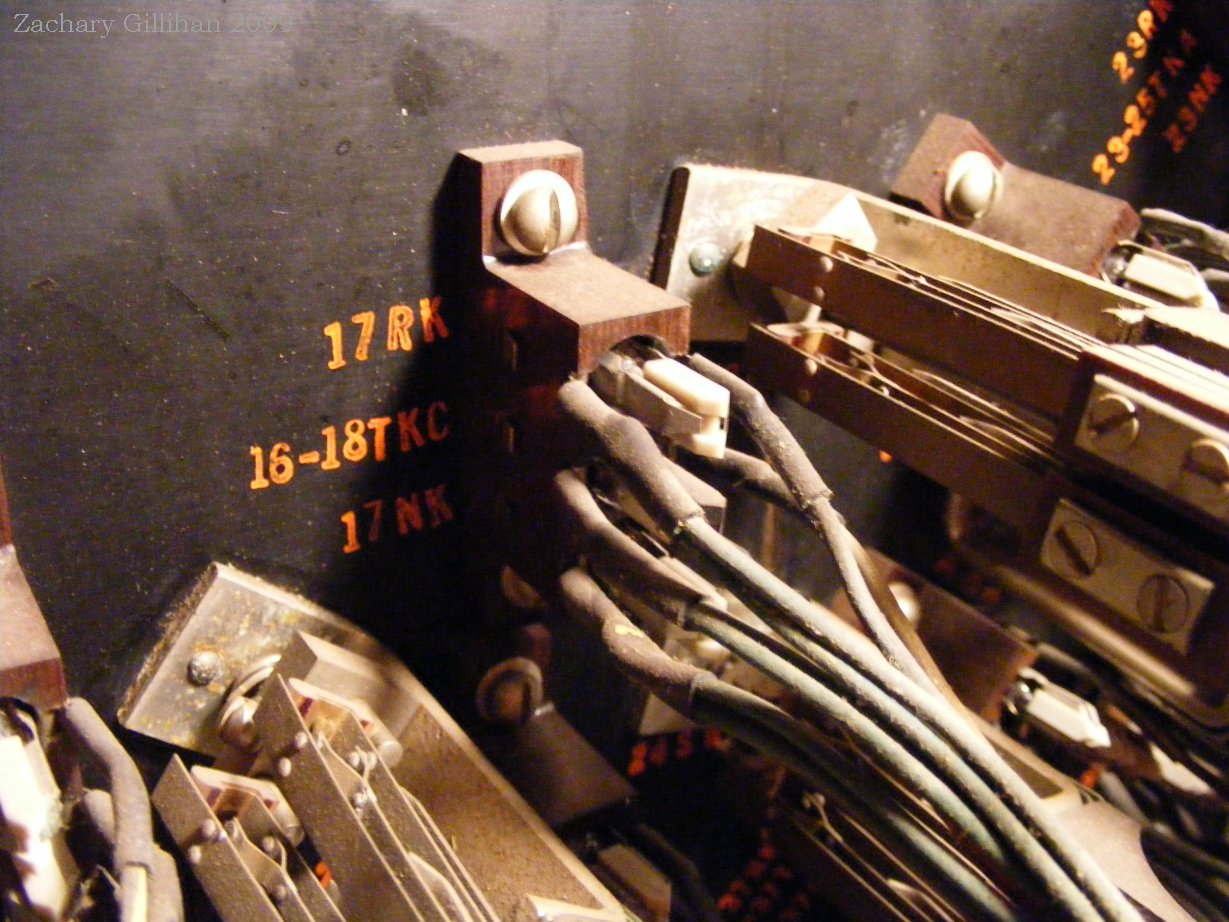

Corroded wires.

I am confused.

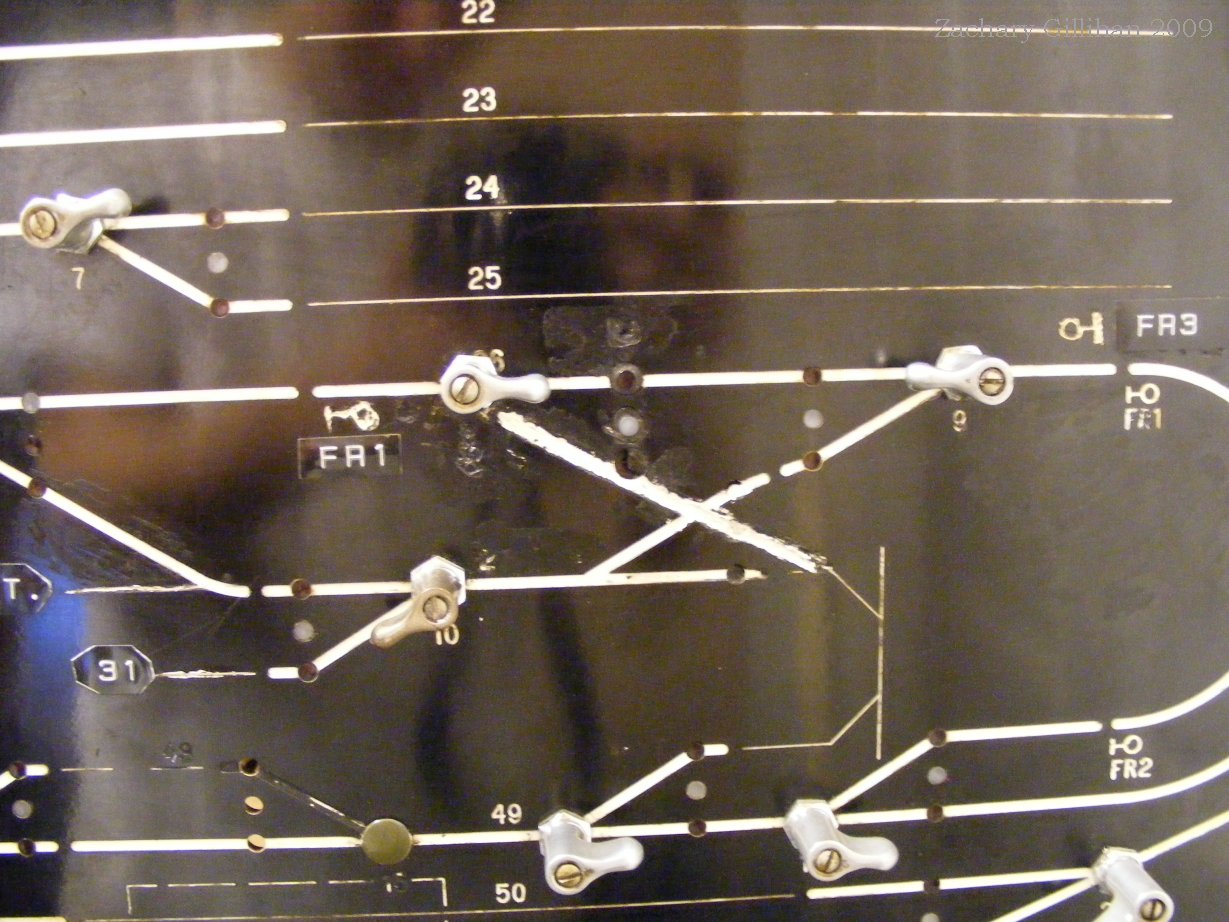

Messed up track
layout.

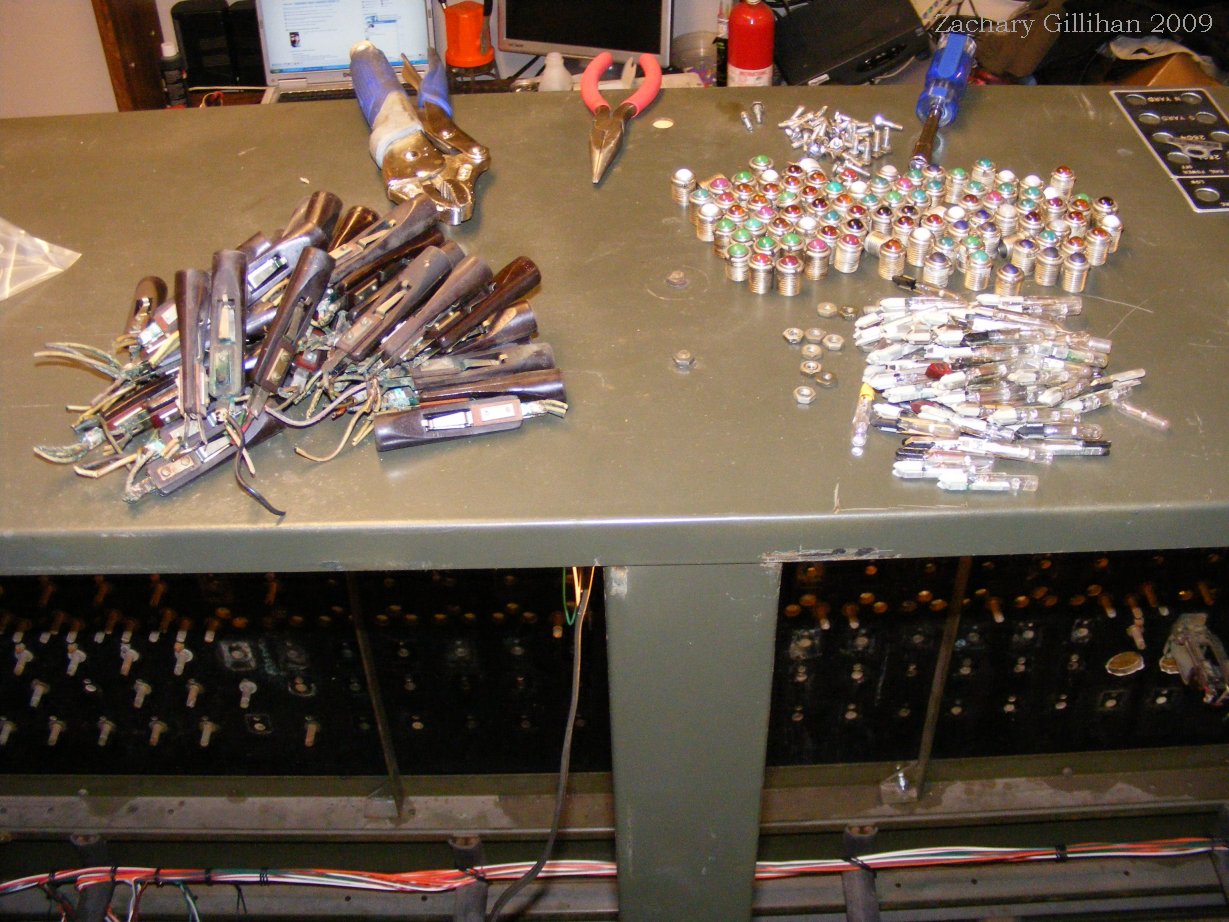

Lamps removed.

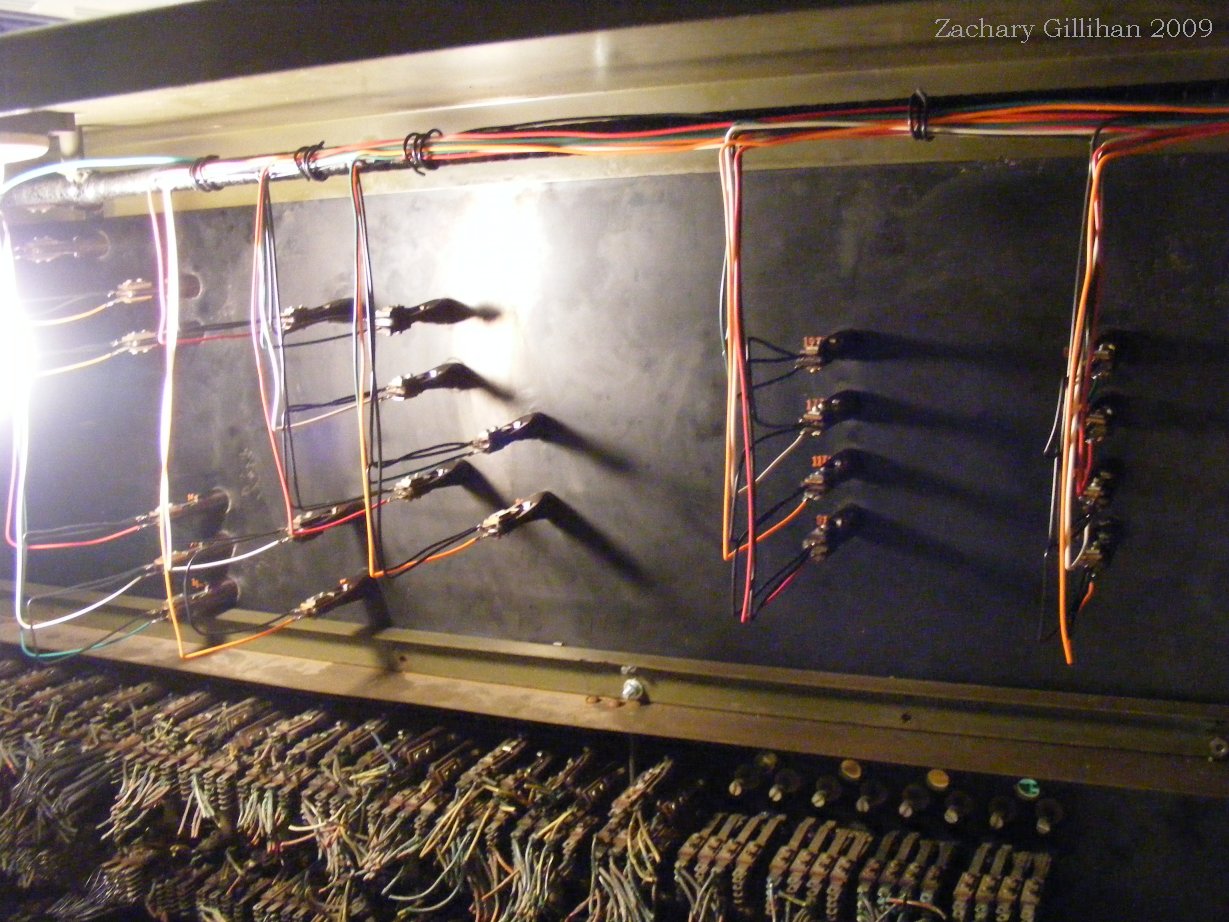

Rewired and terminals
installed.
Lamp test.

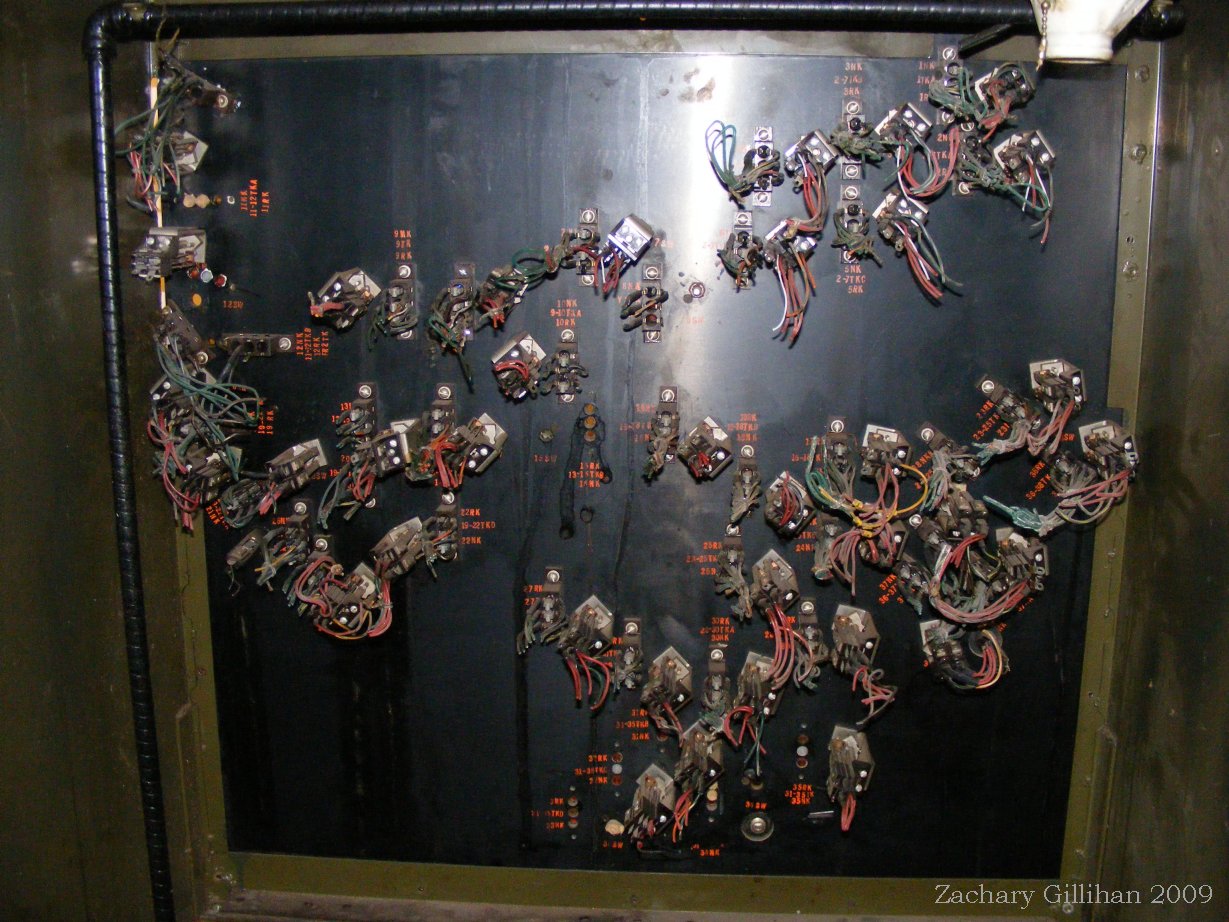

Model board terminated.
Started removing
lower levers.

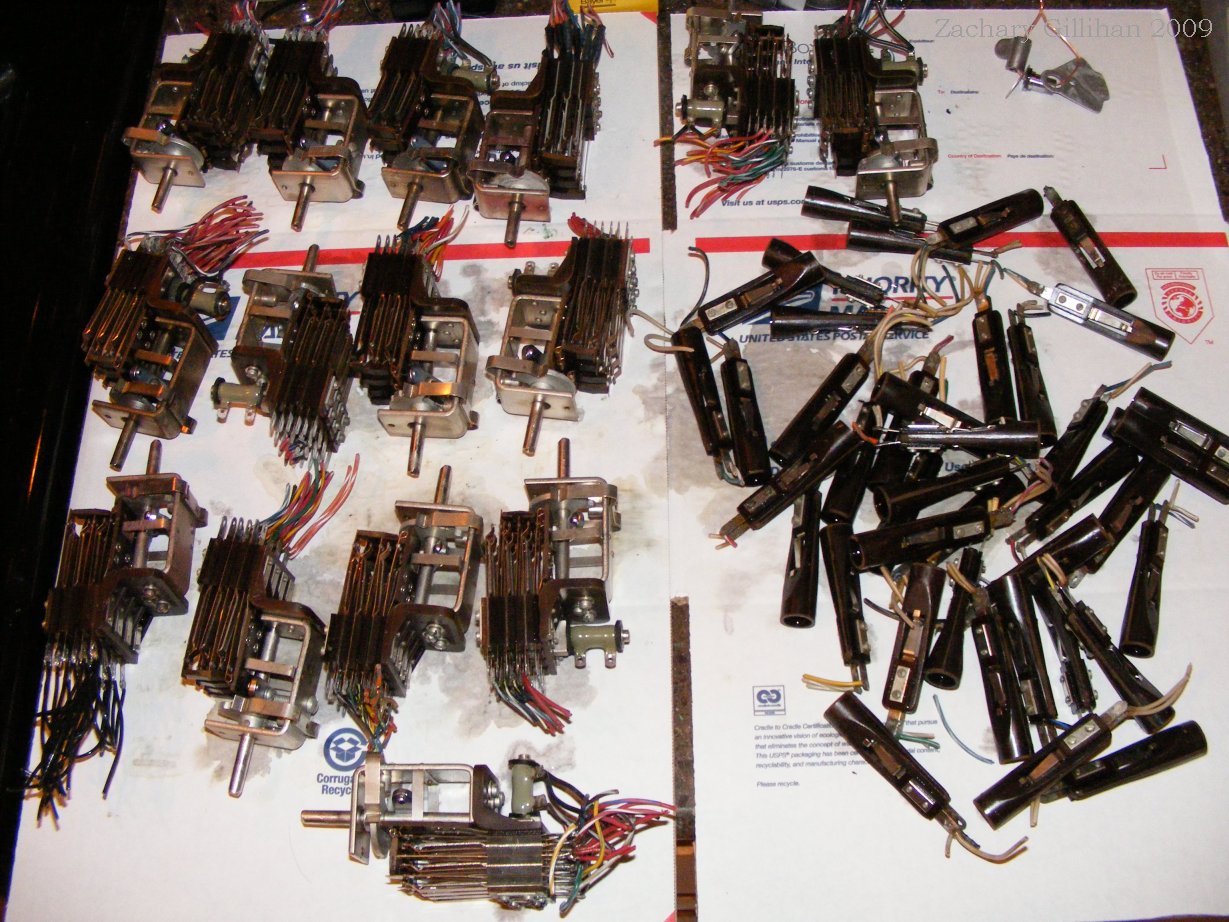

Parts after boiling.
Before and after
cleaning.

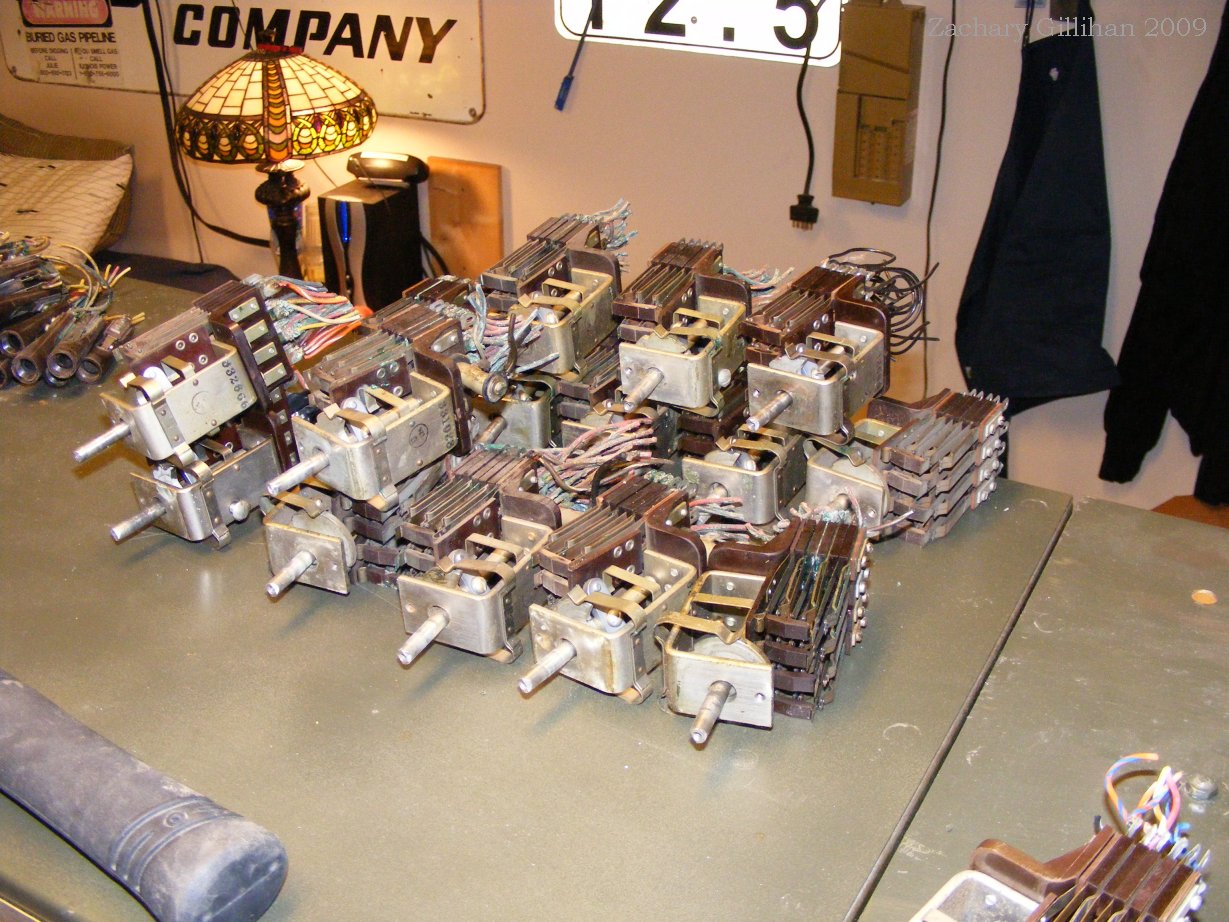

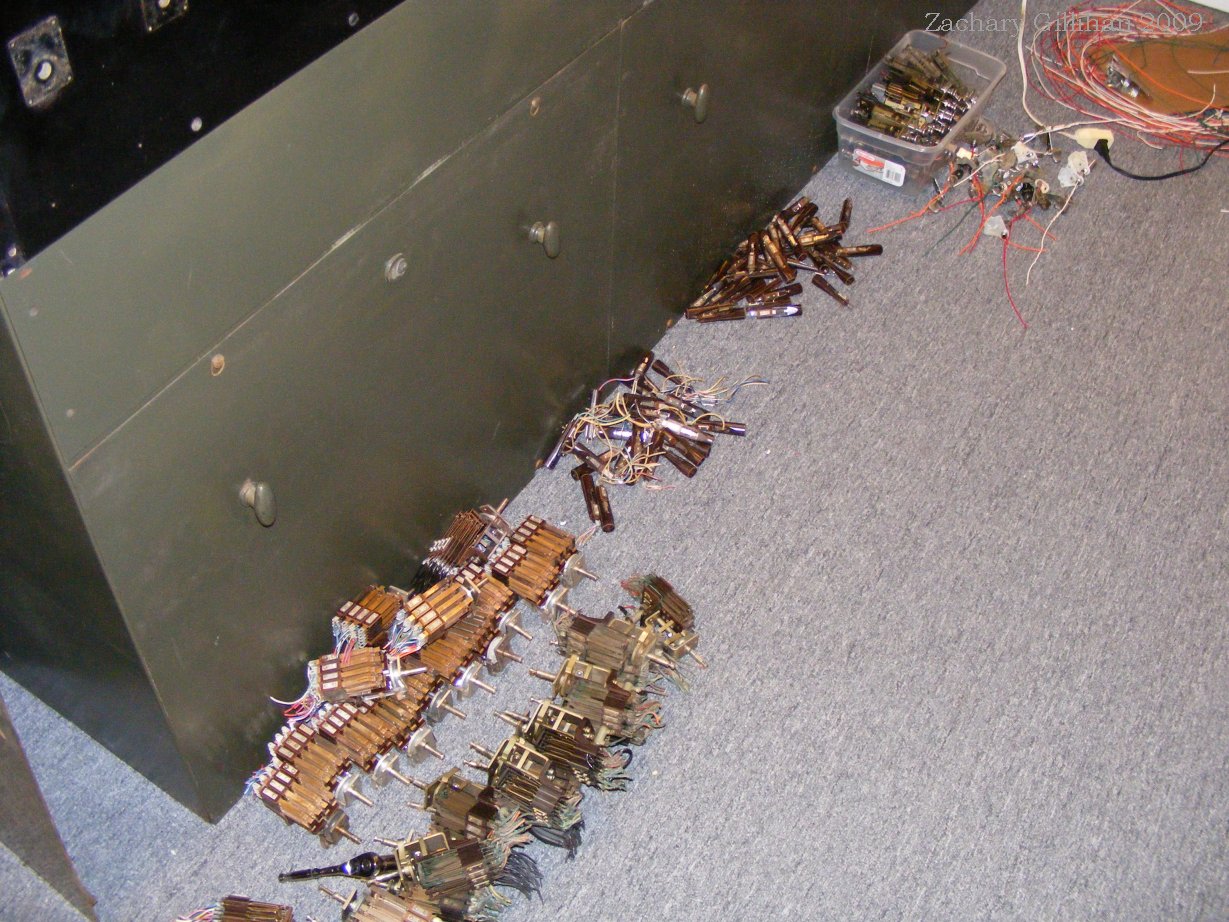

Levers removed for
cleaning.
Dirty and correded
lever sets.

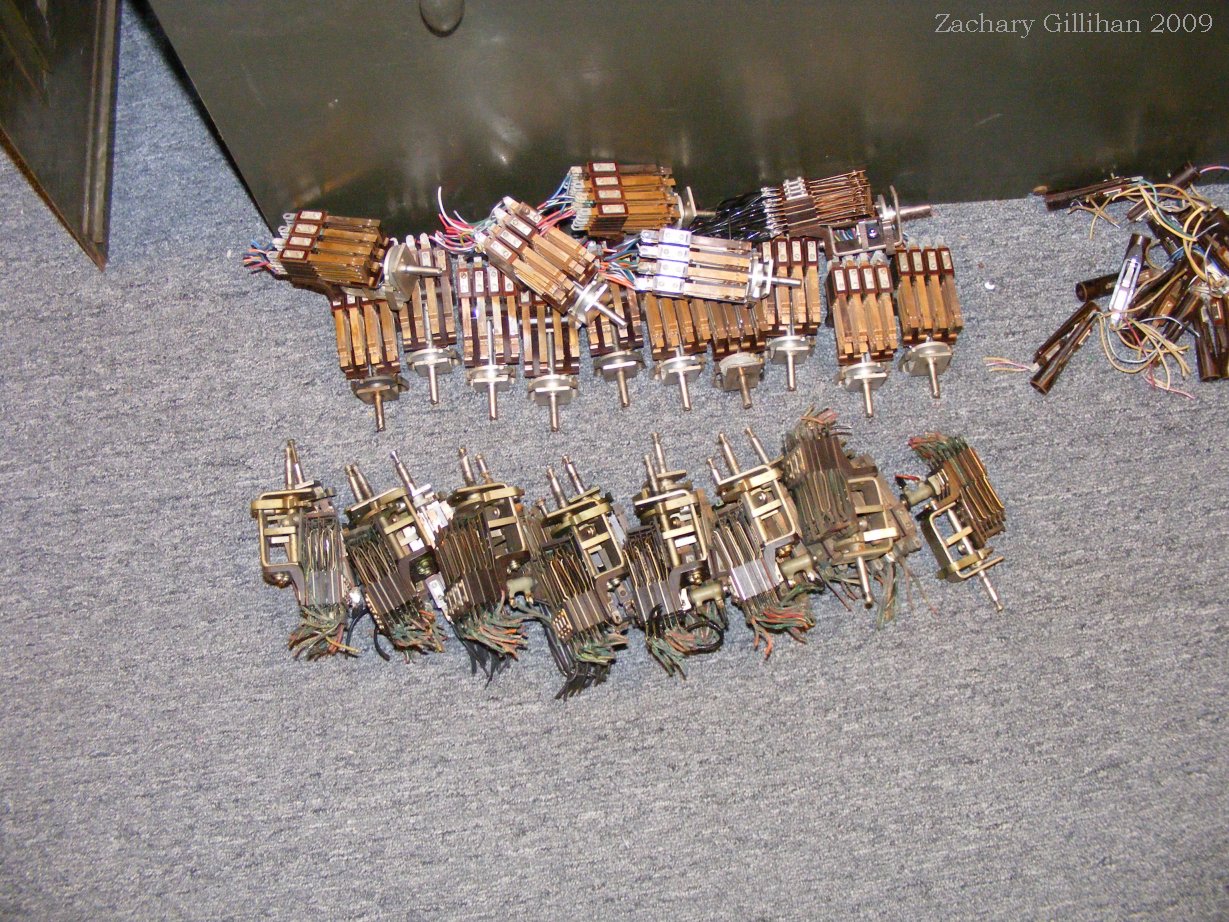

Parts after cleaning.

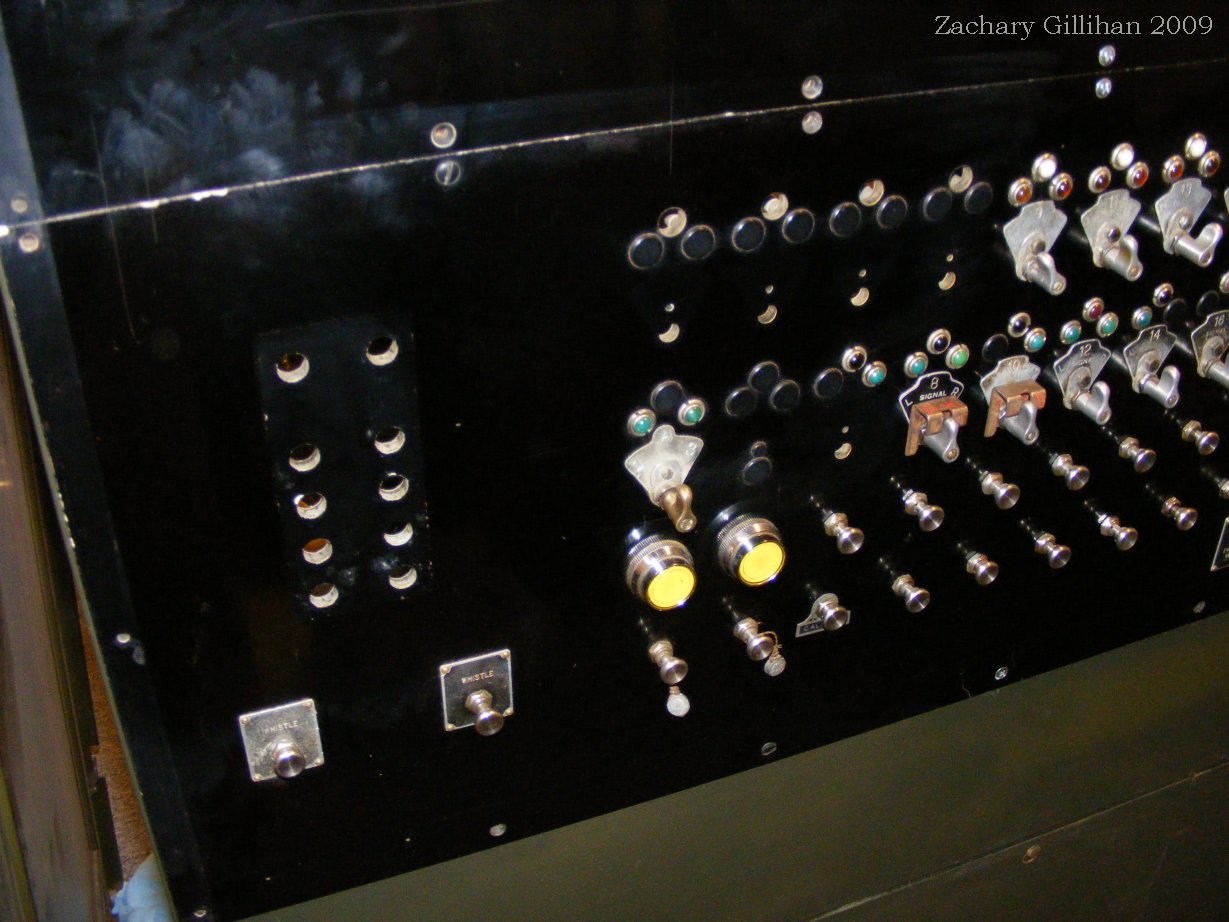

Push buttons
removed.
Dirty push
buttons.
Parts after cleaning.

Levers removed.
Clean and dirty
levers.

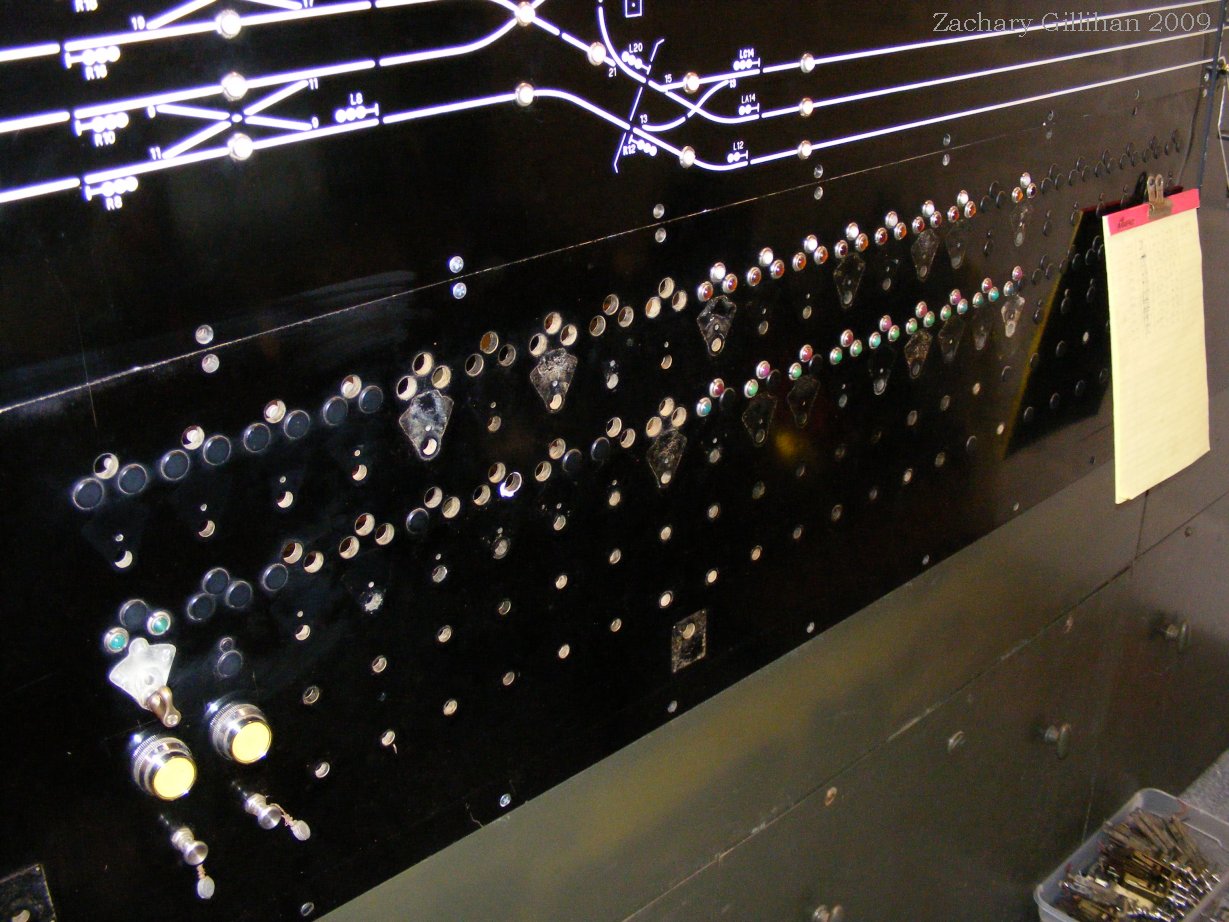

Lamps and lights.

Everything removed.


Getting ready
boil.

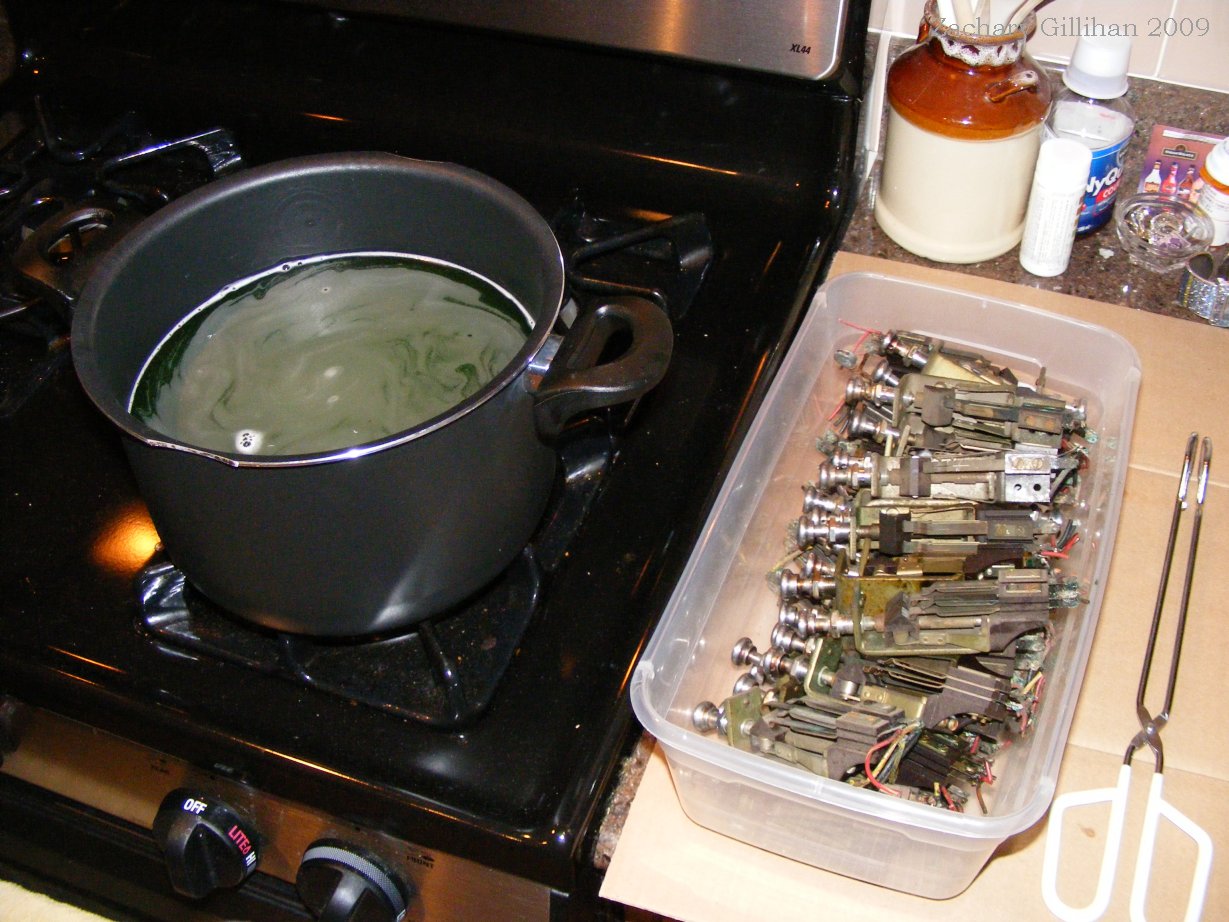

Parts boiling.
