Project #0736, Page 4
Page 1 Page 2 Page 3 Page 4
Page 5

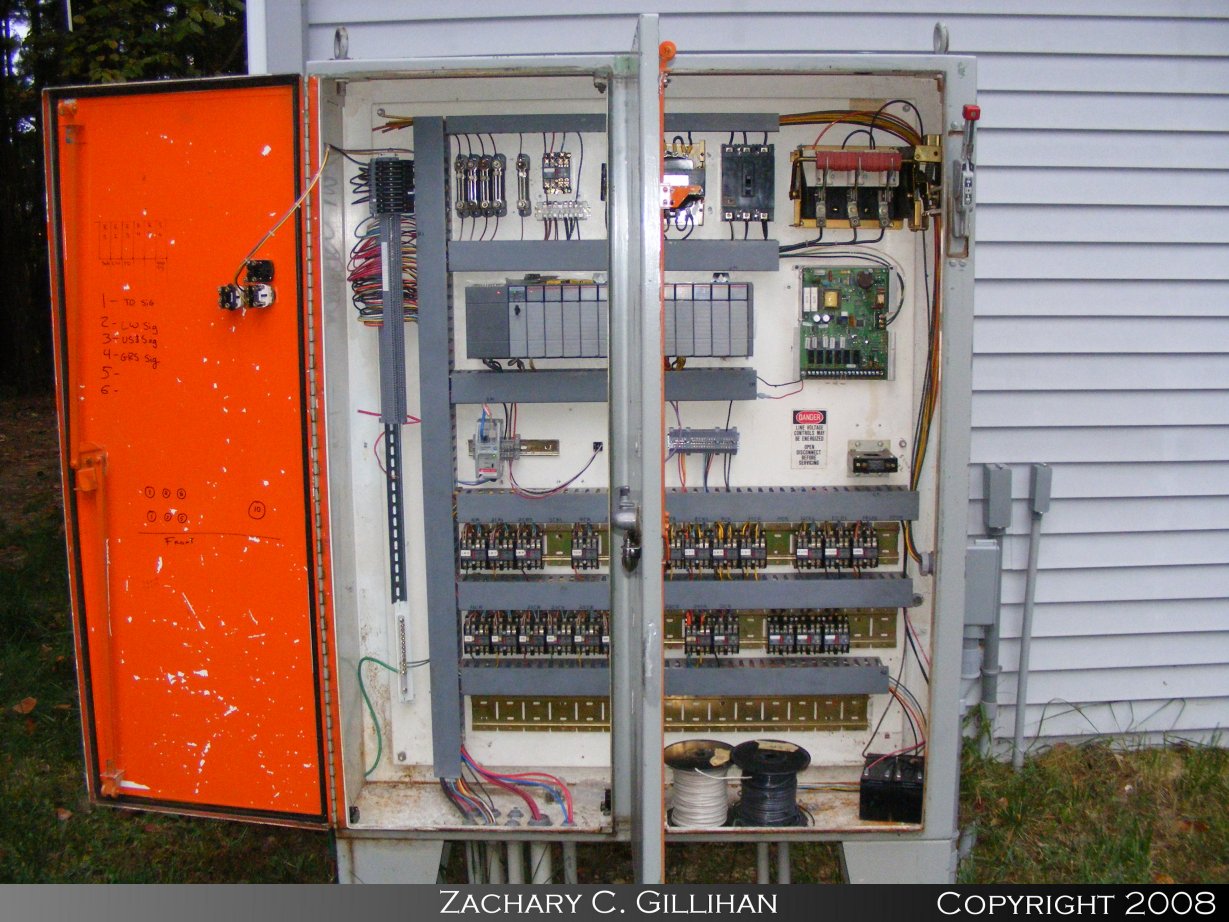

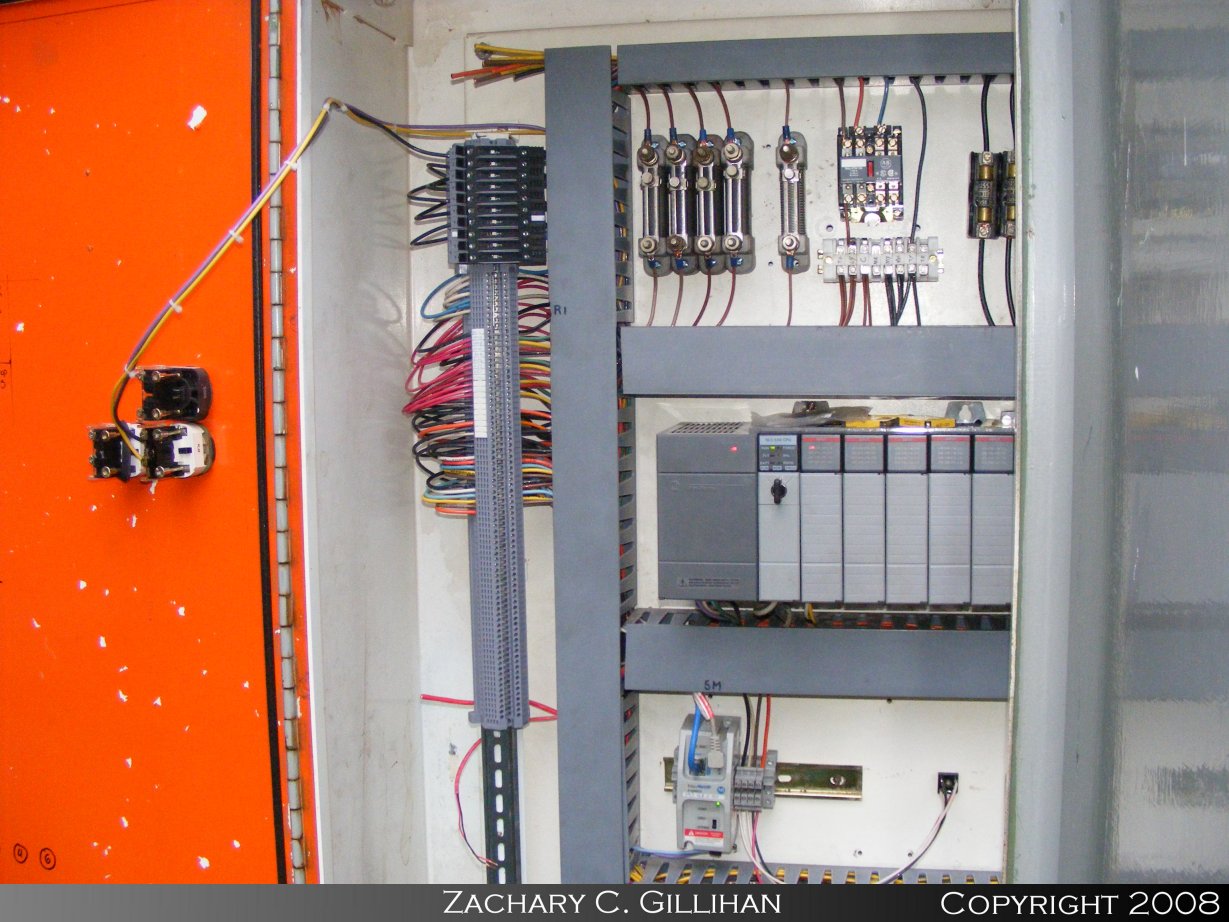

Project #0736 is placing several more signals and installing the cabinets to control them plus the controls. We are going to be replacing the old conduit with new. We are using a Allen Bradley SLC-500 to control the signal contactors. The SLC-500 is running simple timming programs for each signal, this way we can change the programming when we wish and add more signals when ever we want.

Jake pours concrete.
Oops.

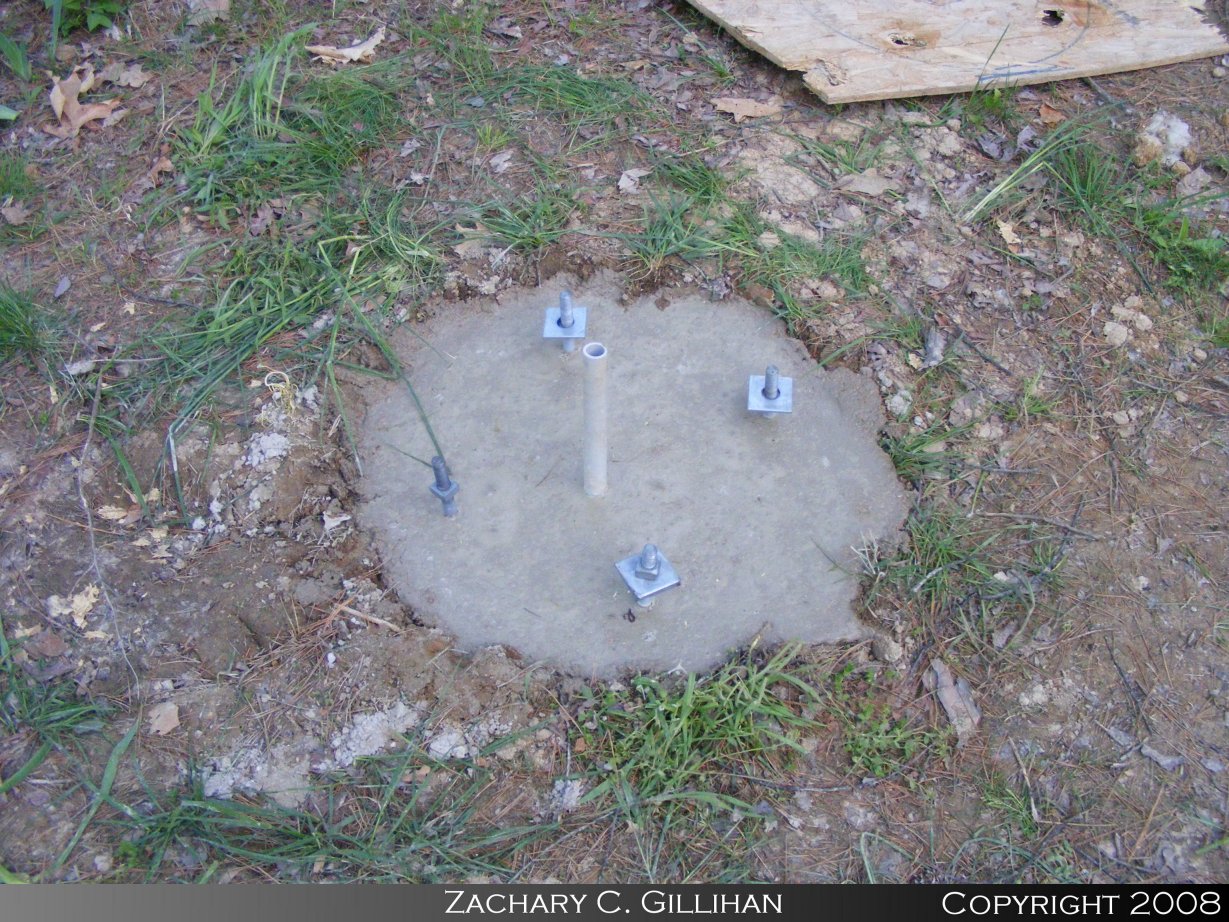

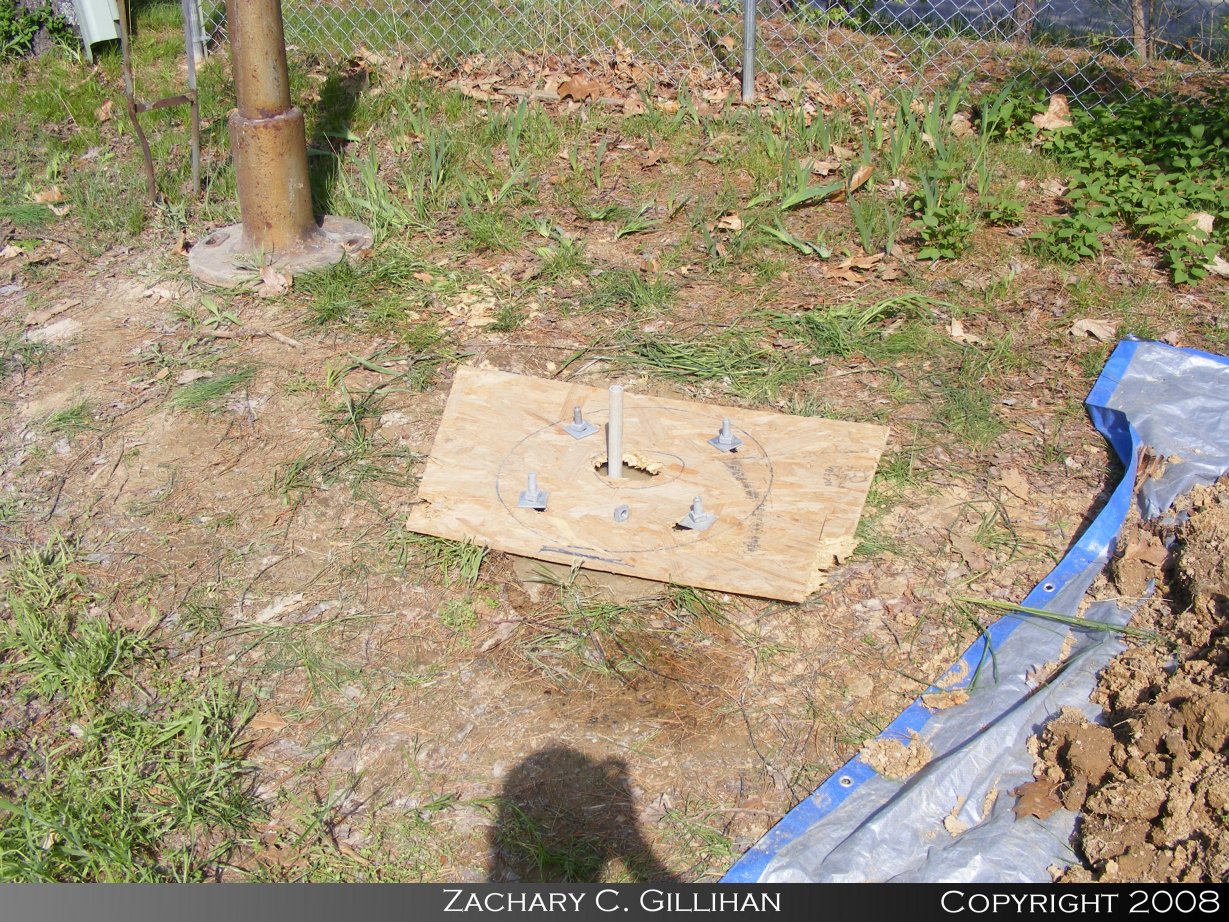

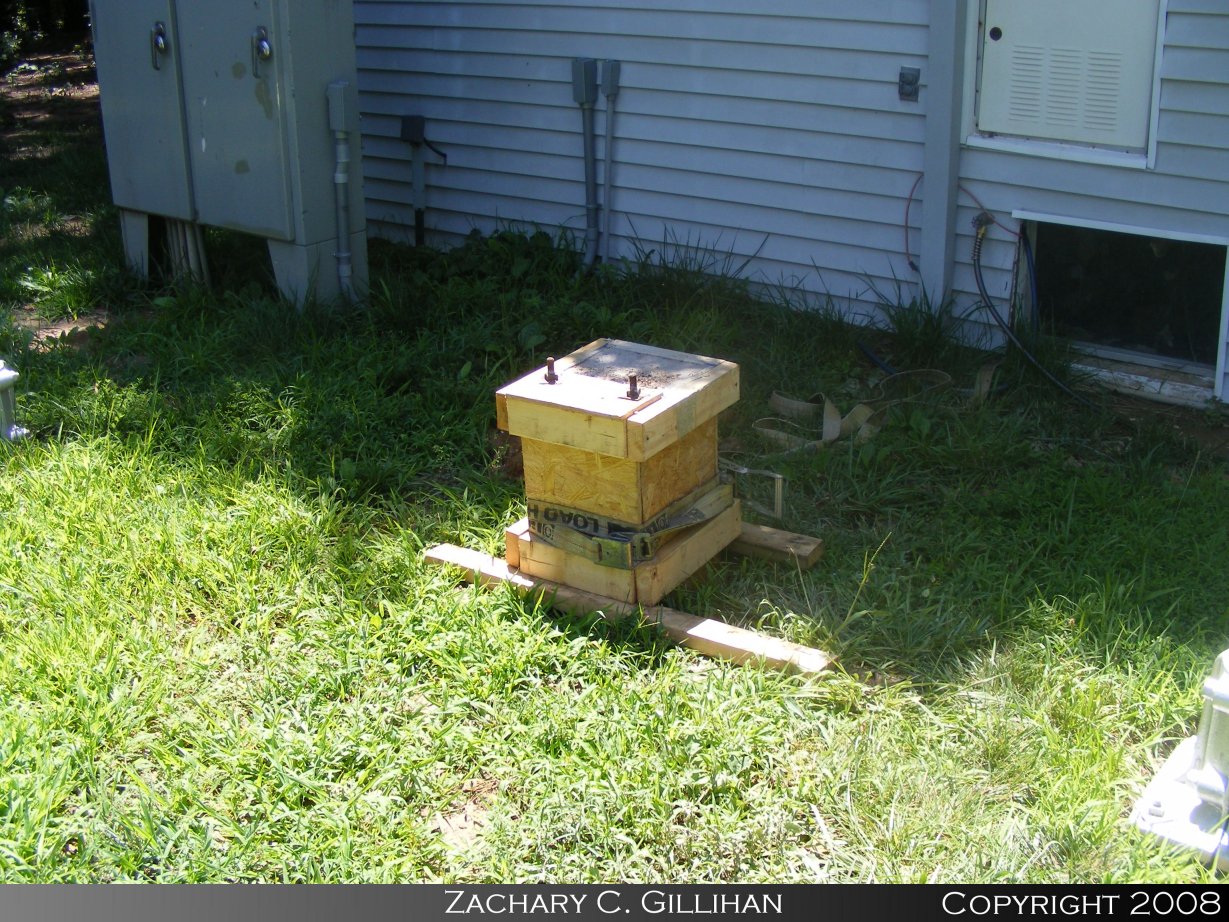

Concrete form. Forms removed.

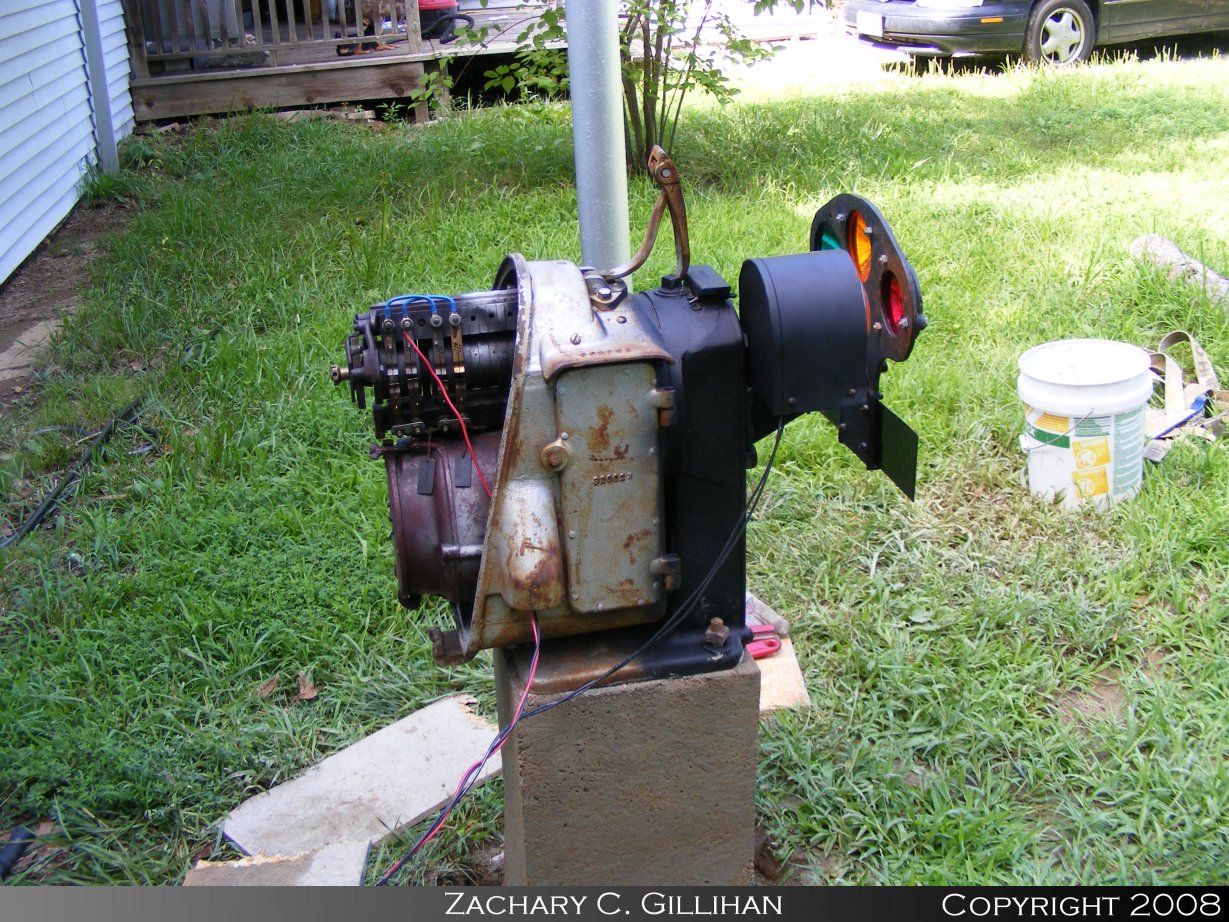

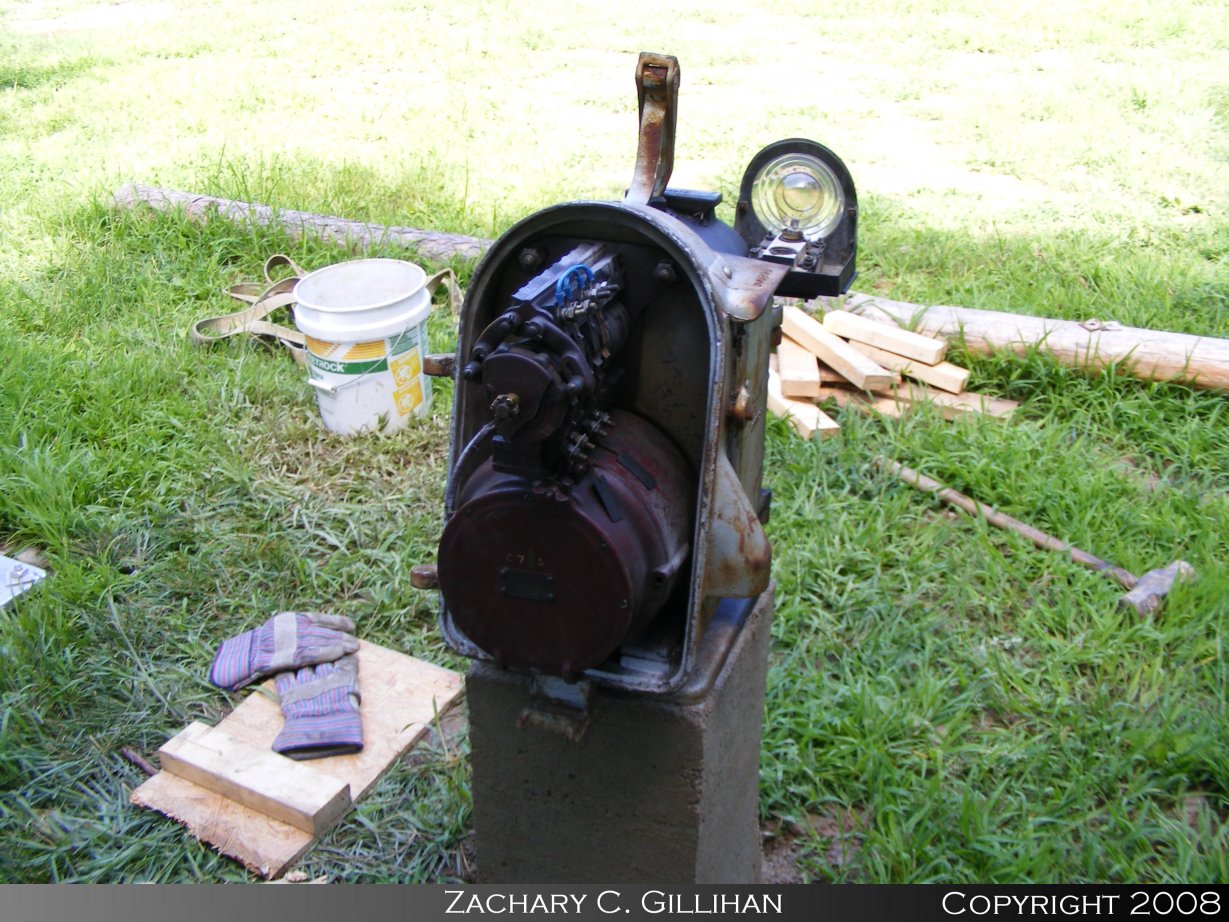

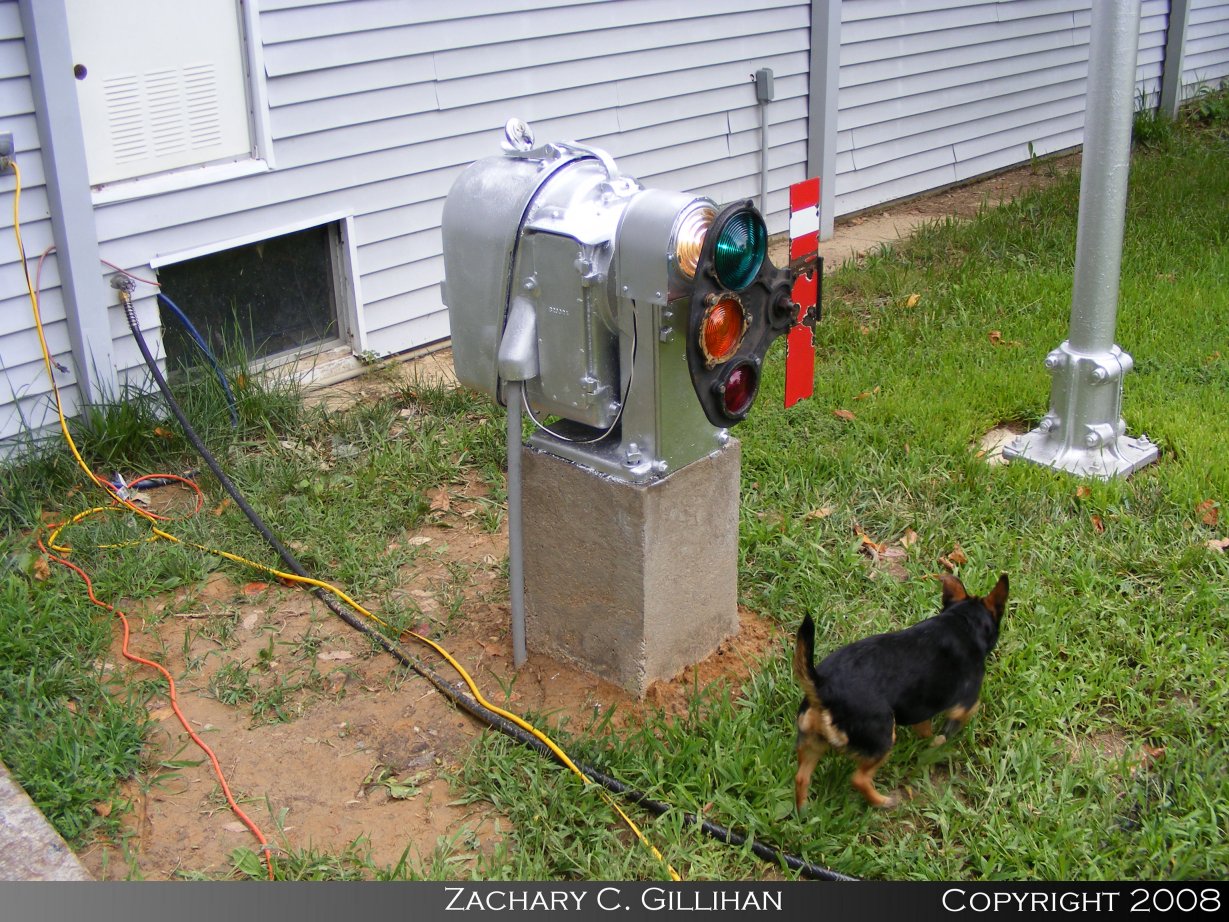

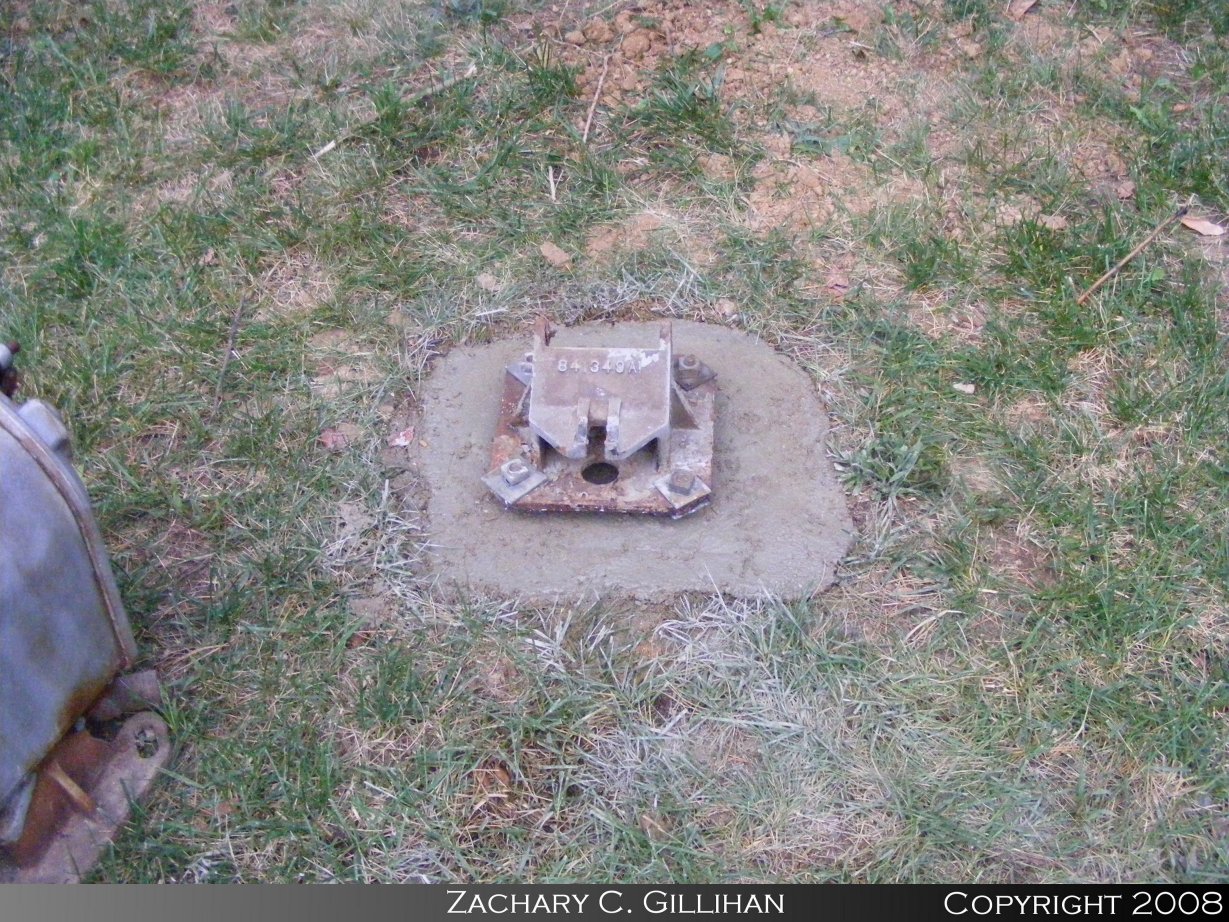

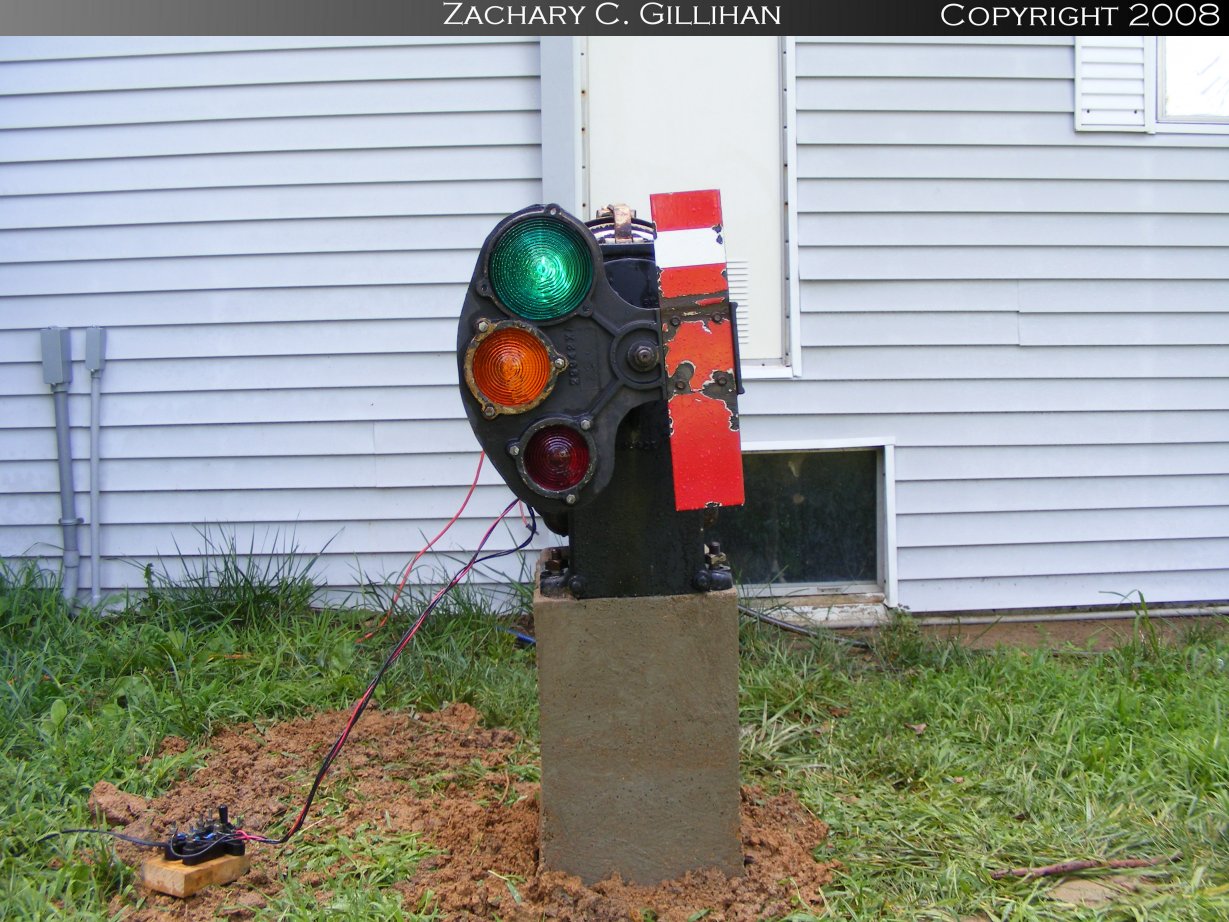

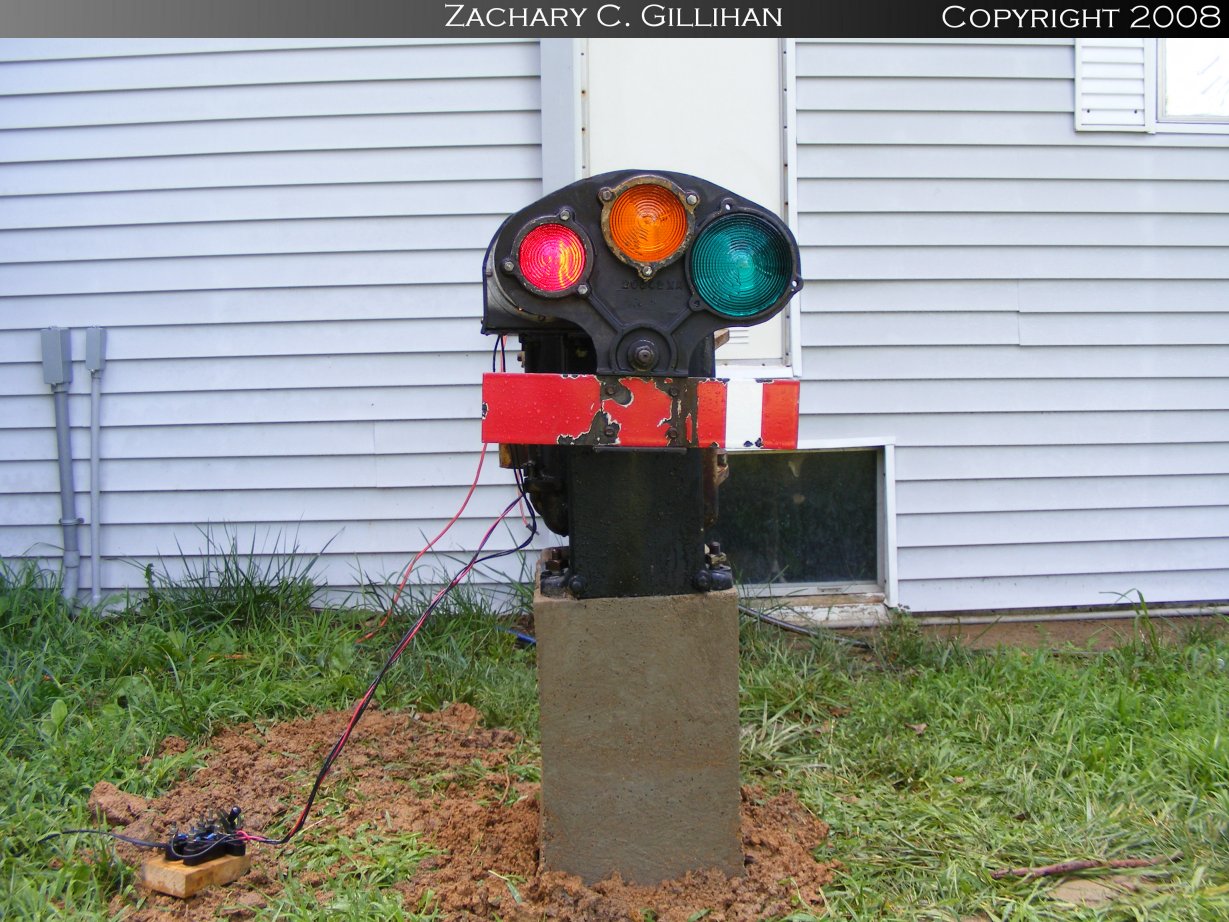

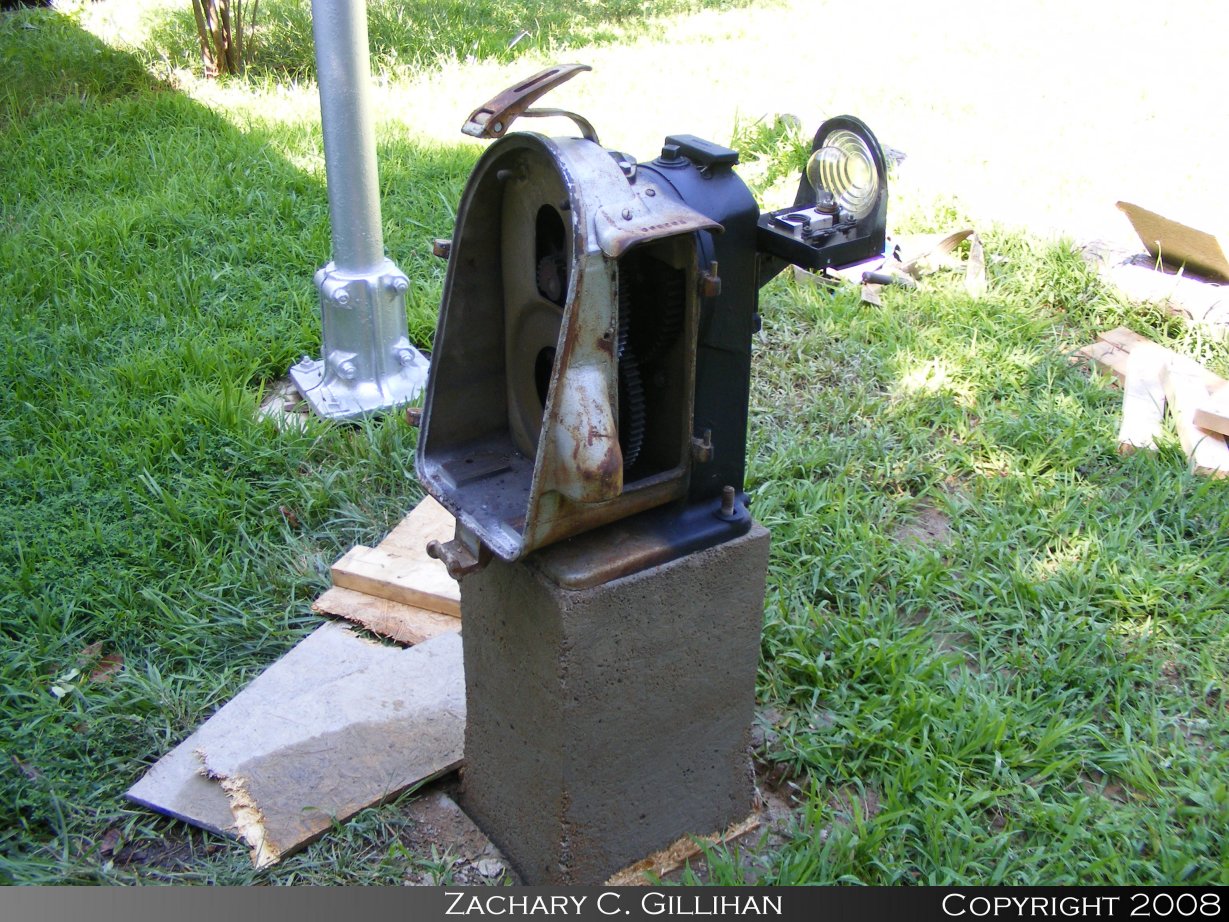

Semaphore set. Guts installed.

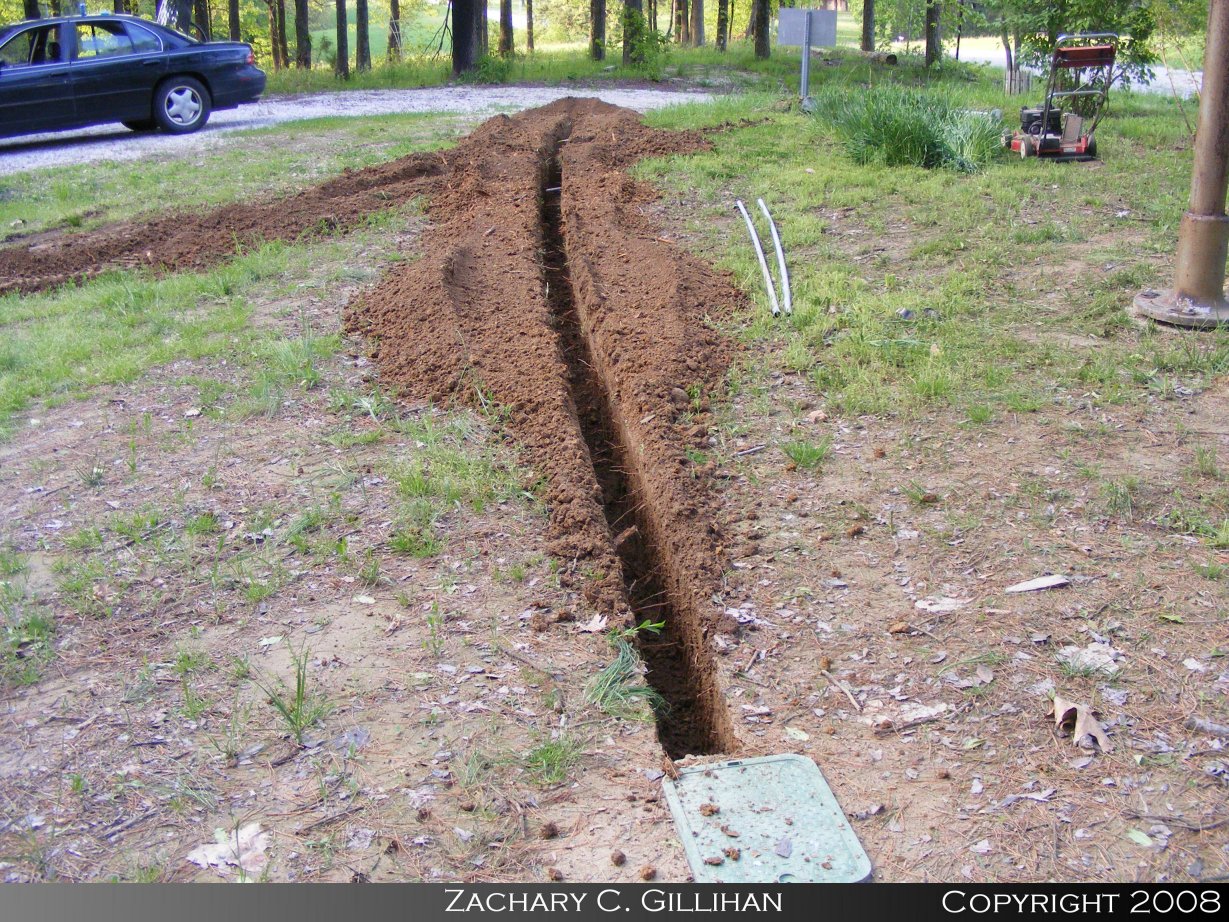

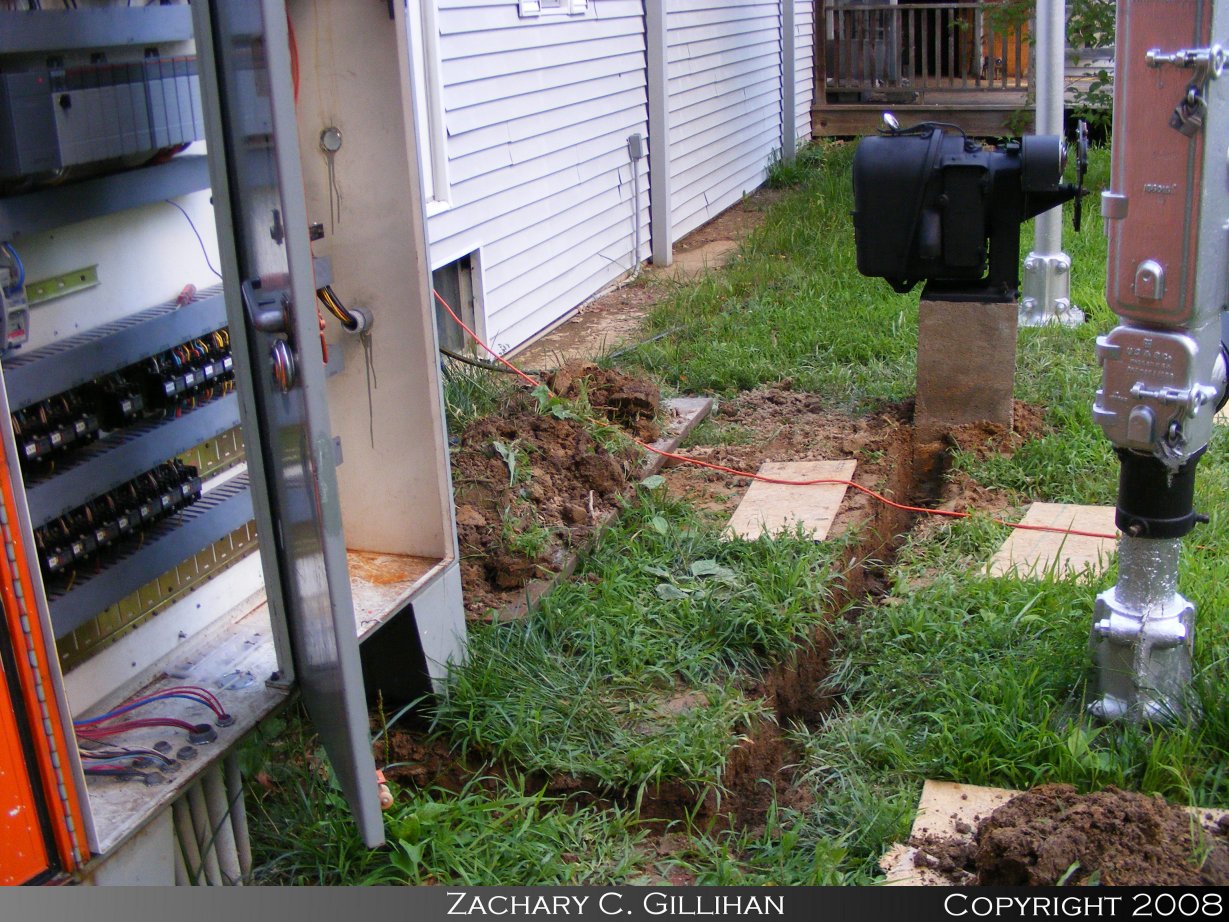

Trench For Conduit

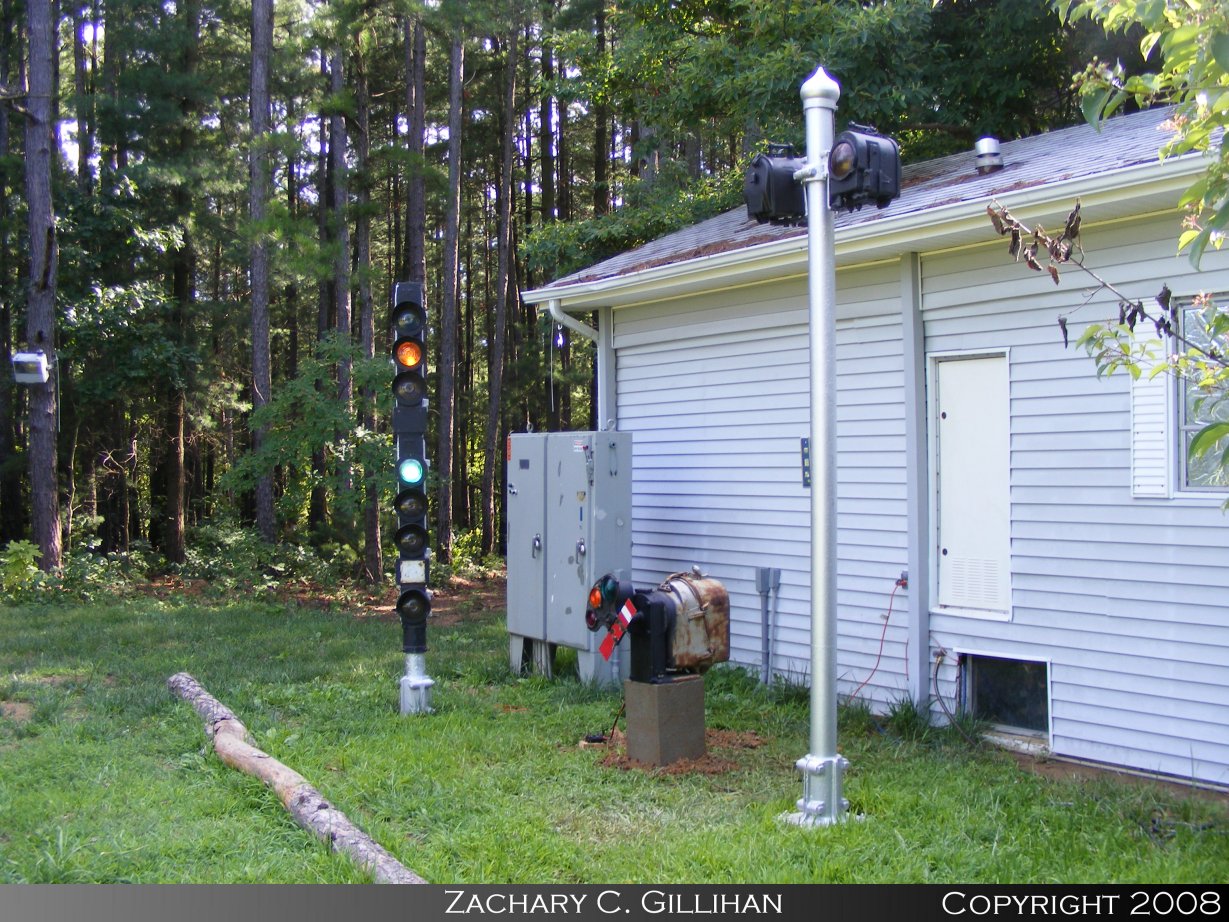

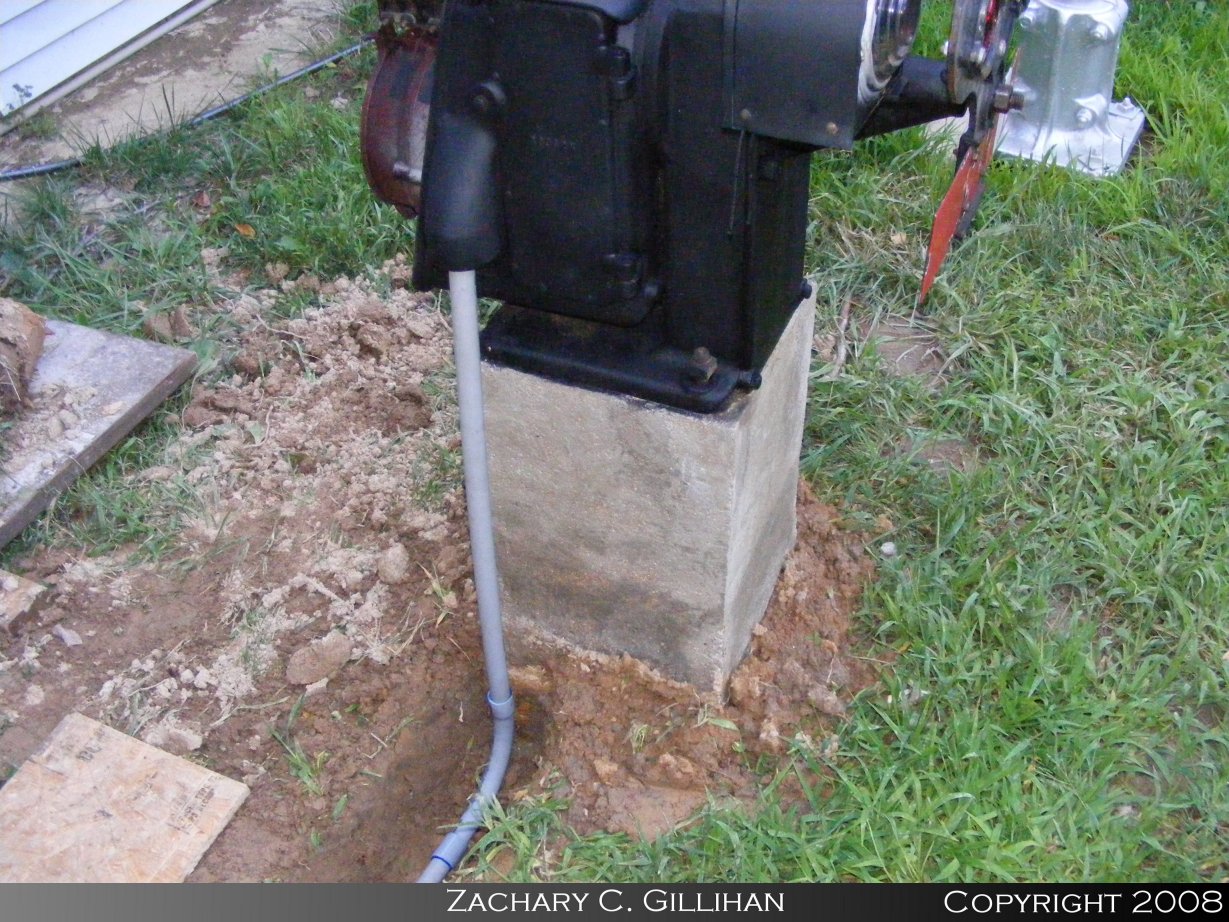

Conduit Installed Wired Up Painted Silver Rectifier Installed

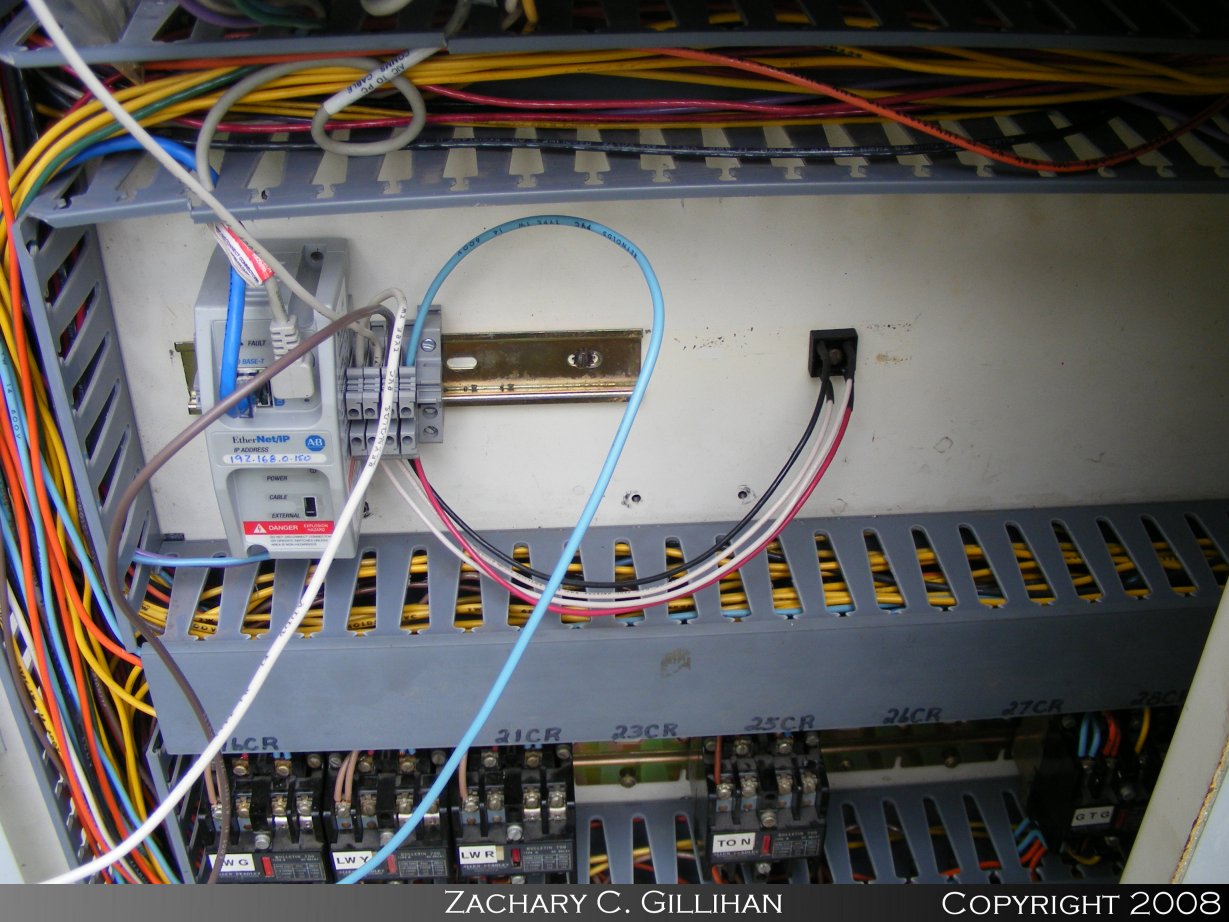

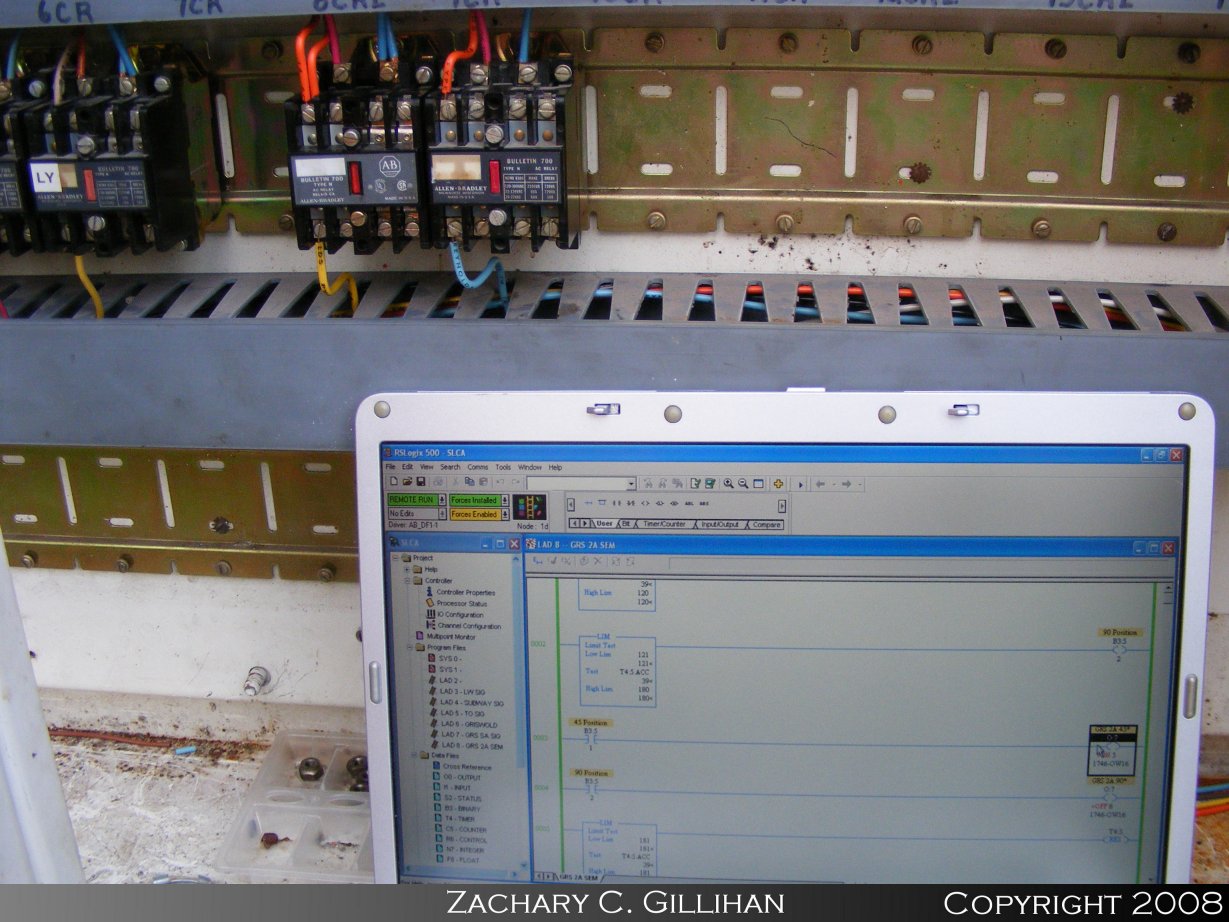

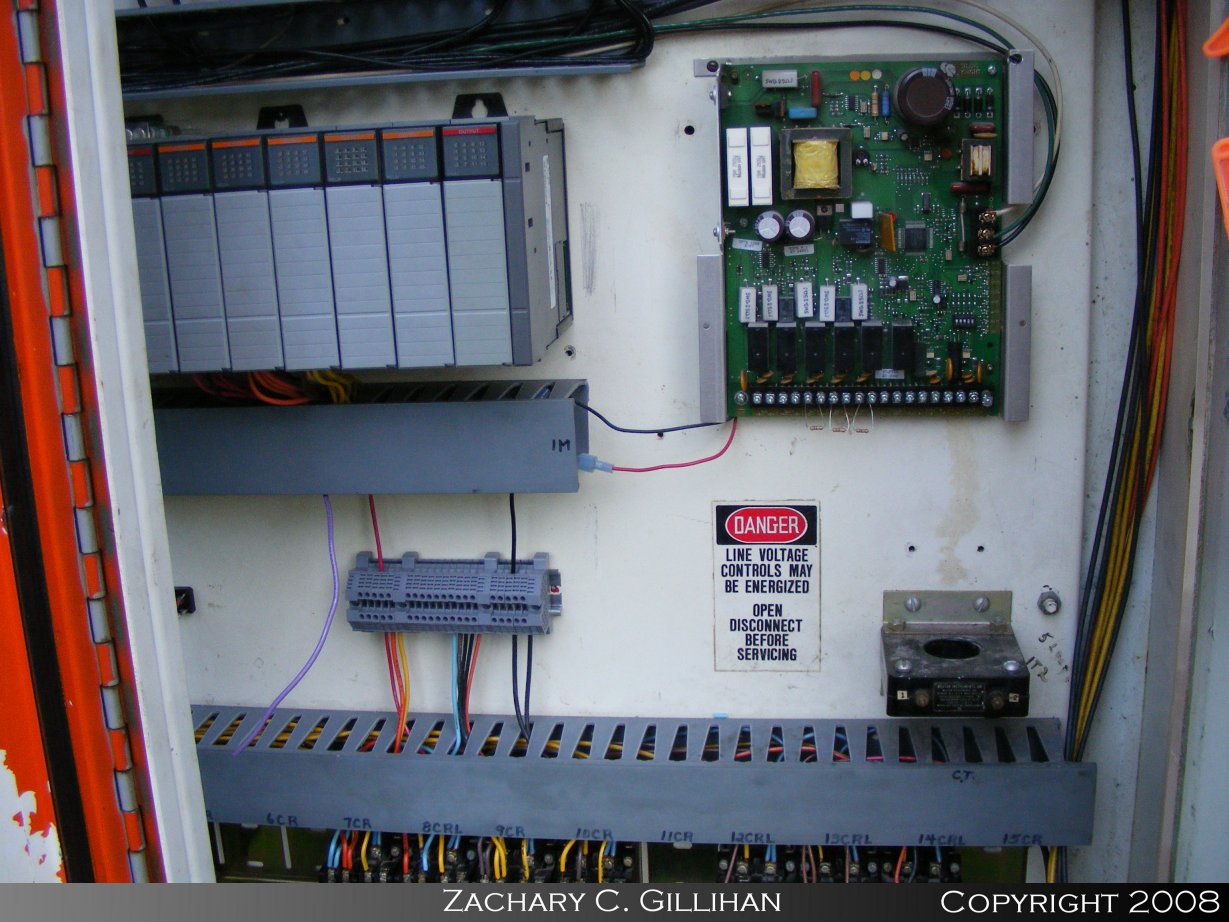

Lighting Relay Programming The PLC Semaphore Relays It Works!
Motor car indicator installed. Installed new buss bar. Foundation for triple stack searchlight.

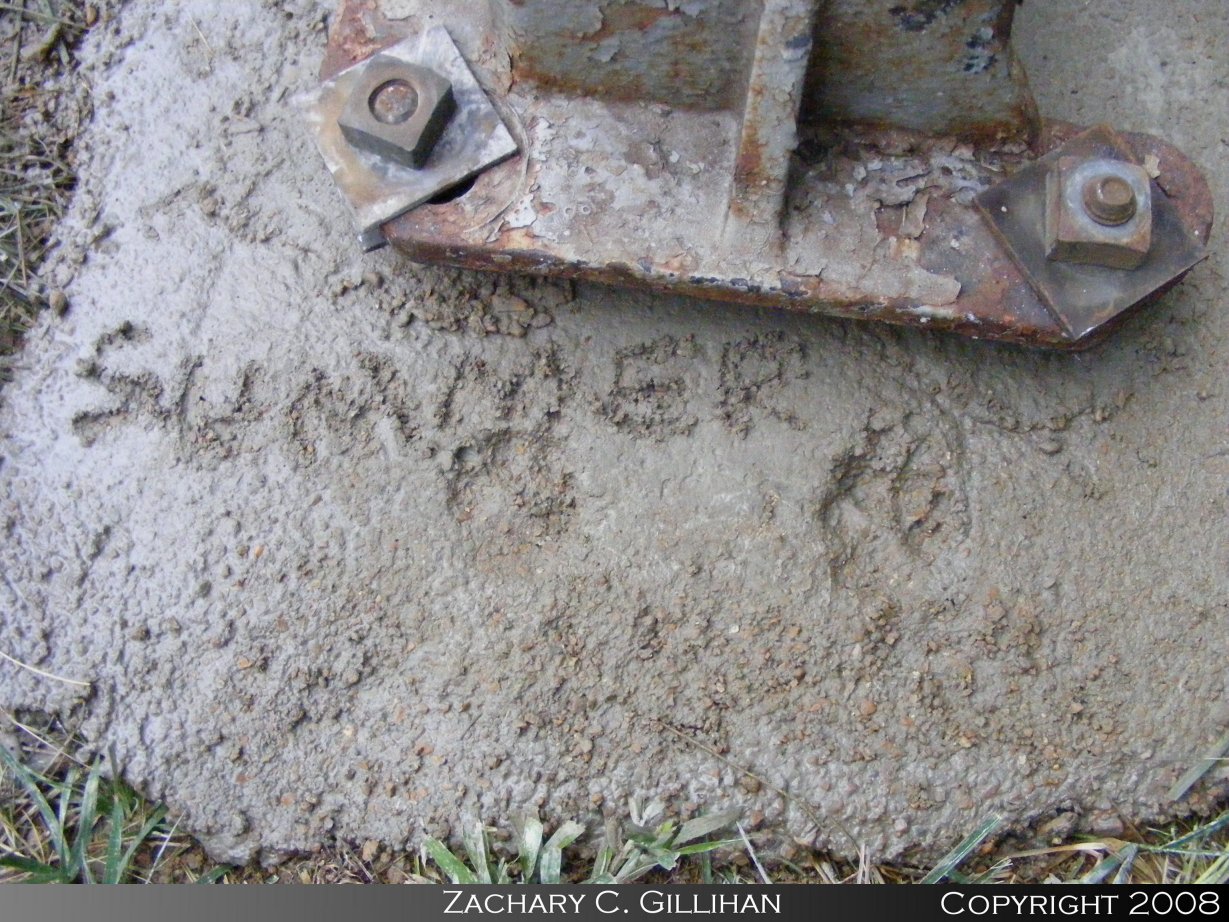

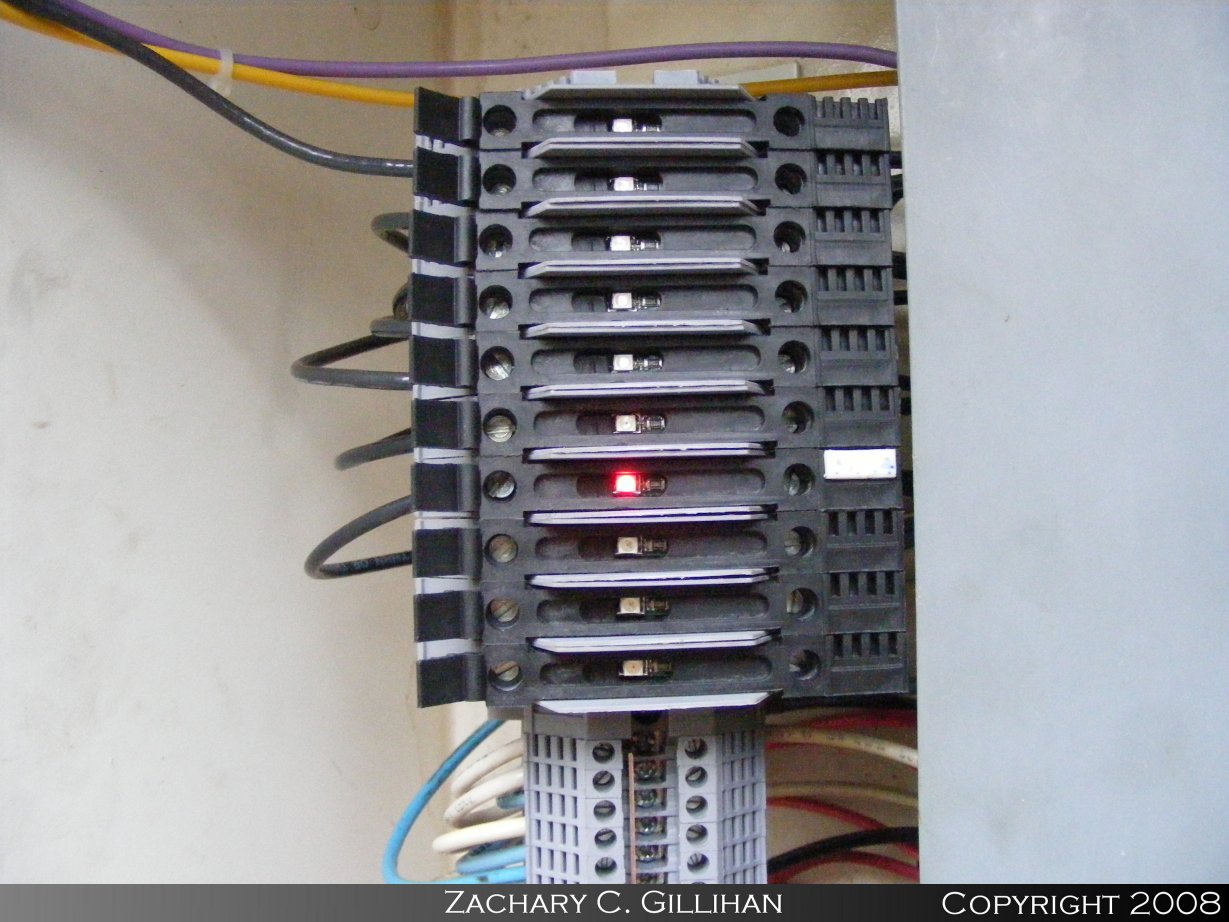

Summer's paw prints. New terminals installed. New fuse blocks installed.

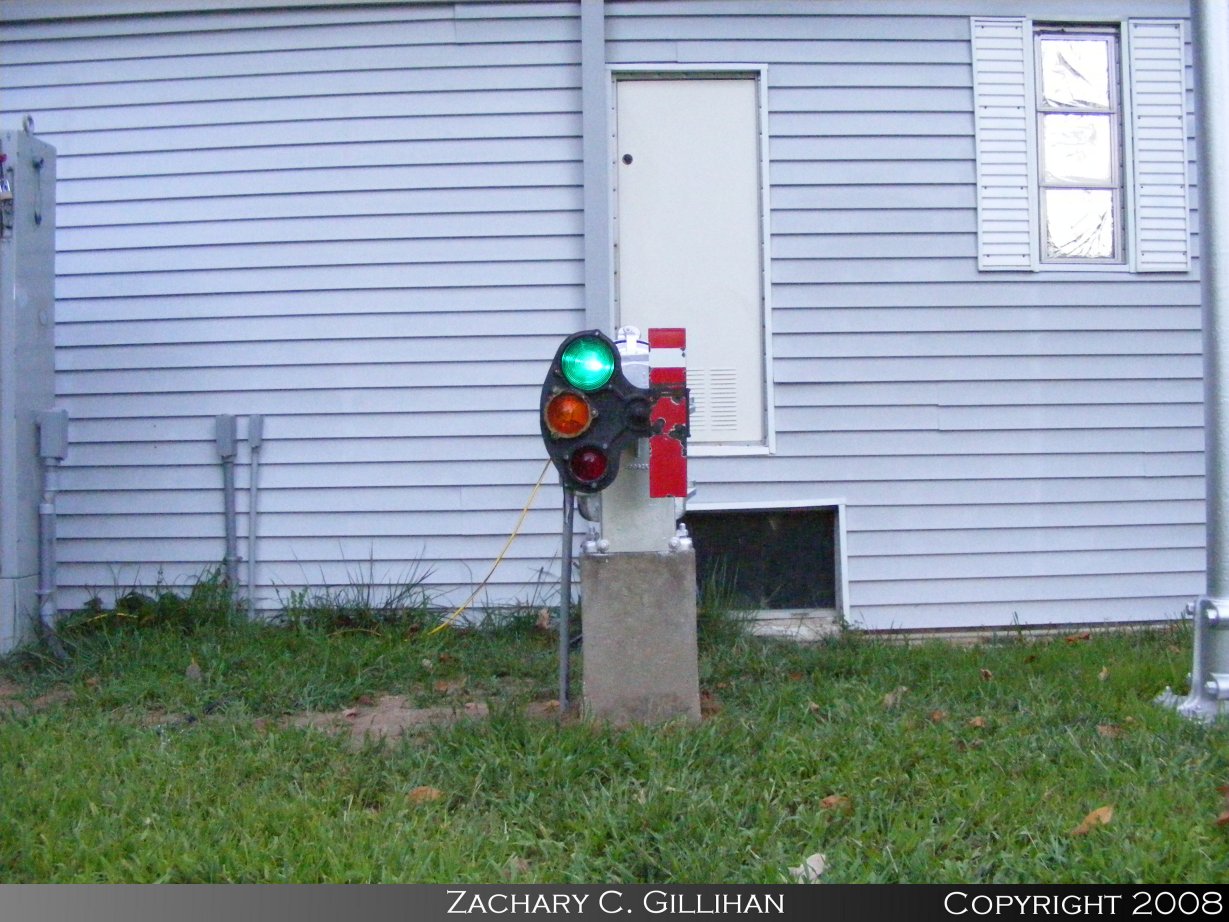

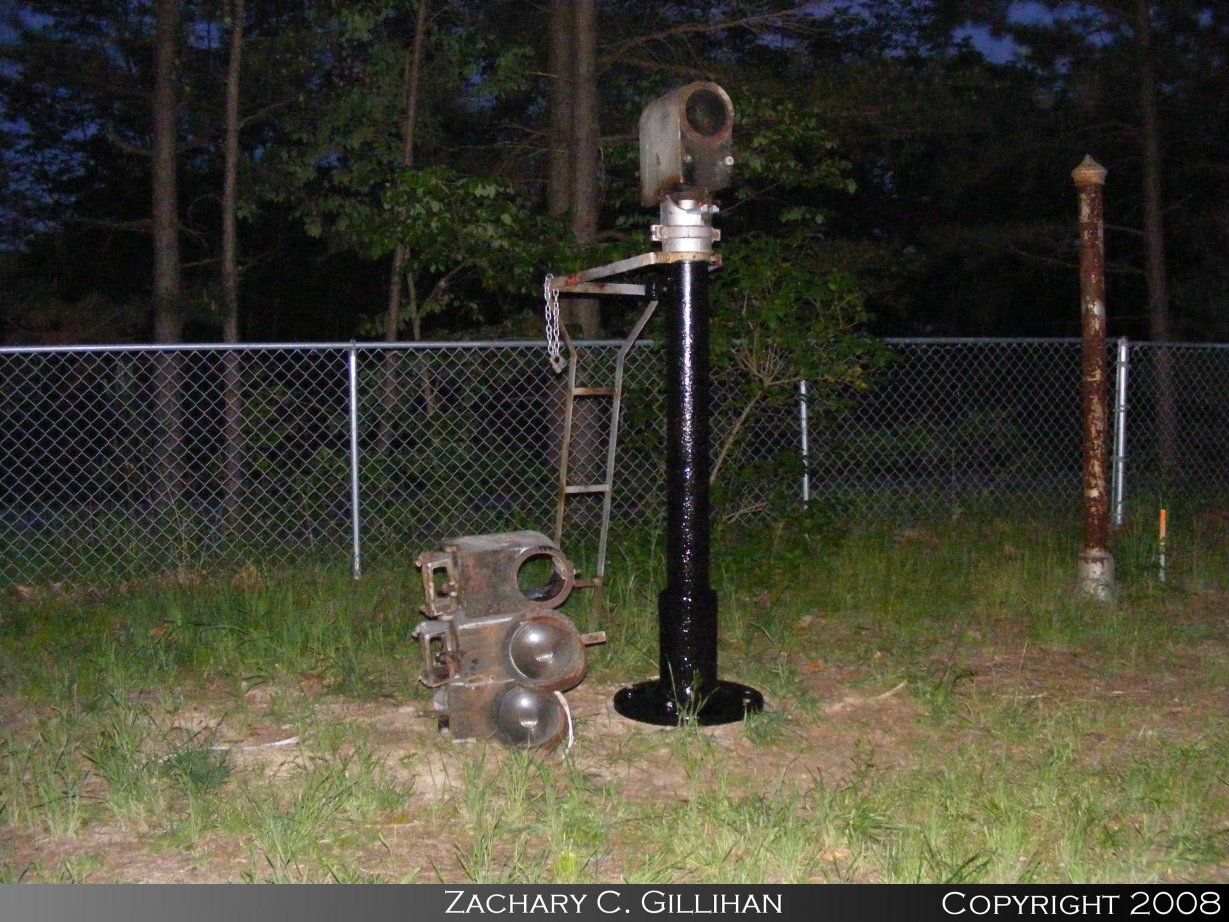

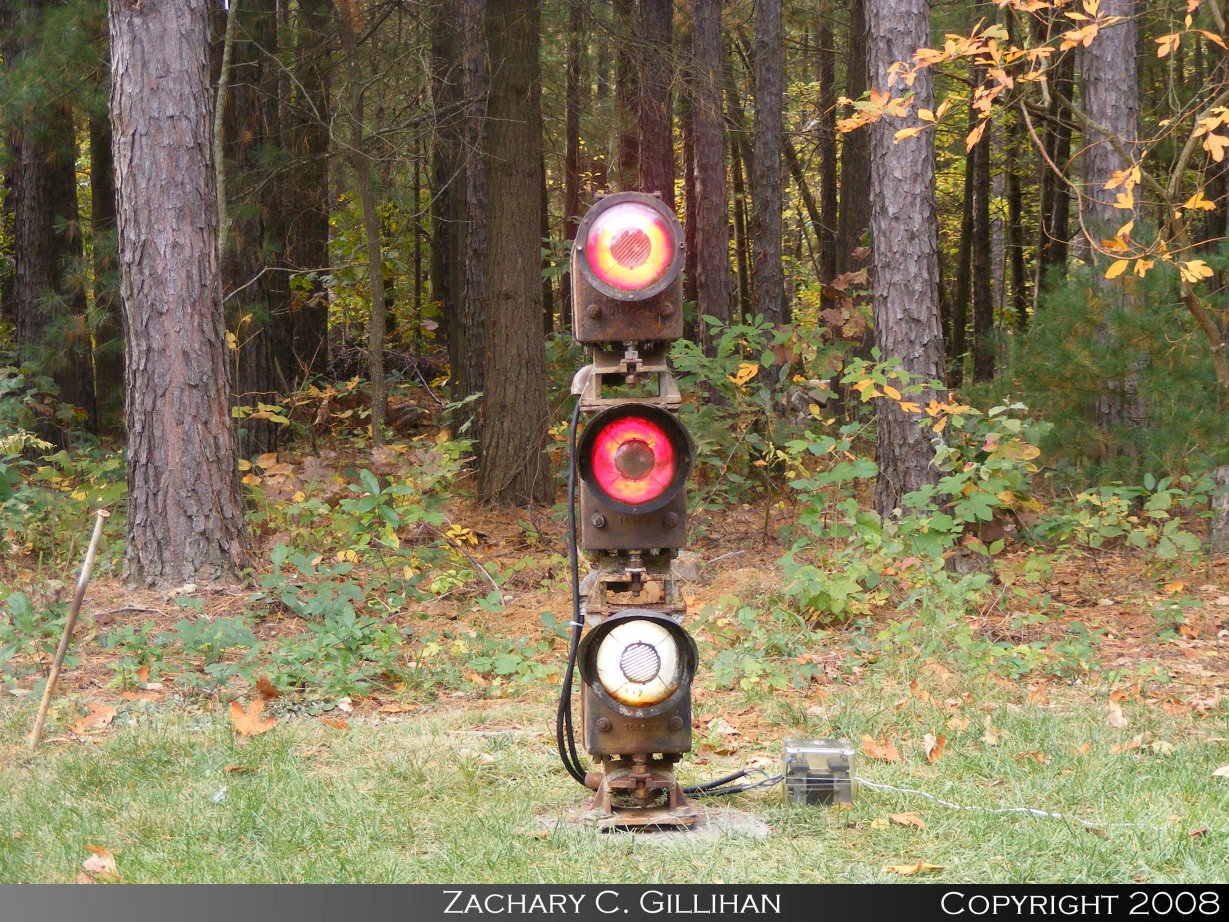

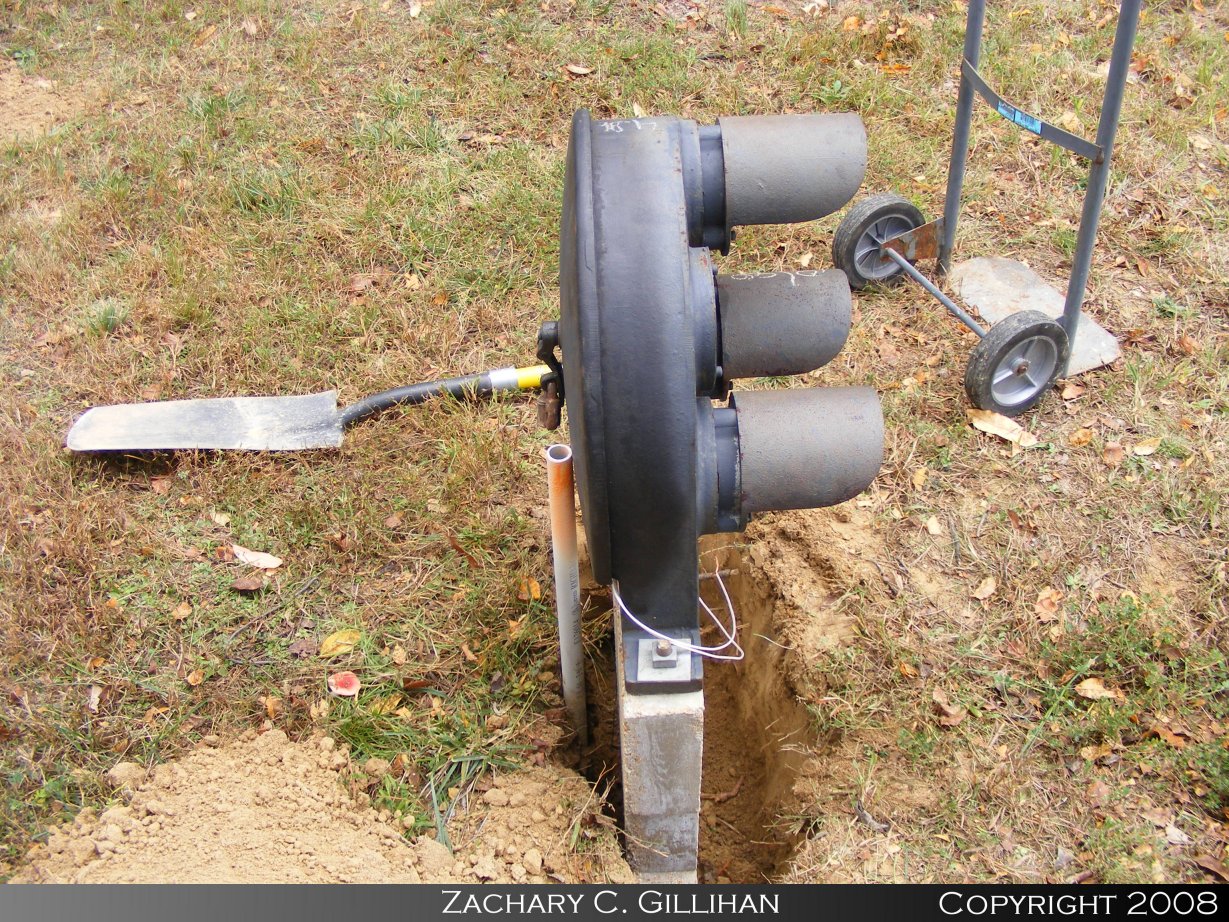

Triple stack searchlight installed. Concrete finished. Dwarf set in the hole.
