Project #0735
We are installing several signals at ZCG Utility Scrap in Beaufort Mo. This project is Phase I of several Phases. Phase I is to install items[ 1,2,3,4,7 ] and the conduit for items [ 5,6,8 ]. Phase II which is project #0736, is expected to start in the spring of 2007 and will run along side of Phase I. We did not combine them becuase of the Items we are to install and the timming. Phase II is installing items [ 5,6,8 ]. We are also wiring Item #7 which is our Main Power Transfer Cabinet. We have changed plans for the signal arrangement and are adding another cabinet which will be the Secondary Power Transfer Cabinet. This new cabinet and signals will be Project #0736. Below are the PDF files that show all the connections in the Main Power Transfer Cabinet and the proposed version:
Current Configuration
Proposed Configuration

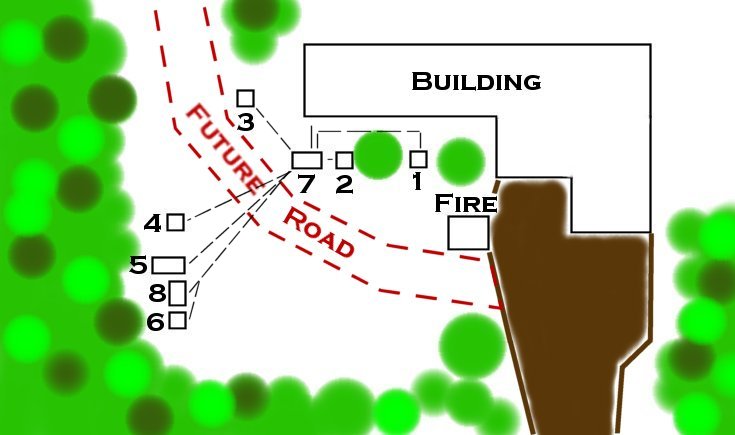

Item: 1- Train Order Signal
Item: 2- US&S Subway Signal
Item: 3- Safetran 2 Aspect Dwarf
Item: 4- L&W Signal
Item: 5- US&S Searchlight with lower Cabinet
Item: 6- Crossing Signal with Bell
Item: 7- GRS Cabinet (Power Supplies and Controllers)
Item: 8- GRS Cabinet (Crossing Controls for Item: 6)


Setting the Bolts
in the Concret
Concret is Ready
Base Installed
Base & Conduit
Installed

The Base is Set
Above the Concret
Sanded and Painted
Signal Installed
Wire Installed

Wire Installed

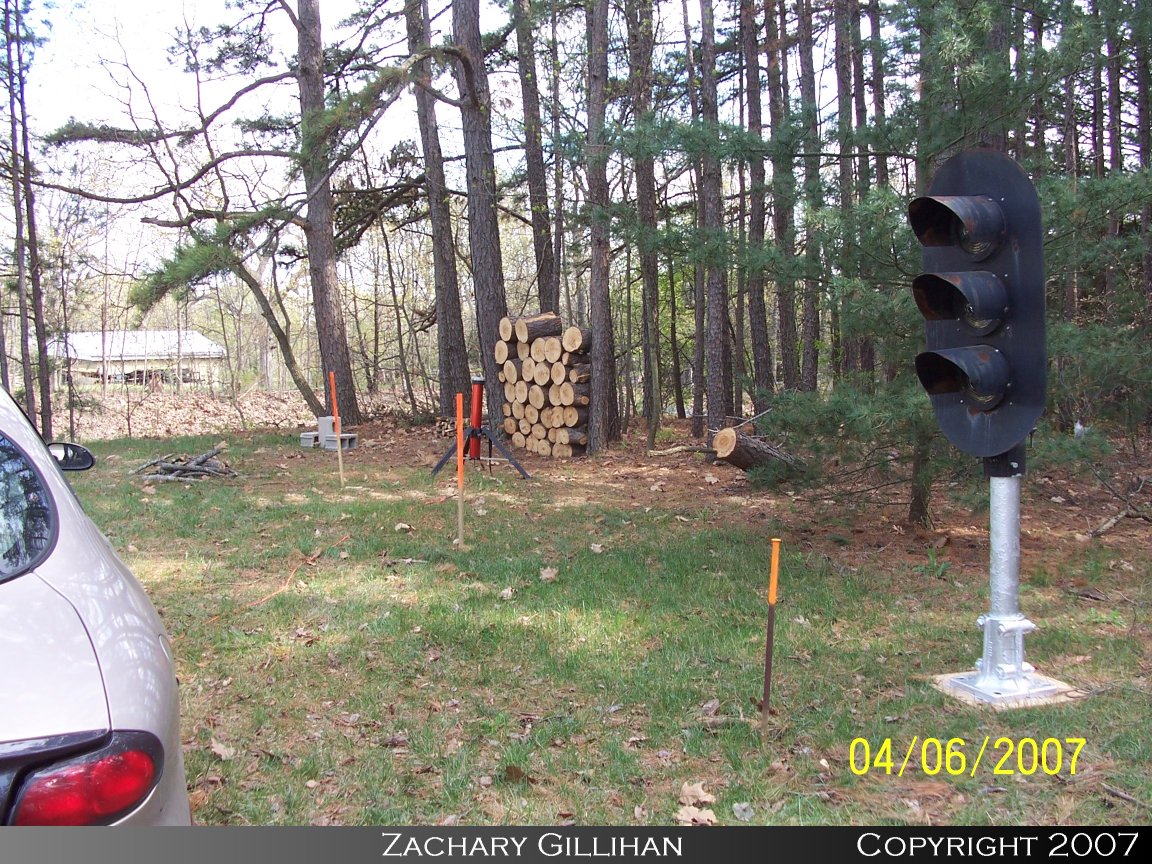

Signal Is Installed
Terminating the
Wire
Terminating the
Wire

Both Signals
L&W Waits for
Foundation
Trech Missing
2 Pipes
Footing for Item
# 7

Conduit For
the 110V
Conduit for the
TO Signal
Digging

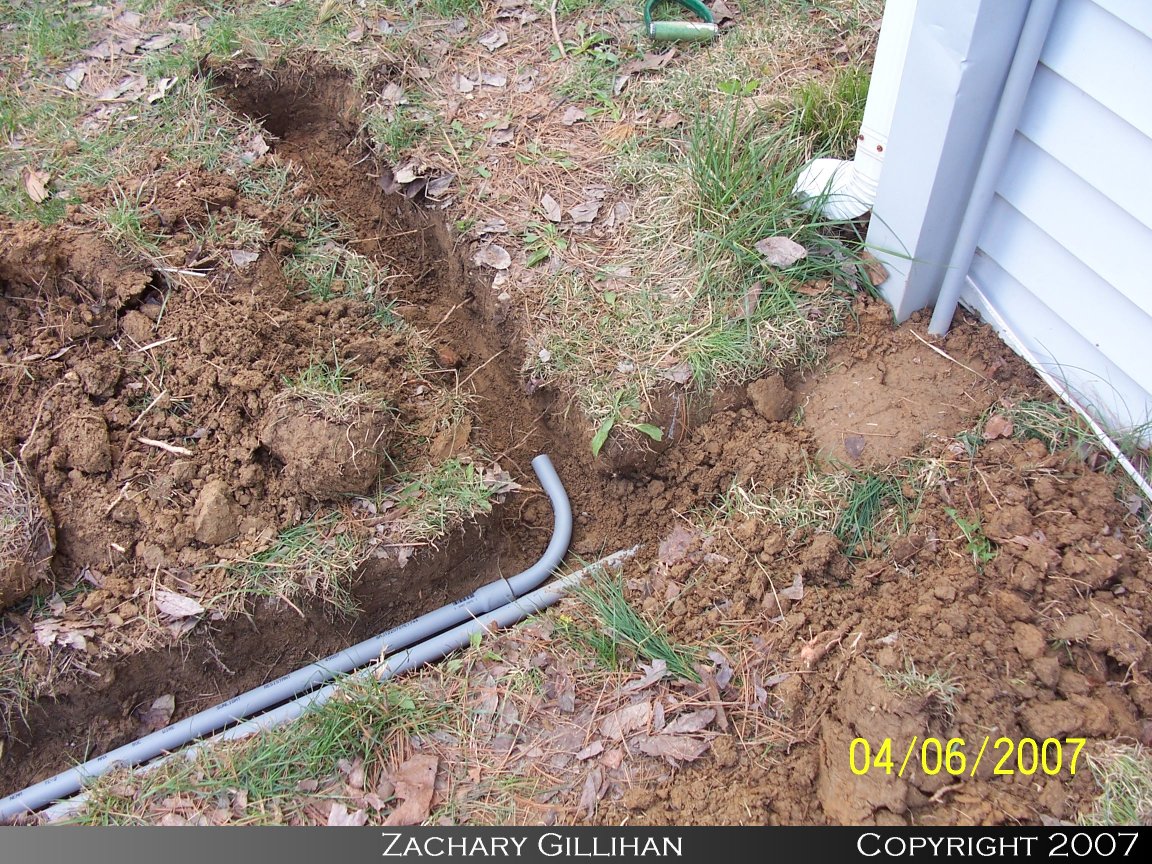

Conduit for the
Dawrf Signal

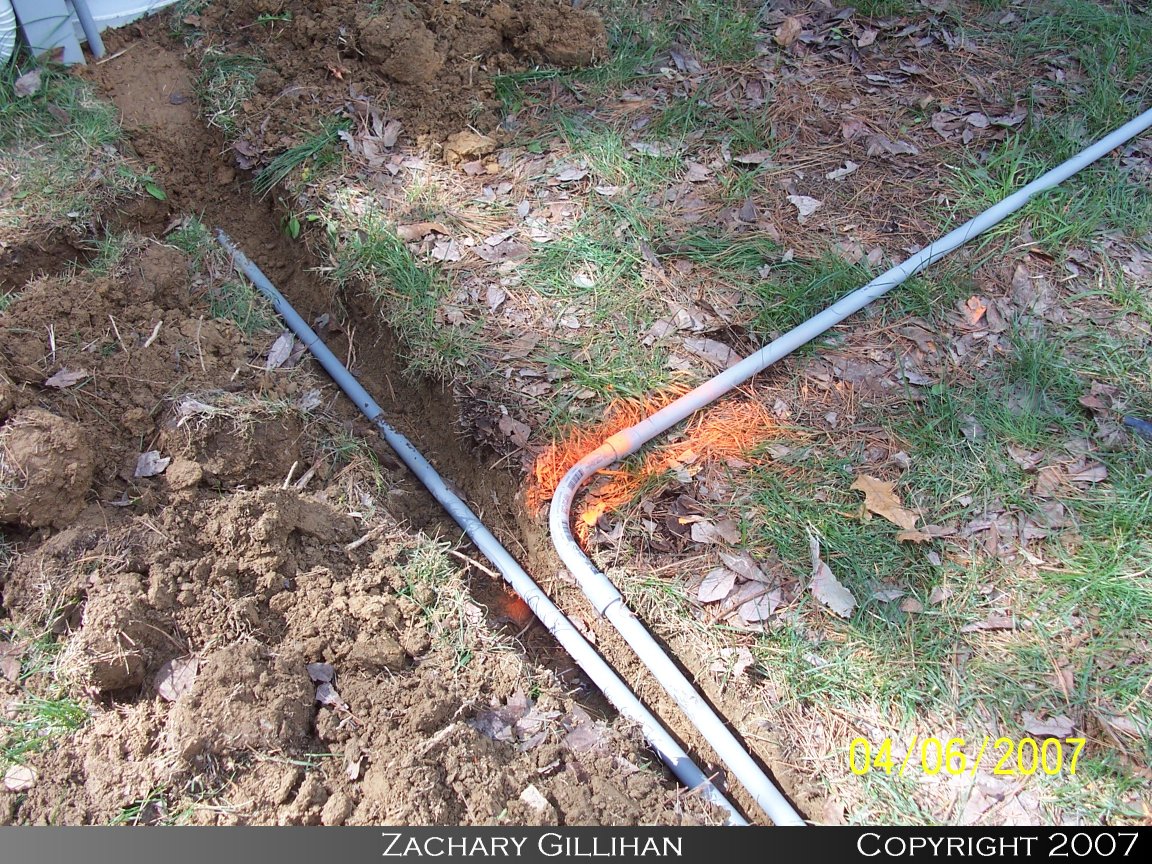

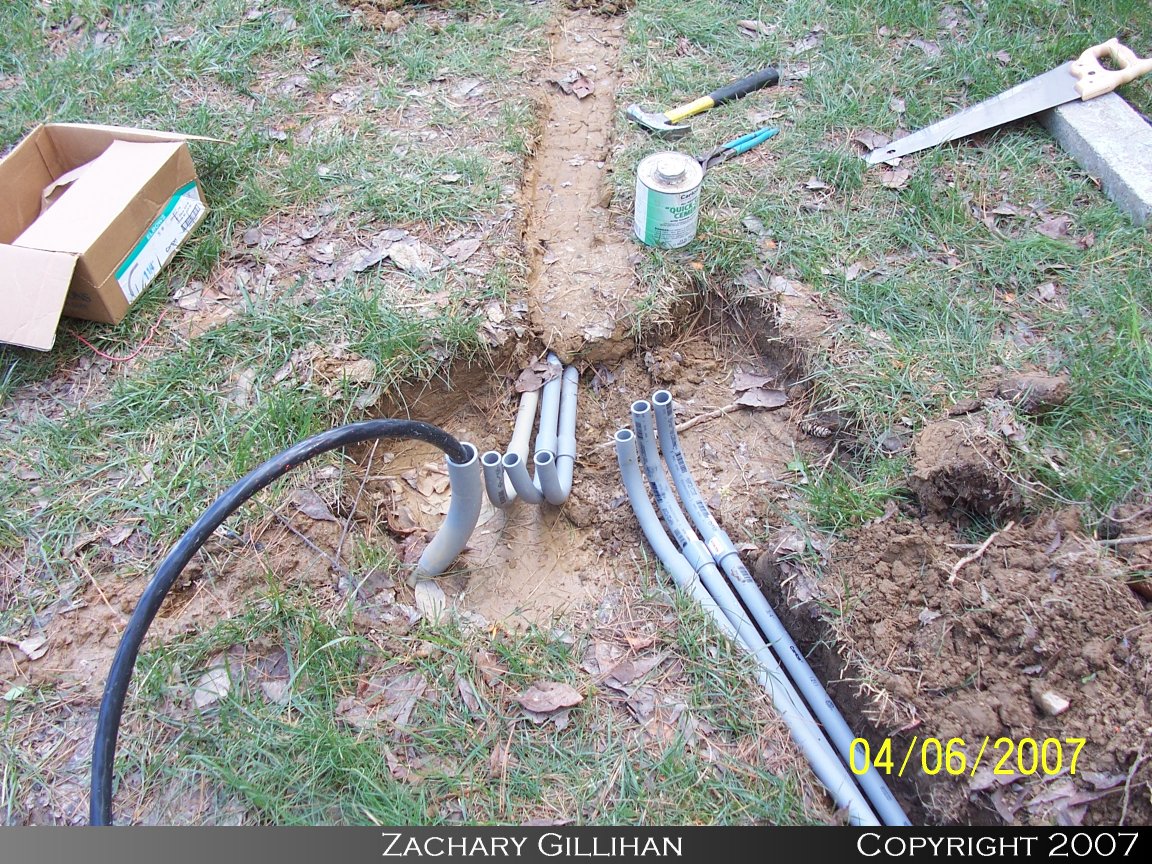

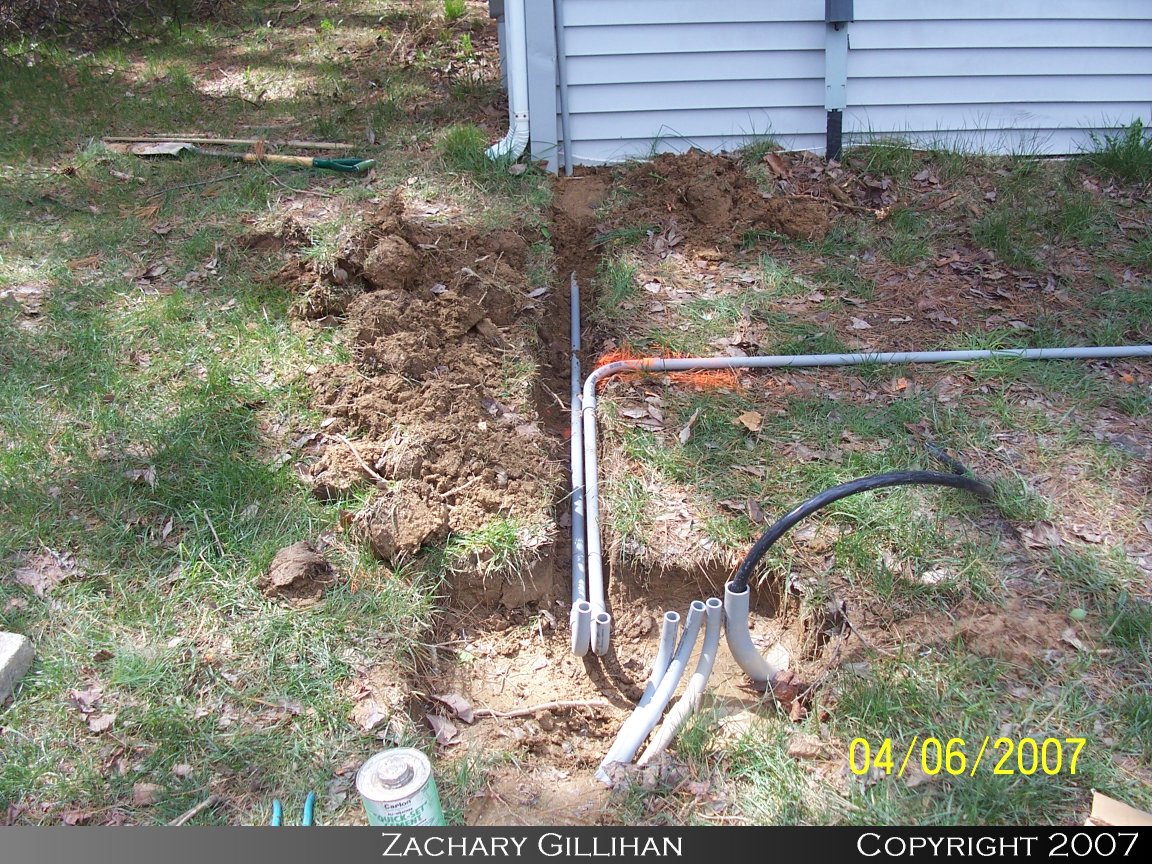

Conduits
Installed

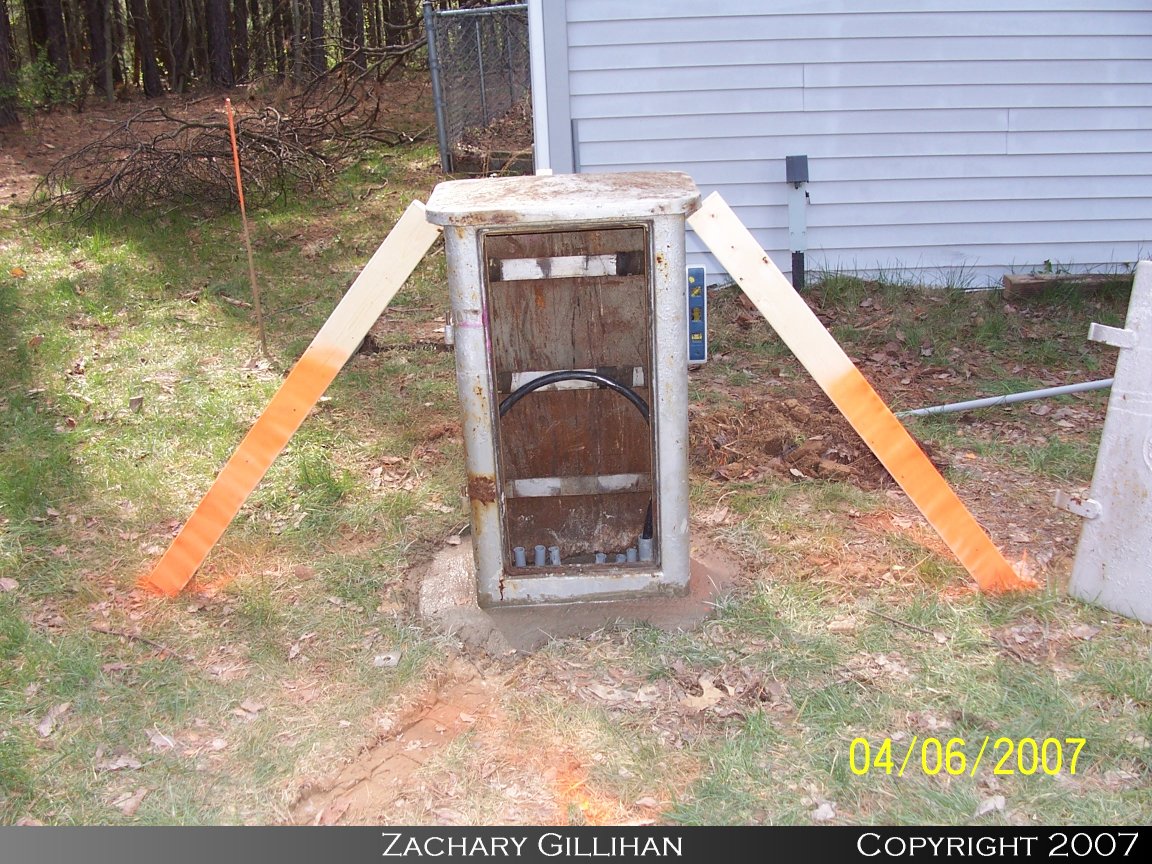

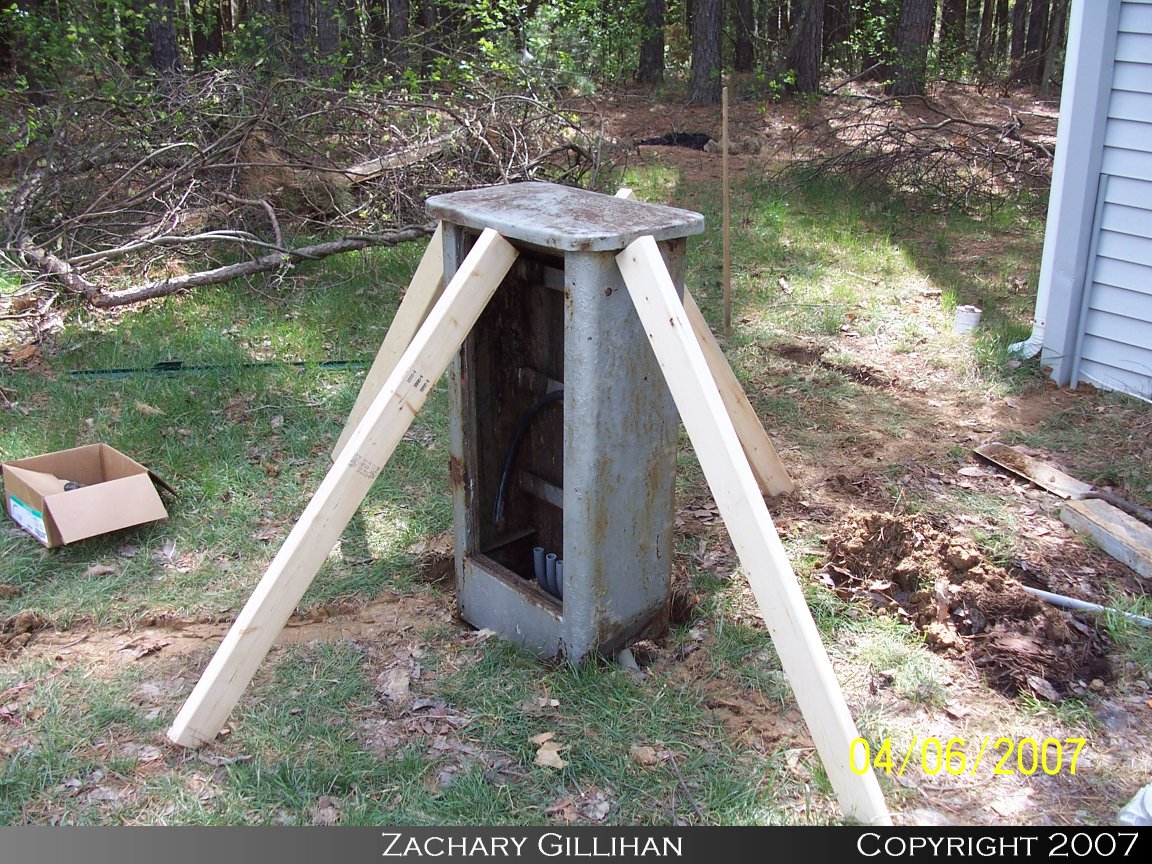

Item #7 in
place
Ready For Concret

Pouring Concret

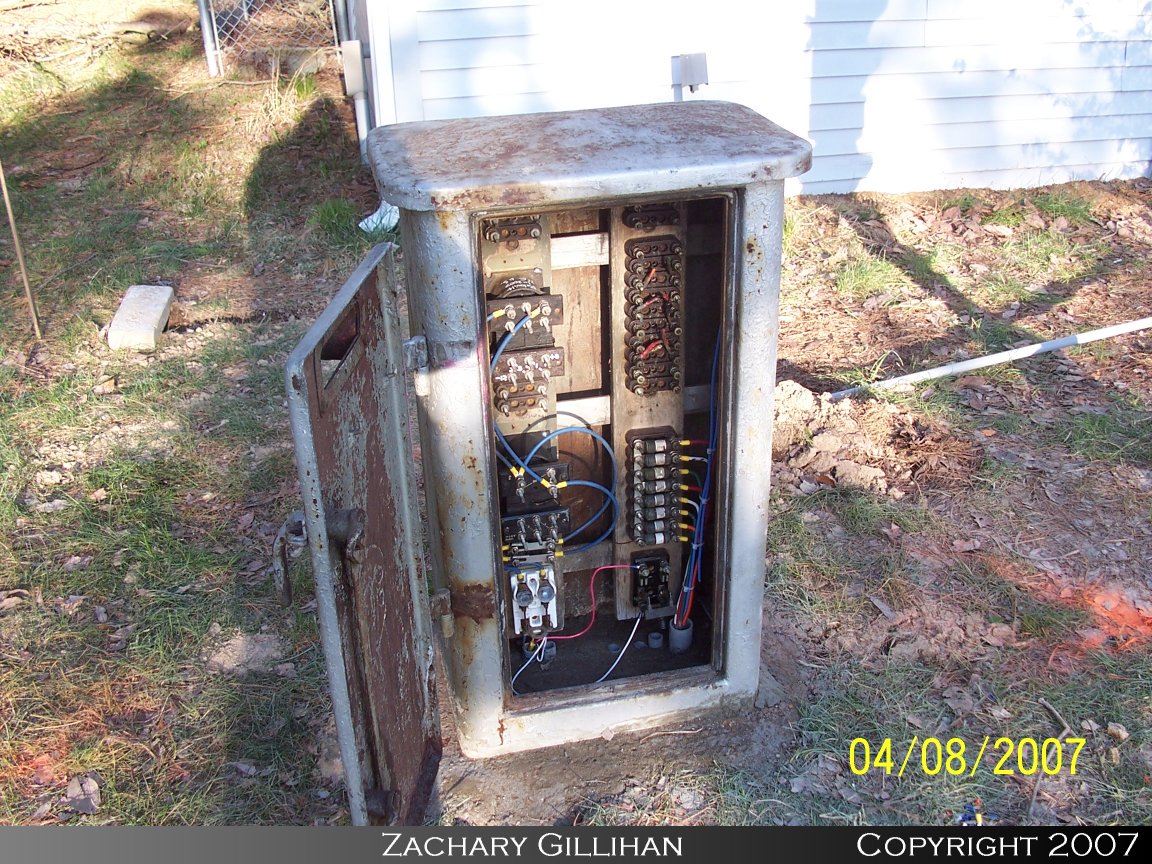

Empty Cabinet
Getting There..
Future Signals

Transformers
Installed
Signal #2

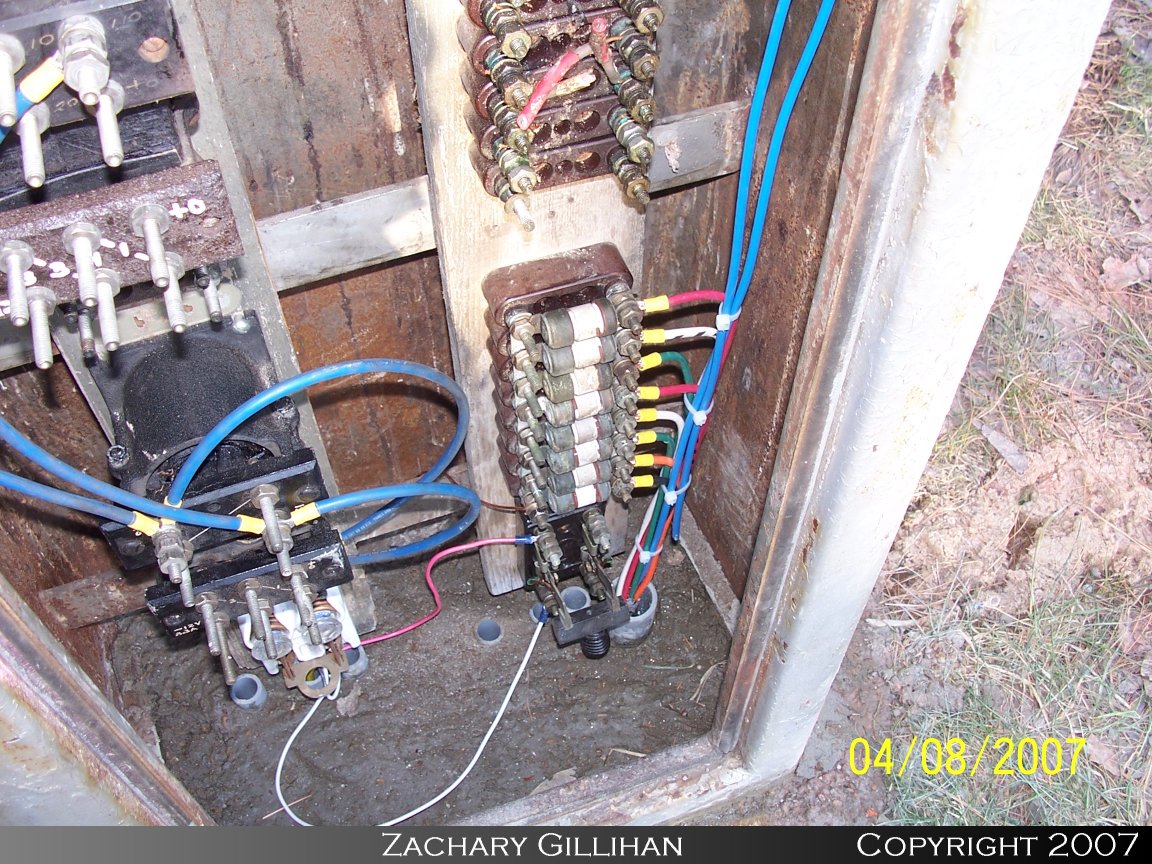

Wiring
AC Split for
Street Light

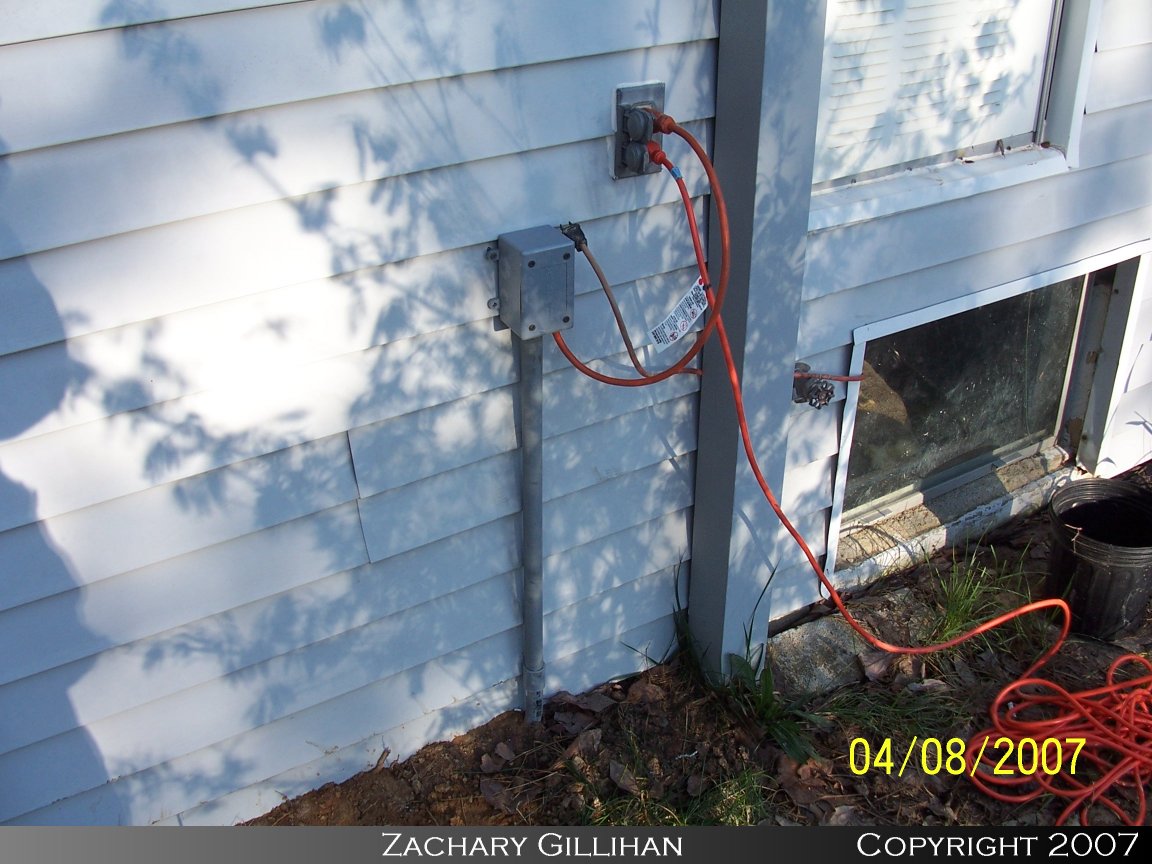

House Connection

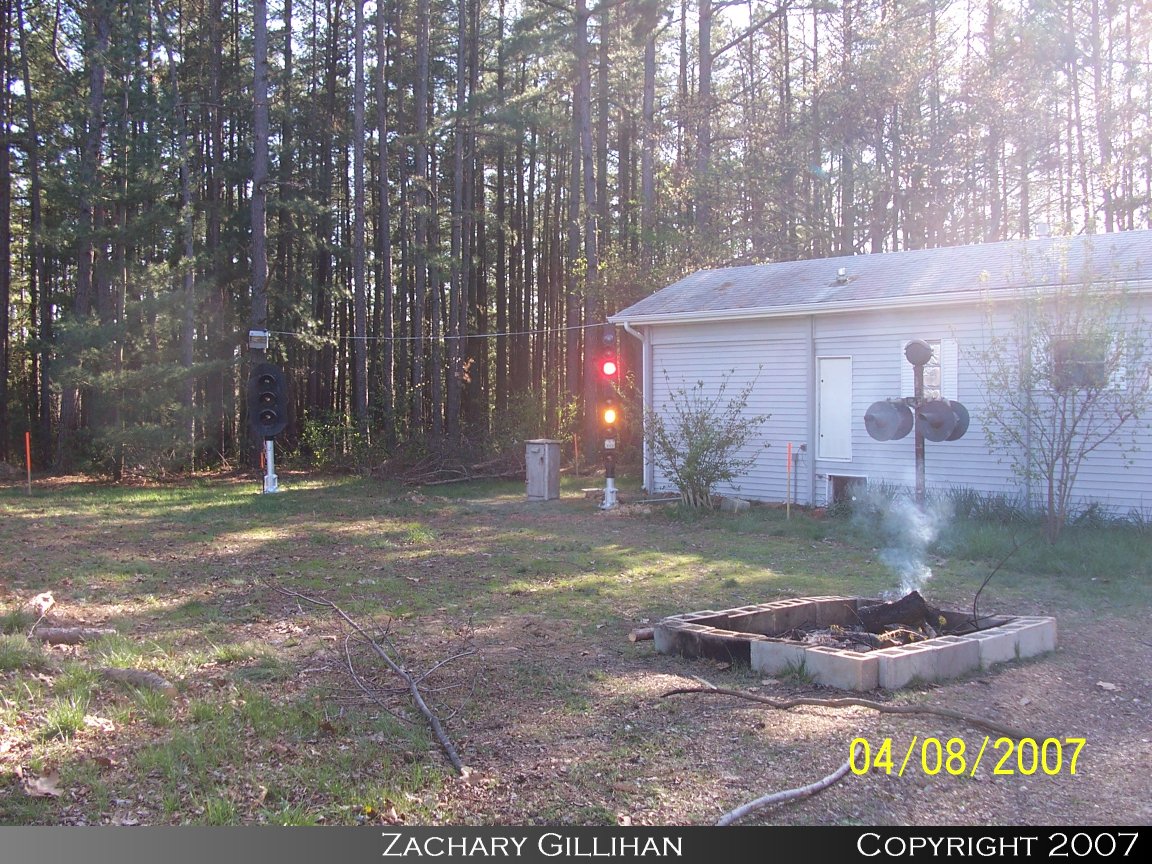

Lit Up
Lit Up

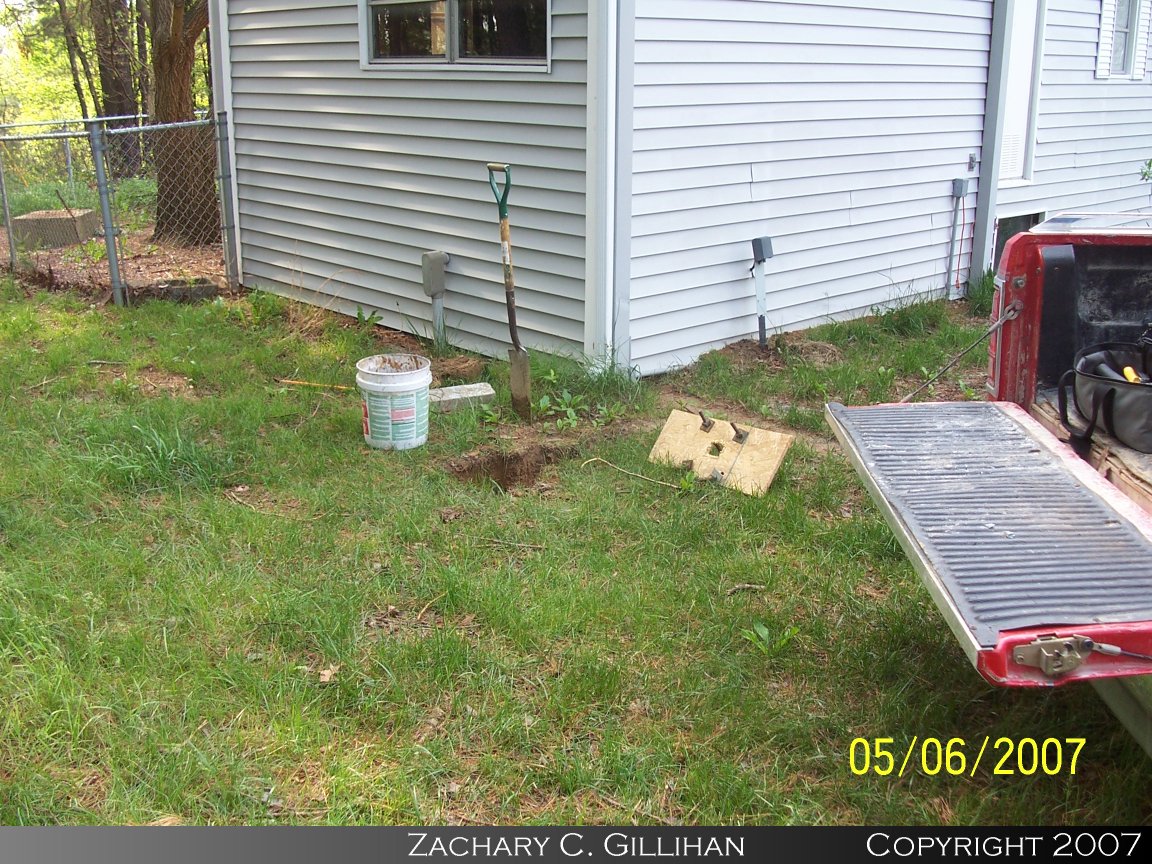

Prep Site
Concerte

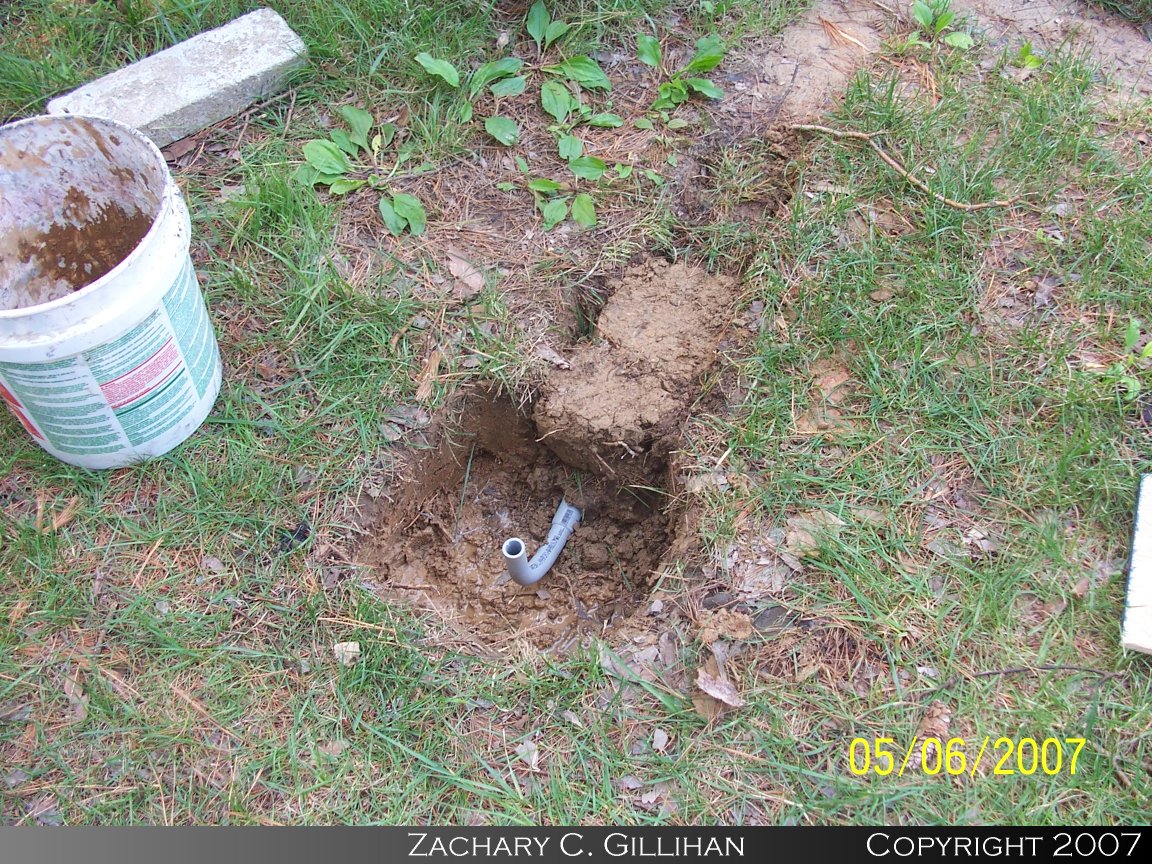

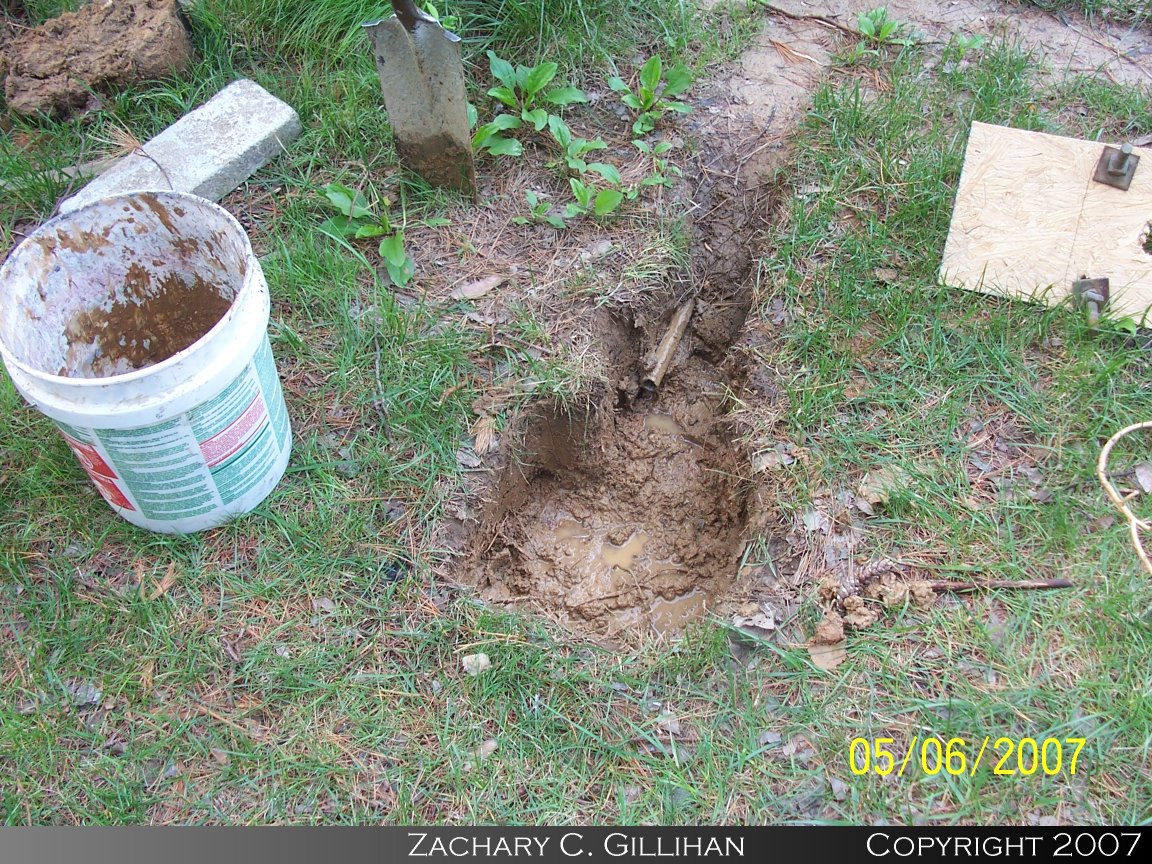

Hole for
Signal #3

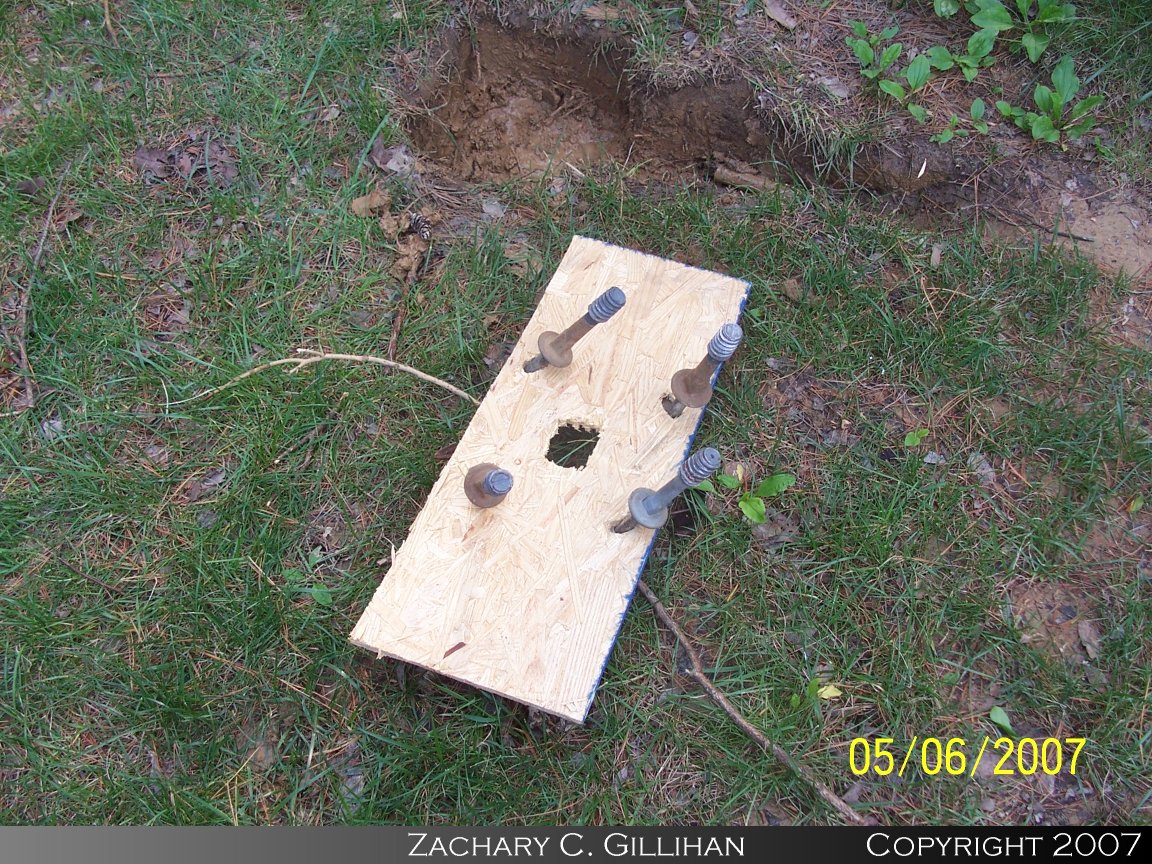

Bolt Pattern
Backside
Ready For
Concerte

Concret for
Signal #3

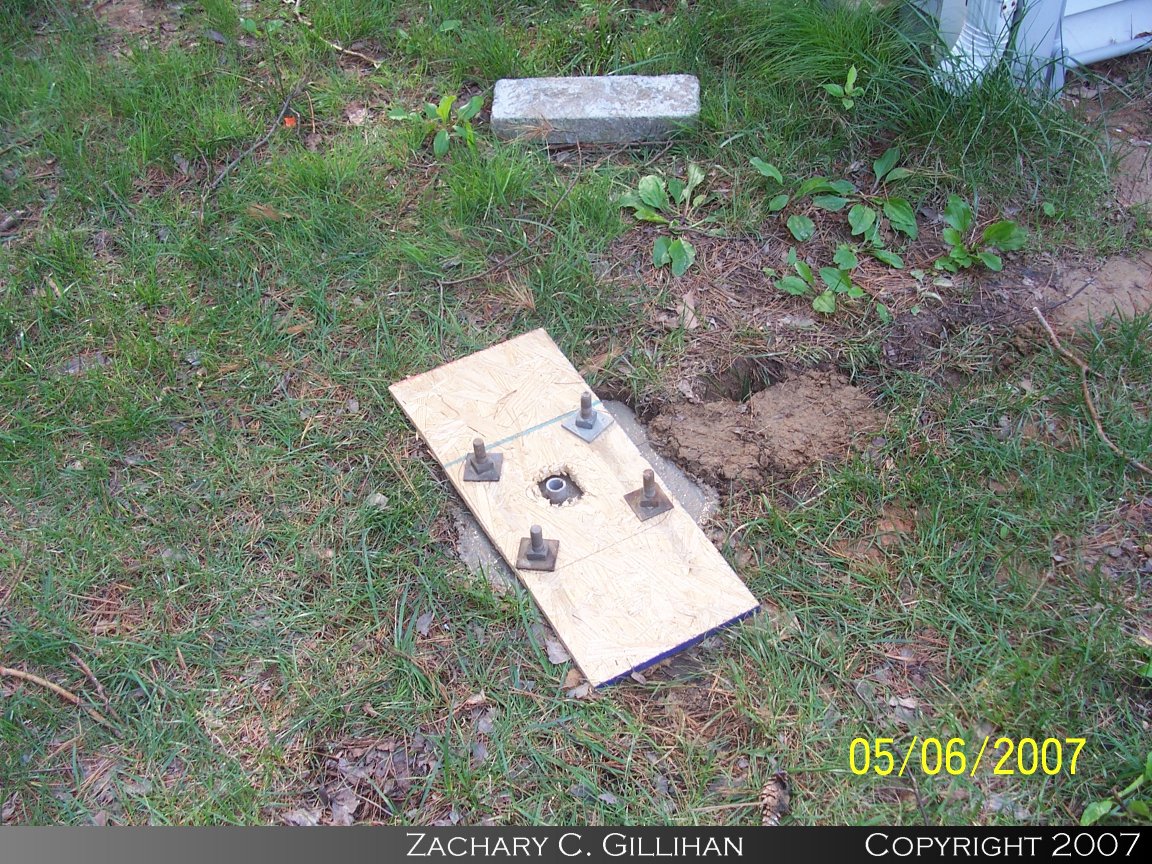

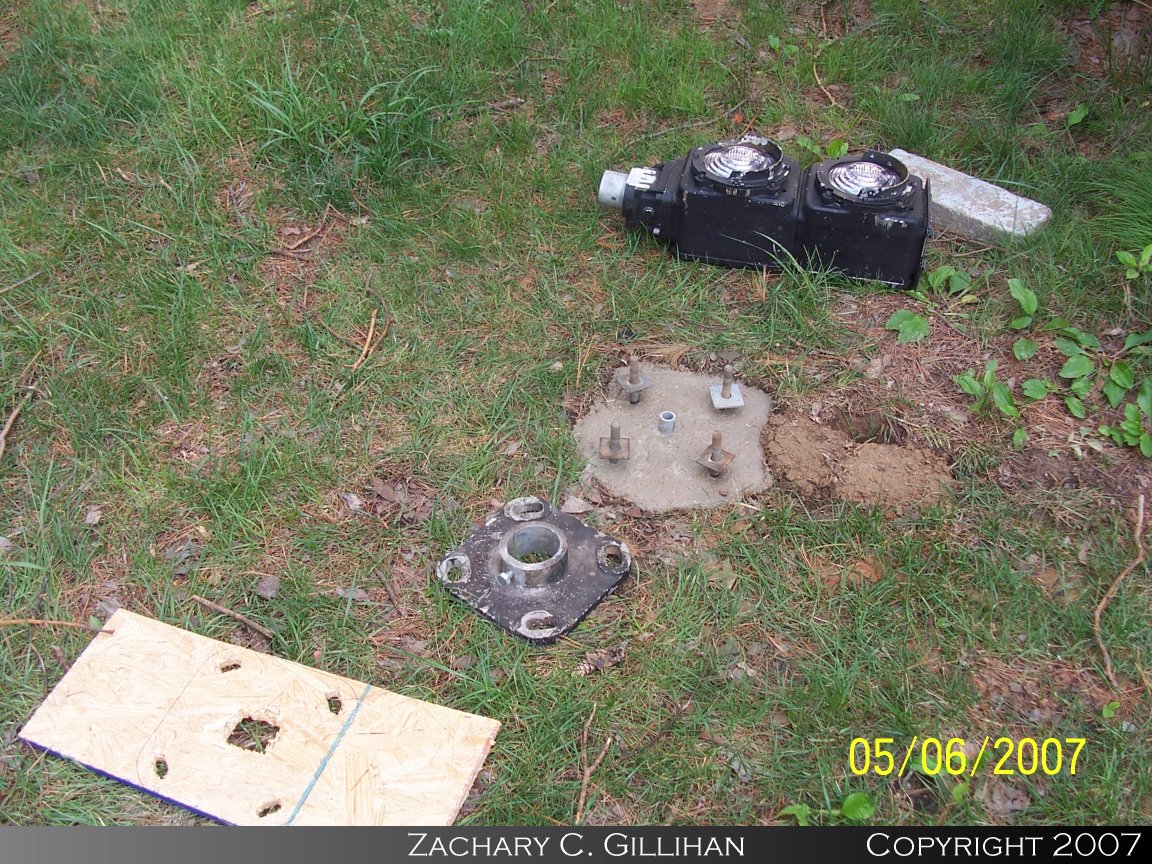

Bolts Set
Pattern Removed

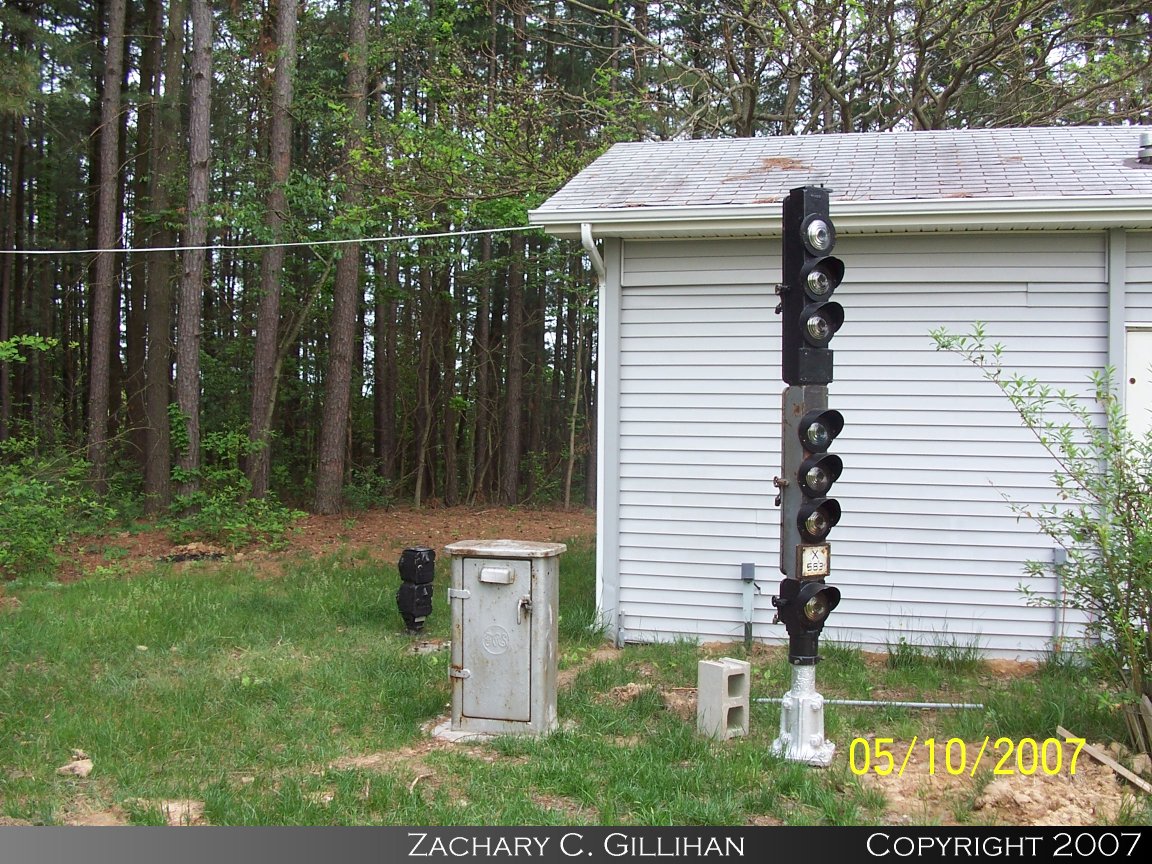

Getting There
