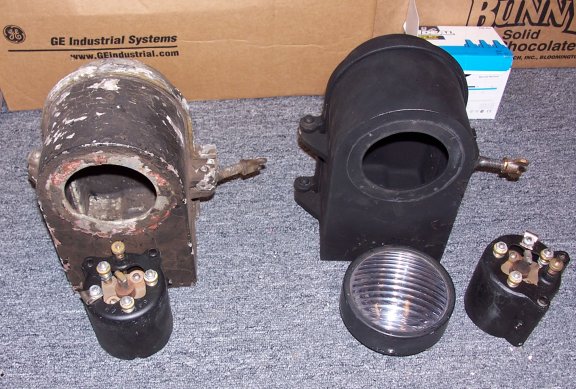

I already bought one marker a few months ago so I bought these two to also go on the top of the dwarf.

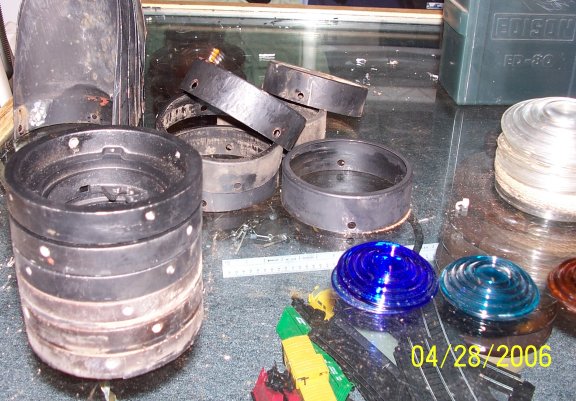

Heres a pile of parts that I have removed and started to clean.

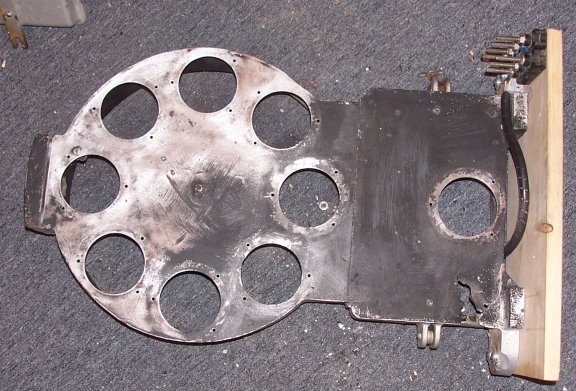

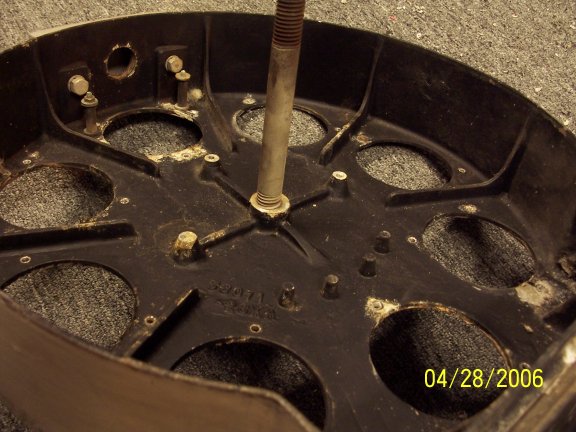

Here is the inside of the signal after all the lights have been removed.
Heres the front of the CPL with about 75% of the sanding done. Not going to do the base for its going to be replaced in a month.
The lunar lens removed.

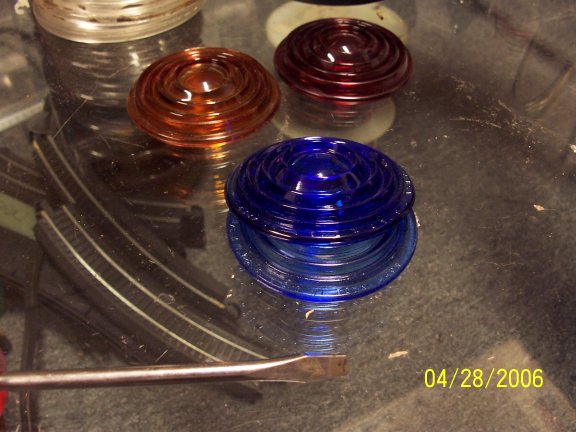

A view of where the small color lens goes.
Here is a shot of where the cup latches to the lens ring.

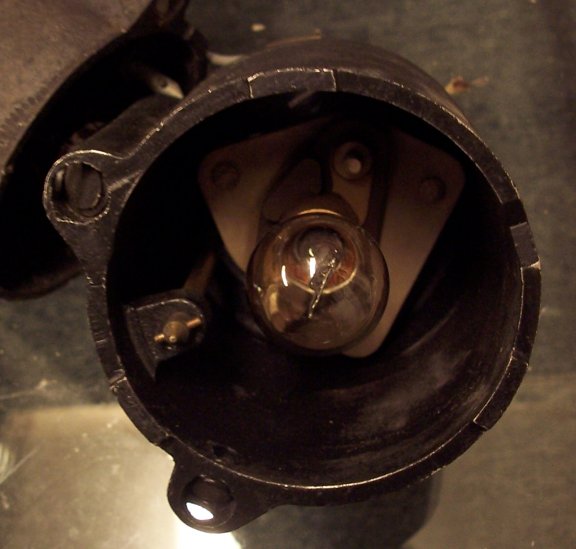

Heres the cup that the light bulb goes into, note the little rod with the doll rod sticking threw the sides. This latches to
the lens ring.
Heres all the parts that was going to be painted, some are on the second coat but more are one the first coat.

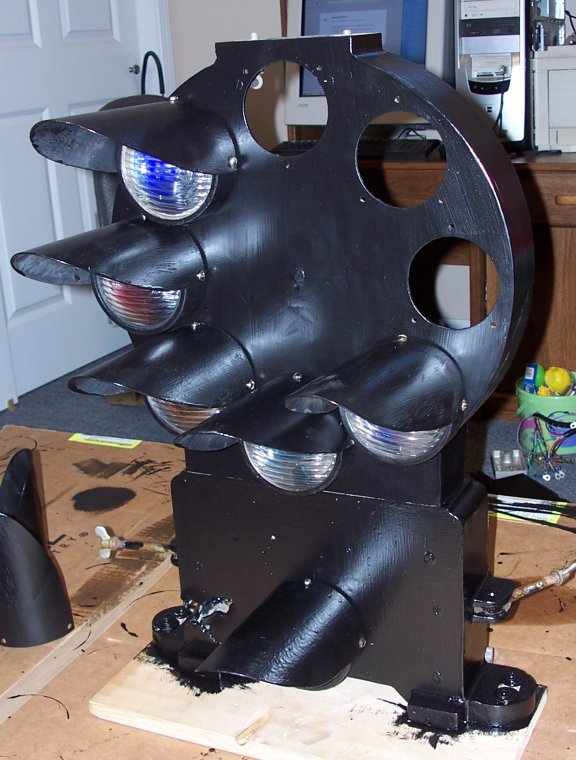

Heres the dwarf starting to come together, half the lights are installed. The rest is still drying.

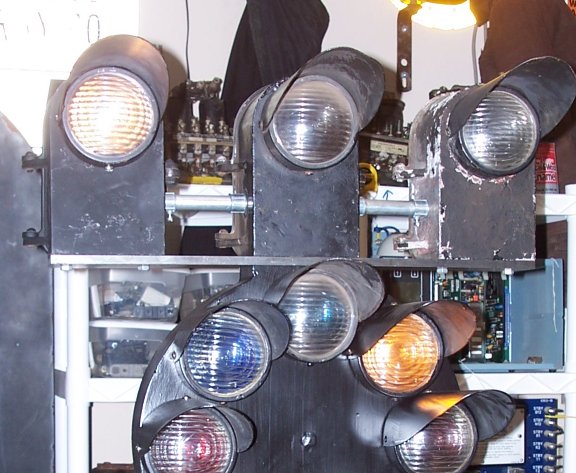

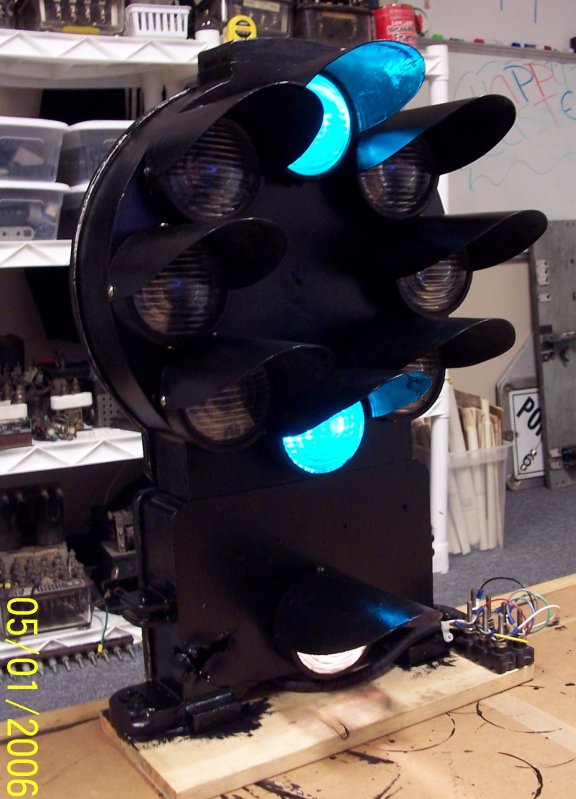

The final product till I get the top markers from ranken then I have to paint them and install them. Green over White.

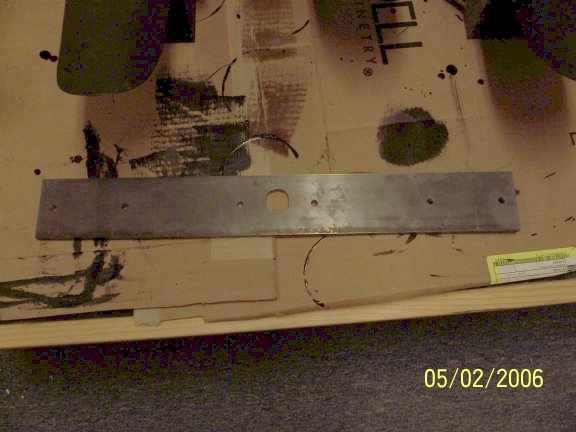

Heres the steel bar Ranken made for the dwarf. Total Cost=$25.00

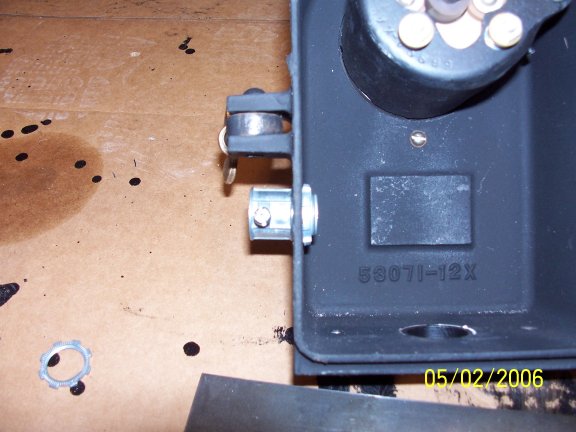

Ranken also drilled the 1/2" holes on the side to install the pipe fitting.
The three attatched to the top of the dwarf, they have not been apinted but I needed to see if the holes line up befor it was painted.
A close up of the top markers.

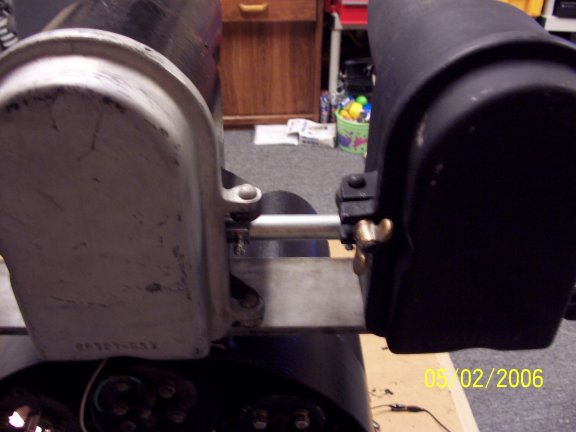

Heres the pipe going to the center marker.
