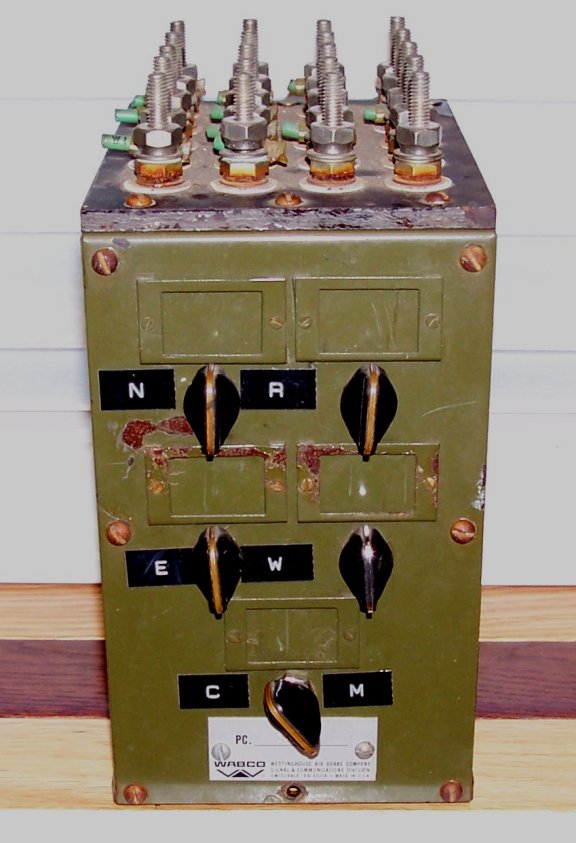

Here is the front of the box with the buttom lever still installed. Looks like when the railroad used it, they only used the left side
of the control box. |
![]() |

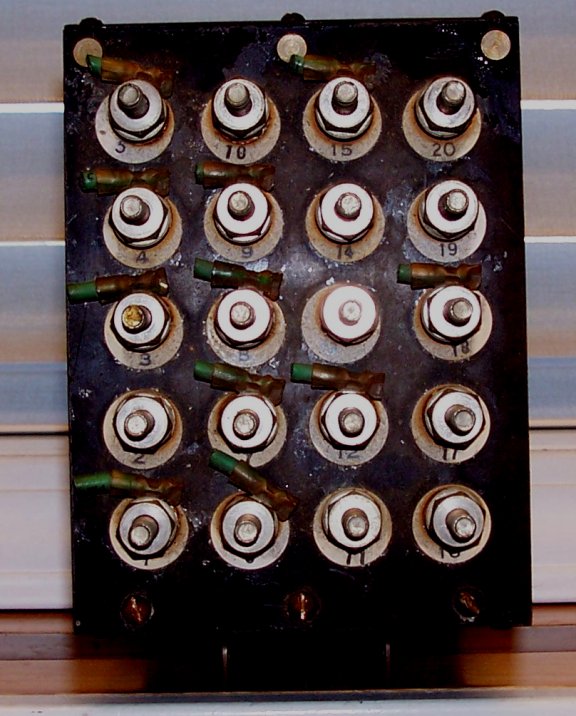

Here is the top of the box with all the wire connections, these have been moved and some have been changed. |
![]() |

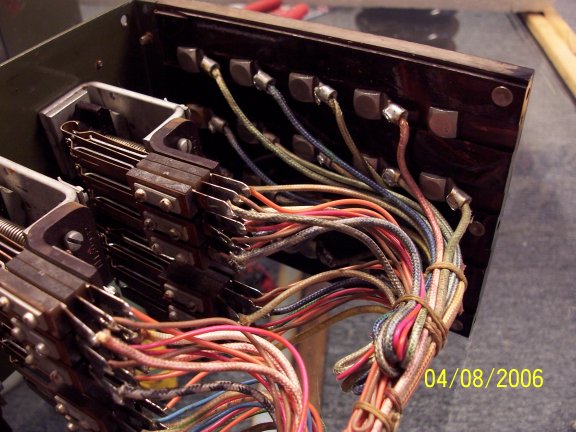

Here is the wires and connections on the inside of the box. I have since removed all of them and resoldered them to different connections
and different levers. |
![]() |
Here is a close up of the wires that went to one of the top levers. |
![]() |

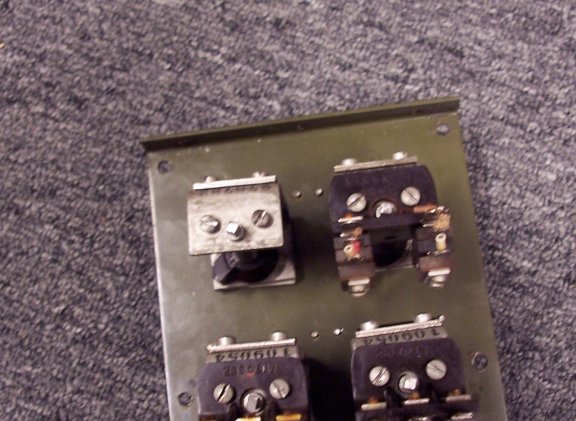

Here is the back of the two lever without the contacts, this is part of the process of installing the levers. |
![]() |

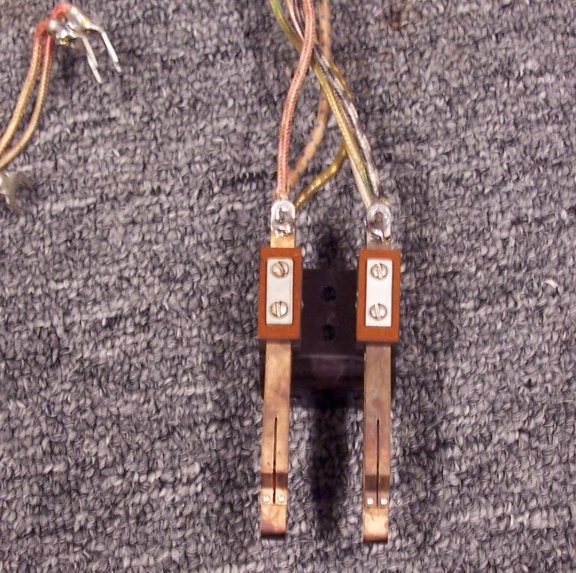

Here is the contacts that goes on the back of the lever, for switch levers we removed the center group of contacts. |
![]() |
After removing the wires and cleaning the contacts, I have started to solder all the new wires. |
![]() |

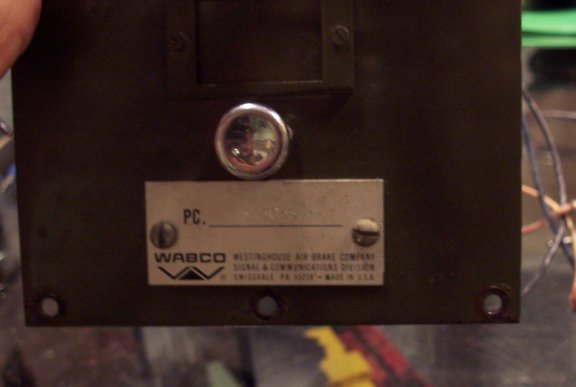

Here is the name plate and the push button. |
![]() |

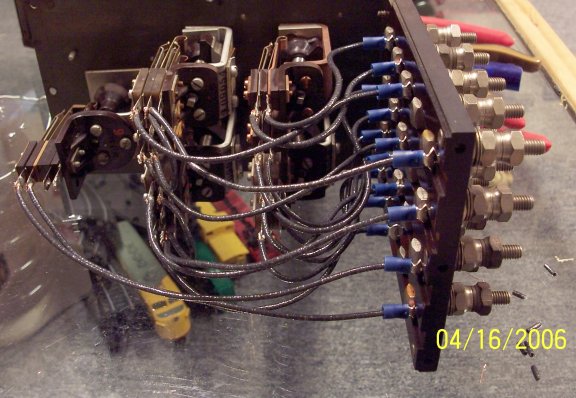

Heres the box finished and ready to go. The wires are connected to the correct top terminals and all pings out well. |
